Vishay Type N-Channel MOSFET, 14 A, 500 V Enhancement, 3-Pin TO-247 IRFP450PBF
- RS庫存編號:
- 281-6030
- 製造零件編號:
- IRFP450PBF
- 製造商:
- Vishay

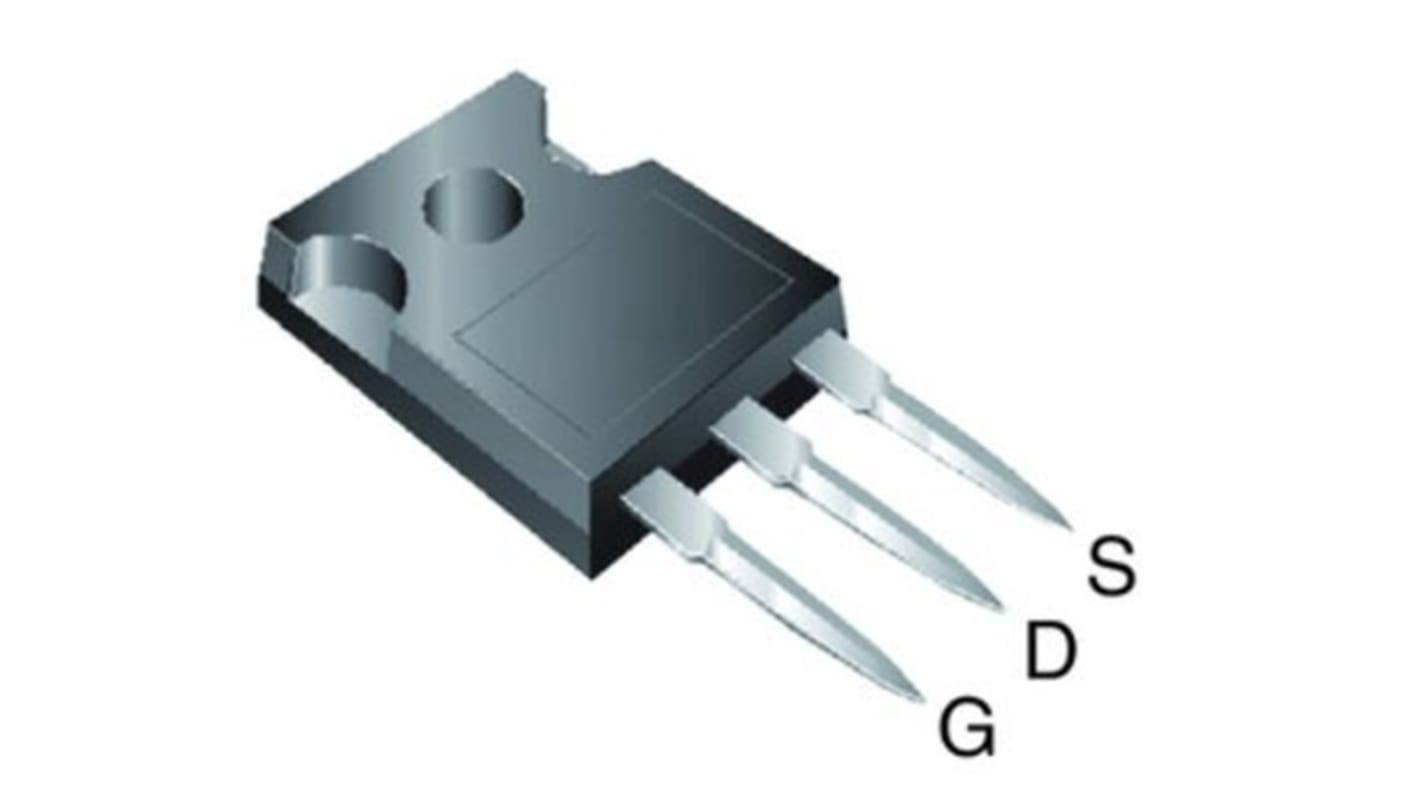

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 包，共 5 件）*
TWD631.00
(不含稅)
TWD662.55
(含稅)
訂單超過 $1,300.00 免費送貨
最後的 RS 庫存
- 最終 2,500 個，準備發貨
單位 | 每單位 | 每包* |
|---|---|---|
| 5 - 95 | TWD126.20 | TWD631.00 |
| 100 - 495 | TWD123.60 | TWD618.00 |
| 500 + | TWD121.20 | TWD606.00 |
* 參考價格
- RS庫存編號:
- 281-6030
- 製造零件編號:
- IRFP450PBF
- 製造商:
- Vishay
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Vishay | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 14A | |
| Maximum Drain Source Voltage Vds | 500V | |
| Package Type | TO-247 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 0.4Ω | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | ±20 V | |
| Typical Gate Charge Qg @ Vgs | 150nC | |
| Maximum Power Dissipation Pd | 190W | |
| Forward Voltage Vf | 1.4V | |
| Maximum Operating Temperature | 150°C | |
| Width | 15.29 mm | |
| Length | 14.2mm | |
| Standards/Approvals | No | |
| Distrelec Product Id | 304-42-106 | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 Vishay | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 14A | ||
Maximum Drain Source Voltage Vds 500V | ||
Package Type TO-247 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 0.4Ω | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs ±20 V | ||
Typical Gate Charge Qg @ Vgs 150nC | ||
Maximum Power Dissipation Pd 190W | ||
Forward Voltage Vf 1.4V | ||
Maximum Operating Temperature 150°C | ||
Width 15.29 mm | ||
Length 14.2mm | ||
Standards/Approvals No | ||
Distrelec Product Id 304-42-106 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Vishay power MOSFETs offer fast switching, rugged design and low on-resistance. It is cost-effective.
Repetitive avalanche rated
Fast switching
Ease of paralleling
