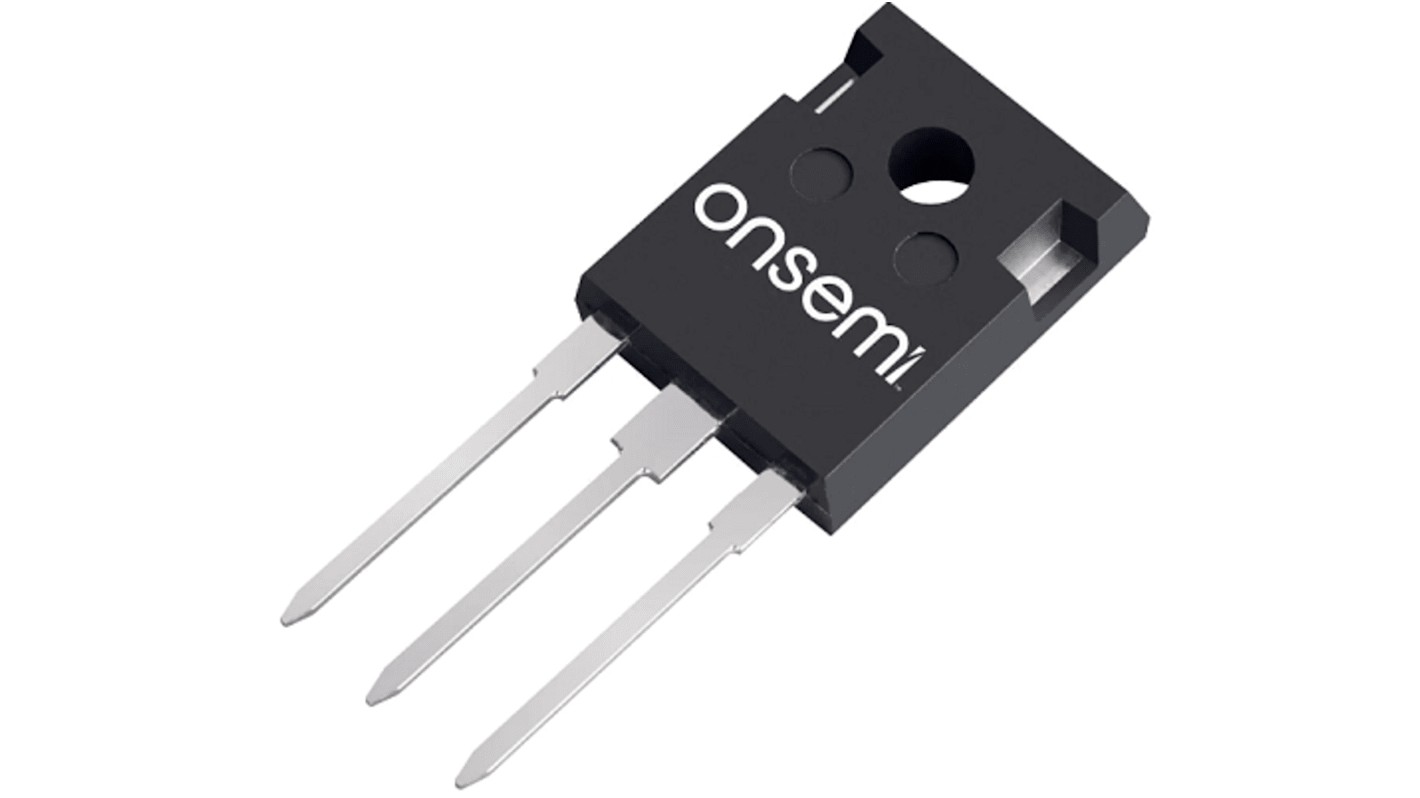

onsemi NTH Type N-Channel MOSFET, 58 A, 1200 V Enhancement, 3-Pin TO-247 NTHL025N065SC1
- RS庫存編號:
- 248-5818
- 製造零件編號:
- NTHL025N065SC1
- 製造商:
- onsemi
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 件）*
TWD594.00
(不含稅)
TWD623.70
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 340 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 1 | TWD594.00 |
| 2 - 4 | TWD564.00 |
| 5 - 9 | TWD536.00 |
| 10 - 14 | TWD510.00 |
| 15 + | TWD484.00 |
* 參考價格
- RS庫存編號:
- 248-5818
- 製造零件編號:
- NTHL025N065SC1
- 製造商:
- onsemi
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | onsemi | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 58A | |
| Maximum Drain Source Voltage Vds | 1200V | |
| Series | NTH | |
| Package Type | TO-247 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 22mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | 22 V | |
| Typical Gate Charge Qg @ Vgs | 164nC | |
| Forward Voltage Vf | 1.2V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 117W | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| 選取全部 | ||
|---|---|---|
品牌 onsemi | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 58A | ||
Maximum Drain Source Voltage Vds 1200V | ||
Series NTH | ||
Package Type TO-247 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 22mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs 22 V | ||
Typical Gate Charge Qg @ Vgs 164nC | ||
Forward Voltage Vf 1.2V | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 117W | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
Silicon Carbide (SiC) MOSFET - EliteSiC, 19 mohm, 650 V, M2, TO-247-3L
The ON Semiconductor Silicon Carbide (SiC) MOSFET is a N channel MOSFET with 650 V drain to source voltage and 348 W power dissipation, TO247-3L packaging and this device is Halide free and RoHS compliant with exemption 7a, Pb−Free 2LI.
Ultra Low Gate Charge 164 nC
Low capacitance 278 pF
100 percent avalanche tested
Temperature 175°C
RDS(on) 19 mohm
