Infineon HEXFET Type N-Channel MOSFET, 50 A, 200 V Enhancement, 3-Pin TO-247

RS庫存編號:: 919-5019
製造零件編號:: IRFP260NPBF
製造商:: Infineon

Infineon HEXFET Type N-Channel MOSFET, 50 A, 200 V Enhancement, 3-Pin TO-247

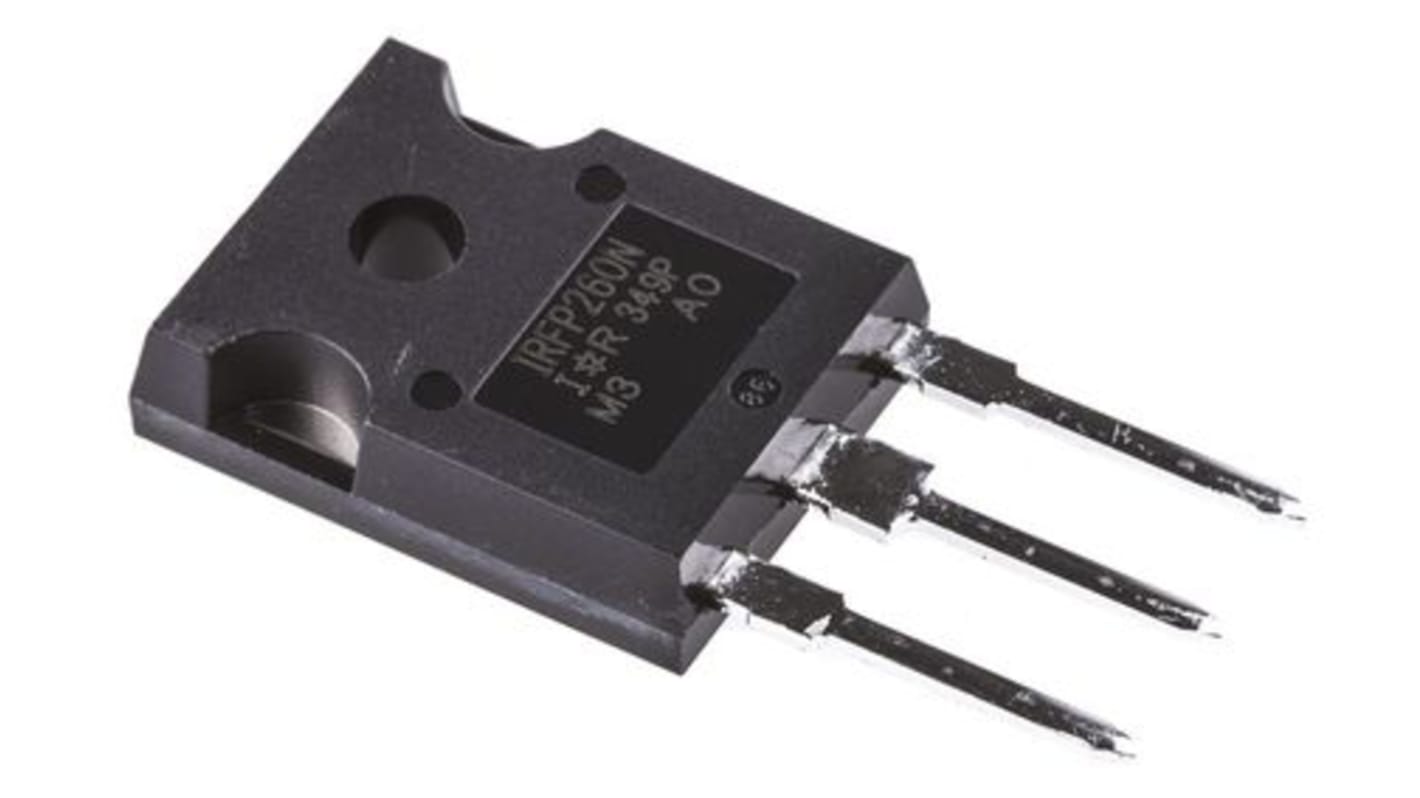

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 管，共 25 件）*

TWD1,937.50

(不含稅)

TWD2,034.50

訂單超過 $1,300.00 免費送貨

有庫存

200 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每管*
25 - 25	TWD77.50	TWD1,937.50
50 - 75	TWD75.80	TWD1,895.00
100 +	TWD70.40	TWD1,760.00

* 參考價格

RS庫存編號:: 919-5019
製造零件編號:: IRFP260NPBF
製造商:: Infineon

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Infineon
	Product Type	MOSFET
	Channel Type	Type N
	Maximum Continuous Drain Current Id	50A
	Maximum Drain Source Voltage Vds	200V
	Series	HEXFET
	Package Type	TO-247
	Mount Type	Through Hole
	Pin Count	3
	Maximum Drain Source Resistance Rds	40mΩ
	Channel Mode	Enhancement
	Forward Voltage Vf	1.3V
	Minimum Operating Temperature	-55°C
	Typical Gate Charge Qg @ Vgs	234nC
	Maximum Gate Source Voltage Vgs	20 V
	Maximum Power Dissipation Pd	300W
	Maximum Operating Temperature	175°C
	Height	20.3mm
	Standards/Approvals	No
	Width	5.3 mm
	Length	15.9mm
	Automotive Standard	No

	選取全部
	品牌 Infineon
	Product Type MOSFET
	Channel Type Type N
	Maximum Continuous Drain Current Id 50A
	Maximum Drain Source Voltage Vds 200V
	Series HEXFET
	Package Type TO-247
	Mount Type Through Hole
	Pin Count 3
	Maximum Drain Source Resistance Rds 40mΩ
	Channel Mode Enhancement
	Forward Voltage Vf 1.3V
	Minimum Operating Temperature -55°C
	Typical Gate Charge Qg @ Vgs 234nC
	Maximum Gate Source Voltage Vgs 20 V
	Maximum Power Dissipation Pd 300W
	Maximum Operating Temperature 175°C
	Height 20.3mm
	Standards/Approvals No
	Width 5.3 mm
	Length 15.9mm
	Automotive Standard No

Infineon HEXFET Series MOSFET, 50A Maximum Continuous Drain Current, 300W Maximum Power Dissipation - IRFP260NPBF

This MOSFET is intended for high-power applications, delivering efficiency and reliability across various electronic systems. With its enhancement mode design and robust current handling capabilities, it plays a crucial role in optimising circuit performance while effectively managing thermal dissipation.

Features & Benefits

• Supports continuous drain currents up to 50A for strong performance

• Operates efficiently with a maximum drain-source voltage of 200V

• Enhancement mode design offers improved control and versatility

• Low Rds(on) of 40mΩ reduces energy losses

• Designed for through-hole mounting, facilitating easy installation

Applications

• Utilised in power supply circuits for managing high currents

• Suitable for automotive requiring durable electronic components

• Applied in industrial equipment for effective power control

• Commonly found in renewable energy systems to enhance efficiency

What is the maximum power dissipation for this component?

The power dissipation can reach up to 300W, ensuring efficient performance in high-load conditions.

How does the low Rds(on) benefit circuit efficiency?

The low Rds(on) of 40mΩ significantly reduces conduction losses, enhancing overall efficiency and minimising heat generation during operation.

What are the advantages of using this MOSFET in power applications?

This MOSFET provides high continuous drain current and operates effectively across a wide temperature range, making it suitable for power applications.

Is it easy to install with other components in a circuit?

The through-hole mounting type simplifies integration into various circuit designs, allowing for straightforward assembly with existing components.

How does the enhance mode design affect performance?

The enhancement mode design ensures that the device conducts only when sufficient gate voltage is applied, improving switching efficiency and reducing unwanted current flow during inactive periods.
