Toshiba TPHR8504PL Type N-Channel MOSFET, 150 A, 40 V Enhancement, 8-Pin SOP
- RS庫存編號:
- 206-9796
- 製造零件編號:
- TPHR8504PL,L1Q(M
- 製造商:
- Toshiba

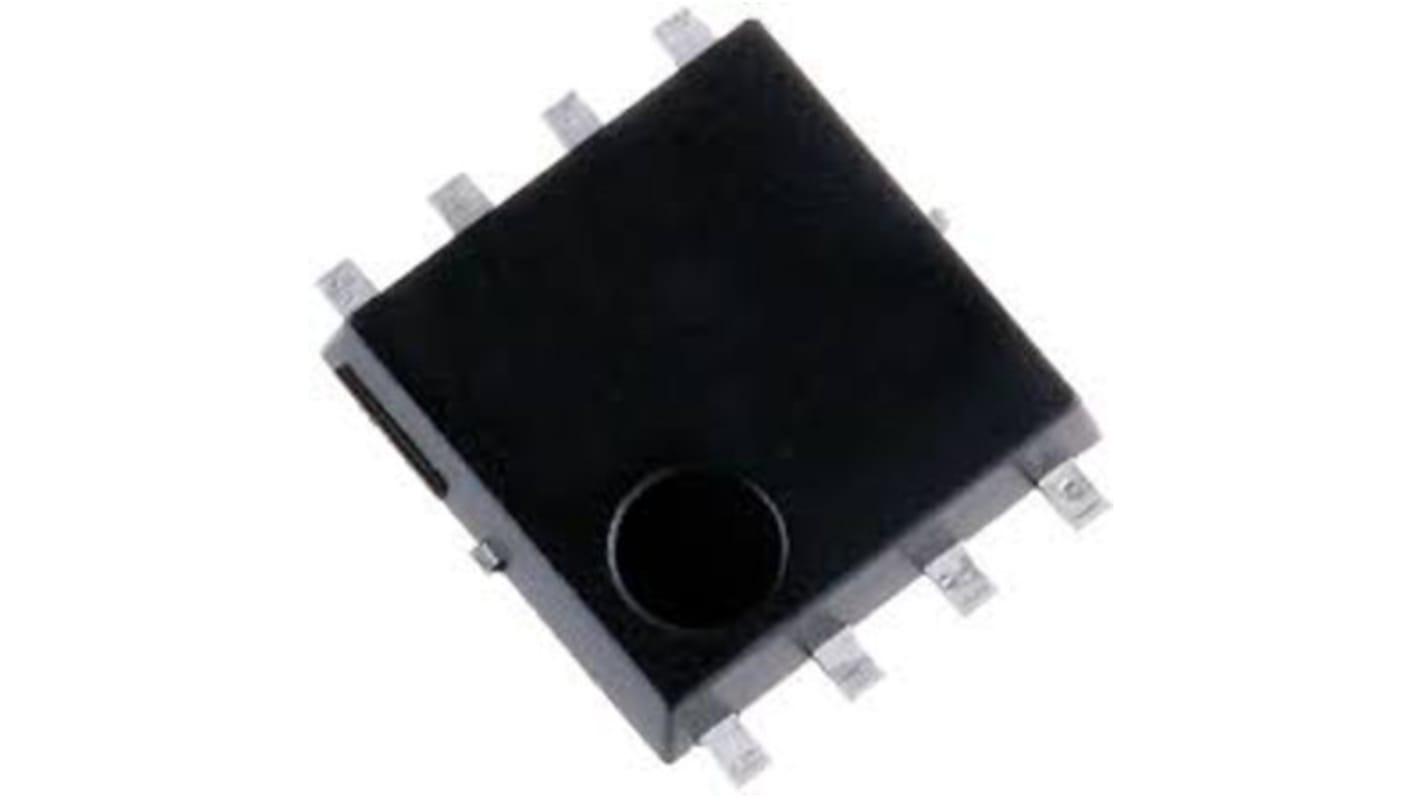

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 卷，共 5000 件）*
TWD313,500.00
(不含稅)
TWD329,200.00
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 從 2026年6月30日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每卷* |
|---|---|---|
| 5000 - 20000 | TWD62.70 | TWD313,500.00 |
| 25000 + | TWD56.40 | TWD282,000.00 |
* 參考價格
- RS庫存編號:
- 206-9796
- 製造零件編號:
- TPHR8504PL,L1Q(M
- 製造商:
- Toshiba
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Toshiba | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 150A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Package Type | SOP | |
| Series | TPHR8504PL | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 2.4Ω | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 170W | |
| Typical Gate Charge Qg @ Vgs | 103nC | |
| Forward Voltage Vf | -1.2V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Length | 6mm | |
| Height | 0.9mm | |
| Width | 5 mm | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 Toshiba | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 150A | ||
Maximum Drain Source Voltage Vds 40V | ||
Package Type SOP | ||
Series TPHR8504PL | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 2.4Ω | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 170W | ||
Typical Gate Charge Qg @ Vgs 103nC | ||
Forward Voltage Vf -1.2V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Length 6mm | ||
Height 0.9mm | ||
Width 5 mm | ||
Automotive Standard No | ||
The Toshiba silicon N-channel MOSFET having high-speed switching properties. It is mainly used in high-efficiency DC-DC converters, switching voltage regulators and motor drivers.
Low drain-source on-resistance 0.7 m?
Storage temperature -55 to 175°C
