Toshiba Dual 2 Type N-Channel MOSFET, 300 mA, 60 V Enhancement, 6-Pin SOT-363
- RS庫存編號:
- 171-2410
- 製造零件編號:
- SSM6N7002KFU
- 製造商:
- Toshiba

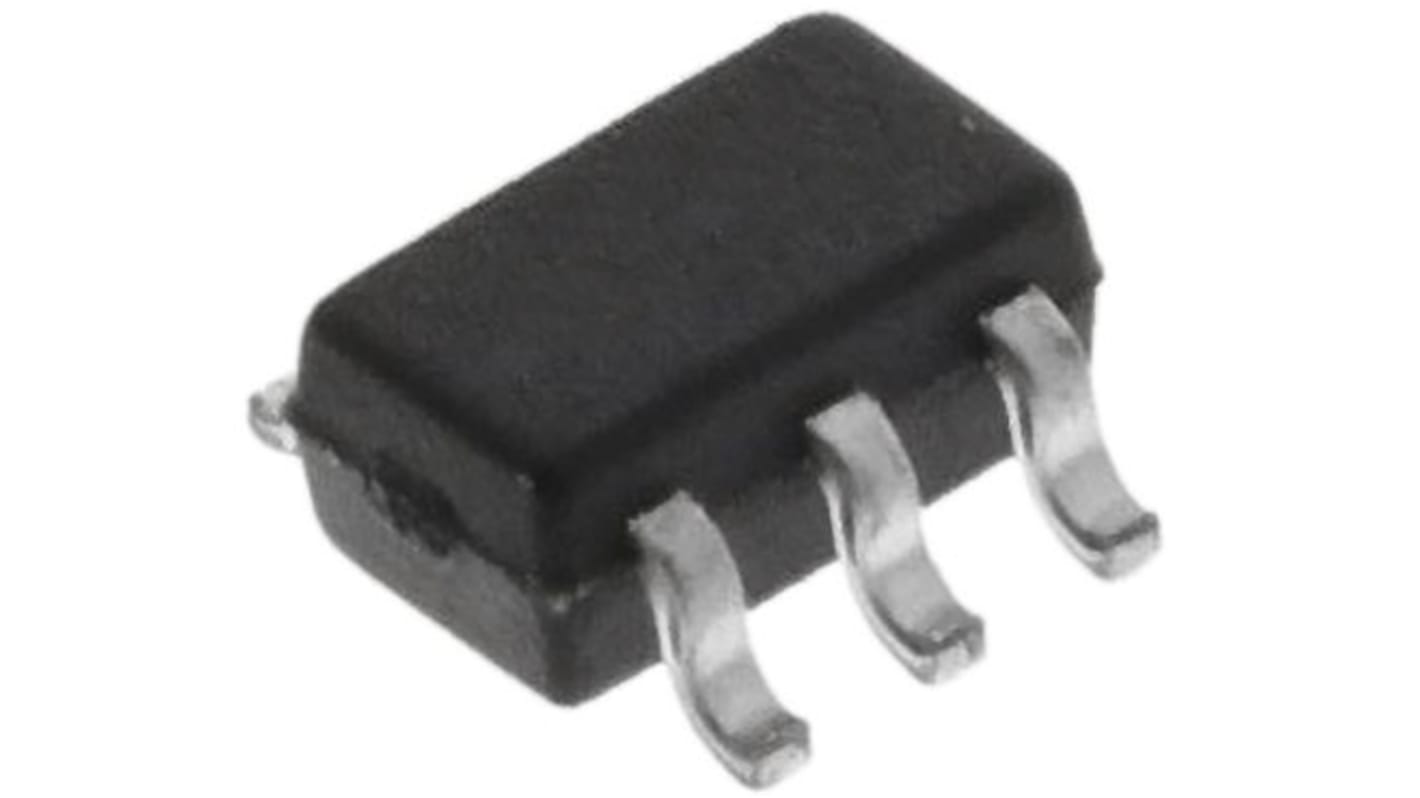

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 卷，共 3000 件）*
TWD4,500.00
(不含稅)
TWD4,740.00
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 從 2026年5月05日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每卷* |
|---|---|---|
| 3000 - 3000 | TWD1.50 | TWD4,500.00 |
| 6000 - 9000 | TWD1.50 | TWD4,500.00 |
| 12000 + | TWD1.40 | TWD4,200.00 |
* 參考價格
- RS庫存編號:
- 171-2410
- 製造零件編號:
- SSM6N7002KFU
- 製造商:
- Toshiba
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Toshiba | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 300mA | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | SOT-363 | |
| Mount Type | Surface | |
| Pin Count | 6 | |
| Maximum Drain Source Resistance Rds | 1.75Ω | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 500mW | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Minimum Operating Temperature | 150°C | |
| Typical Gate Charge Qg @ Vgs | 0.39nC | |
| Forward Voltage Vf | -0.79V | |
| Transistor Configuration | Dual | |
| Maximum Operating Temperature | 150°C | |
| Height | 0.9mm | |
| Width | 1.25 mm | |
| Length | 2mm | |
| Standards/Approvals | No | |
| Number of Elements per Chip | 2 | |
| Automotive Standard | AEC-Q101 | |
| 選取全部 | ||
|---|---|---|
品牌 Toshiba | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 300mA | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type SOT-363 | ||
Mount Type Surface | ||
Pin Count 6 | ||
Maximum Drain Source Resistance Rds 1.75Ω | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 500mW | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Minimum Operating Temperature 150°C | ||
Typical Gate Charge Qg @ Vgs 0.39nC | ||
Forward Voltage Vf -0.79V | ||
Transistor Configuration Dual | ||
Maximum Operating Temperature 150°C | ||
Height 0.9mm | ||
Width 1.25 mm | ||
Length 2mm | ||
Standards/Approvals No | ||
Number of Elements per Chip 2 | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- TH
High-Speed Switching
Low drain-source on-resistance
RDS(ON) = 1.05 Ω (typ.) (@VGS = 10 V)
RDS(ON) = 1.15 Ω (typ.) (@VGS = 5.0 V)
RDS(ON) = 1.2 Ω (typ.) (@VGS = 4.5 V)
