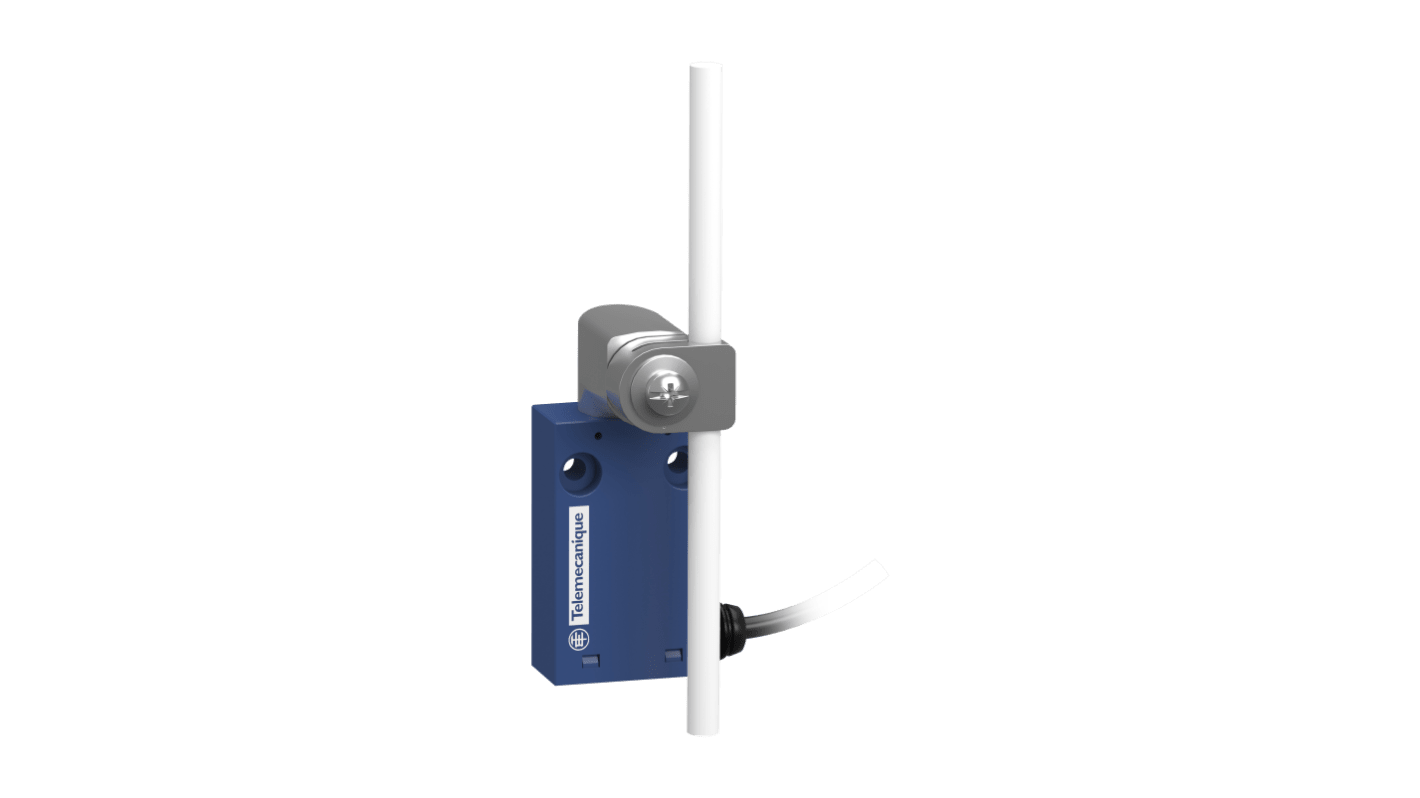

Telemecanique Sensors XCMH Series Rod Limit Switch, 1 NO/1 NC, IP67, IP66, Plastic Housing, 240V ac, 0.75A

RS庫存編號:: 194-154
製造零件編號:: XCMH2159L1
製造商:: Telemecanique Sensors

Telemecanique Sensors XCMH Series Rod Limit Switch, 1 NO/1 NC, IP67, IP66, Plastic Housing, 240V ac, 0.75A

小計（1 件）*

TWD1,908.00

(不含稅)

TWD2,003.40

訂單超過 $1,300.00 免費送貨

有庫存

10 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	TWD1,908.00

* 參考價格

RS庫存編號:: 194-154
製造零件編號:: XCMH2159L1
製造商:: Telemecanique Sensors

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Telemecanique Sensors
	Product Type	Limit Switch
	Actuator Type	Rod
	IP Rating	IP67, IP66
	Contact Configuration	1 NO/1 NC
	Housing Material	Plastic
	Contact Type	Snap Action
	Terminal Type	Cable
	Switching Current	0.75A
	Series	XCMH
	Switching DC Voltage	250V dc
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	240V ac
	Maximum Operating Temperature	70°C
	Width	30mm
	Standards/Approvals	IEC 60204-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14
	Length	16mm
	Depth	232mm
	Hazardous Area Certification	No
	Mechanical Life	5000000Cycles
	Operating Force	0.1N

	選取全部
	品牌 Telemecanique Sensors
	Product Type Limit Switch
	Actuator Type Rod
	IP Rating IP67, IP66
	Contact Configuration 1 NO/1 NC
	Housing Material Plastic
	Contact Type Snap Action
	Terminal Type Cable
	Switching Current 0.75A
	Series XCMH
	Switching DC Voltage 250V dc
	Minimum Operating Temperature -25°C
	Switching AC Voltage 240V ac
	Maximum Operating Temperature 70°C
	Width 30mm
	Standards/Approvals IEC 60204-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14
	Length 16mm
	Depth 232mm
	Hazardous Area Certification No
	Mechanical Life 5000000Cycles
	Operating Force 0.1N

Datasheet - XCMH2159L1

登入下載 CAD 模型

COO (Country of Origin):: ID

Telemecanique Sensors XCMH Series Limit Switch, IP67/IP66 Ingress Protection, 0.75A Switching Current - XCMH2159L1

This limit switch is a rod-actuated industrial device designed to detect position changes and actuate control circuits in demanding environments. It features a plastic enclosure and snap-action contacts to provide quick, repeatable switching for automation and safety applications. The unit is suited to installations where a compact, low-force actuator and cable termination are required.

Features and Benefits:

• Rod actuator with 0.1N operating force for delicate detection
• Snap-action contacts delivering 0.75A switching current for crisp response
• Dual-voltage capability at 250V DC and 240V AC for flexible system integration
• Contact arrangement 1NO/1NC enabling both make-and-break functions
• Mechanical endurance rated to 5,000,000 cycles for extended service life
• IP66/IP67 ingress protection for use in wet or dusty zones

Applications

• Suitable for conveyor end-of-travel detection in manufacturing lines
• Ideal for door position sensing in industrial enclosures
• Used with packaging machines requiring low-force actuation
• Can be used for safety interlocks on access panels
• Appropriate for actuating control relays in test rigs

How is the switch wired into a control system?

The unit uses a cable termination with separately accessible conductors for connection to control circuits and requires wiring of the 1NO and 1NC contacts according to the intended logic.

What temperature range can it operate within?

It functions reliably between -25°C and 70°C, allowing deployment in moderately cold to warm industrial environments.

Which standards does it conform to for electrical and safety design?

It meets IEC 60204-1, IEC 60947-5-1, UL 508 and CSA C22.2 No. 14 specifications for electrical equipment and switch performance.

What construction detail affects environmental resilience?

The plastic housing minimises corrosion risk and, combined with the rated ingress protection, permits use where moisture or particulates are present.
