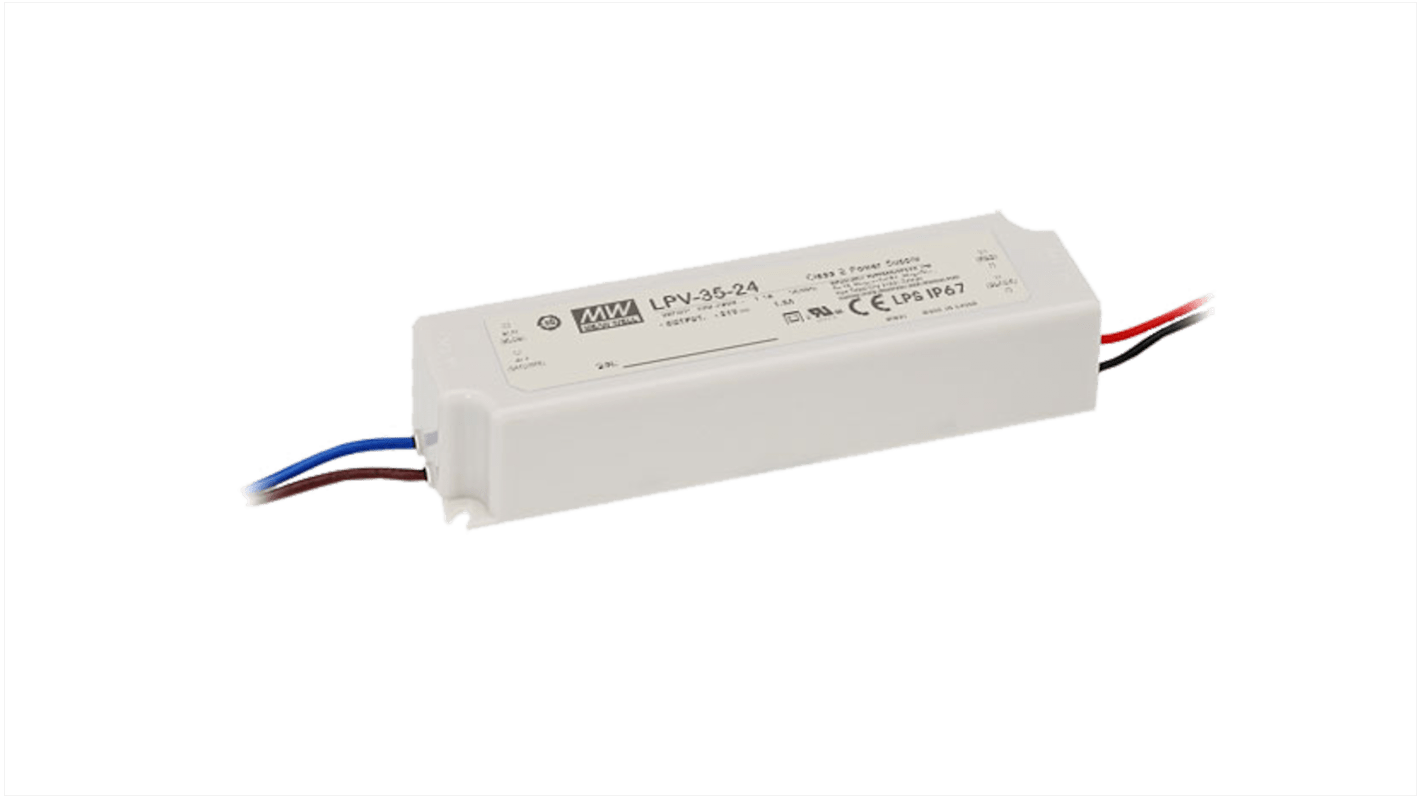

MEAN WELL LED Driver, 24 V Output, 36 W Output, 1.5 A

RS庫存編號:: 660-0280
Distrelec 貨號:: 169-97-726
製造零件編號:: LPV-35-24
製造商:: MEAN WELL

MEAN WELL LED Driver, 24 V Output, 36 W Output, 1.5 A

可享批量折扣

小計（1 件）*

TWD391.00

(不含稅)

TWD410.55

訂單超過 $1,300.00 免費送貨

有庫存

109 件準備從其他地點送貨
加上 160 件從 2026年3月03日起發貨
加上 80 件從 2026年3月20日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 - 4	TWD391.00
5 - 9	TWD381.00
10 - 24	TWD373.00
25 - 49	TWD366.00
50 +	TWD359.00

* 參考價格

RS庫存編號:: 660-0280
Distrelec 貨號:: 169-97-726
製造零件編號:: LPV-35-24
製造商:: MEAN WELL

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	MEAN WELL
	Output Voltage	24 V
	Product Type	LED Driver
	Maximum Output Power	36W
	Input Voltage	90 → 264 V ac
	Mount Type	Panel
	Sub Type	LED Driver
	Terminal Type	Wire
	Input Voltage Type	AC
	IP Rating	IP67
	Operating Modes	Constant Voltage
	LED Voltage	90 to 264 V ac
	Driver Current	1.5 A
	Number of Outputs	1
	Standards/Approvals	EN, LPS, UL, IEC, CB, CE, CSA
	Series	LPV-35
	Configuration	Enclosed
	Primary Type	AC-DC
	Power Dissipation	36W

	選取全部
	品牌 MEAN WELL
	Output Voltage 24 V
	Product Type LED Driver
	Maximum Output Power 36W
	Input Voltage 90 → 264 V ac
	Mount Type Panel
	Sub Type LED Driver
	Terminal Type Wire
	Input Voltage Type AC
	IP Rating IP67
	Operating Modes Constant Voltage
	LED Voltage 90 to 264 V ac
	Driver Current 1.5 A
	Number of Outputs 1
	Standards/Approvals EN, LPS, UL, IEC, CB, CE, CSA
	Series LPV-35
	Configuration Enclosed
	Primary Type AC-DC
	Power Dissipation 36W

登入下載 CAD 模型

RS - 35W Waterproof (IP67) SMPSU

External switch mode epoxy encapsulated IP67 rated power supplies

High efficiency, long life and high reliability

Designed for indoor or outdoor installations

Suitable for LED lighting and moving sign applications

Withstands 300Vac surge input for 5 seconds

100% full load burn-in test

Fully regulated output

Short circuit, over-current, over-voltage protection

600mm un-terminated, 2-core 18AWG input lead

600mm un-terminated, 2-core 16AWG output lead

UL1310 Class 2 power unit, pass LPS

EMC compliance to EN 55022 Class B

Harmonic current compliance to EN 61000-3-2,-3

Stk nos 660-0274, 660-0277, 660-0271, 660-0280, 660-0283 are constant voltage power supplies

Stk nos 660-0287, 660-0296 and 660-0299 are constant current power supplies

Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.

Power derates above 65°C (5Vdc version derates above 55°C).
MTBF to MIL-HDBK-217F.

Standards

TUV EN 60950-1, EN 61347-2-13, UL 1310 Class 2, CAN/CSA C22.2 No. 223-M91
