ABB 4-Pole Non-Fused Switch Disconnector -, IP65, 600A, 46 W
- RS庫存編號:
- 235-1677
- 製造零件編號:
- 1SCA022320R7180
- 製造商:
- ABB
小計（1 件）*
TWD219,908.00
(不含稅)
TWD230,903.40
(含稅)
訂單超過 $1,300.00 免費送貨
製造商存貨
- 準備從 2026年11月02日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD219,908.00 |
* 參考價格
- RS庫存編號:
- 235-1677
- 製造零件編號:
- 1SCA022320R7180
- 製造商:
- ABB
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | ABB | |
| Number of Poles | 4 | |
| Product Type | Non-Fused Switch Disconnector | |
| IP Rating | IP65 | |
| Handle Colour | Black | |
| Auxiliary Contacts Available | Yes | |
| Series | OS630BC2LUU4FZ | |
| Switching Current | 600A | |
| Terminal Type | Screw Clamp Terminal | |
| Switching Power | 46W | |
| Padlock Compatibility | Yes | |
| Switching AC Voltage | 690V ac | |
| Width | 1m | |
| Hazardous Area Certification | No | |
| Depth | 330mm | |
| Length | 800mm | |
| Standards/Approvals | IEC 60947-1-3 | |
| 選取全部 | ||
|---|---|---|
品牌 ABB | ||
Number of Poles 4 | ||
Product Type Non-Fused Switch Disconnector | ||
IP Rating IP65 | ||
Handle Colour Black | ||
Auxiliary Contacts Available Yes | ||
Series OS630BC2LUU4FZ | ||
Switching Current 600A | ||
Terminal Type Screw Clamp Terminal | ||
Switching Power 46W | ||
Padlock Compatibility Yes | ||
Switching AC Voltage 690V ac | ||
Width 1m | ||
Hazardous Area Certification No | ||
Depth 330mm | ||
Length 800mm | ||
Standards/Approvals IEC 60947-1-3 | ||
- COO (Country of Origin):
- FI

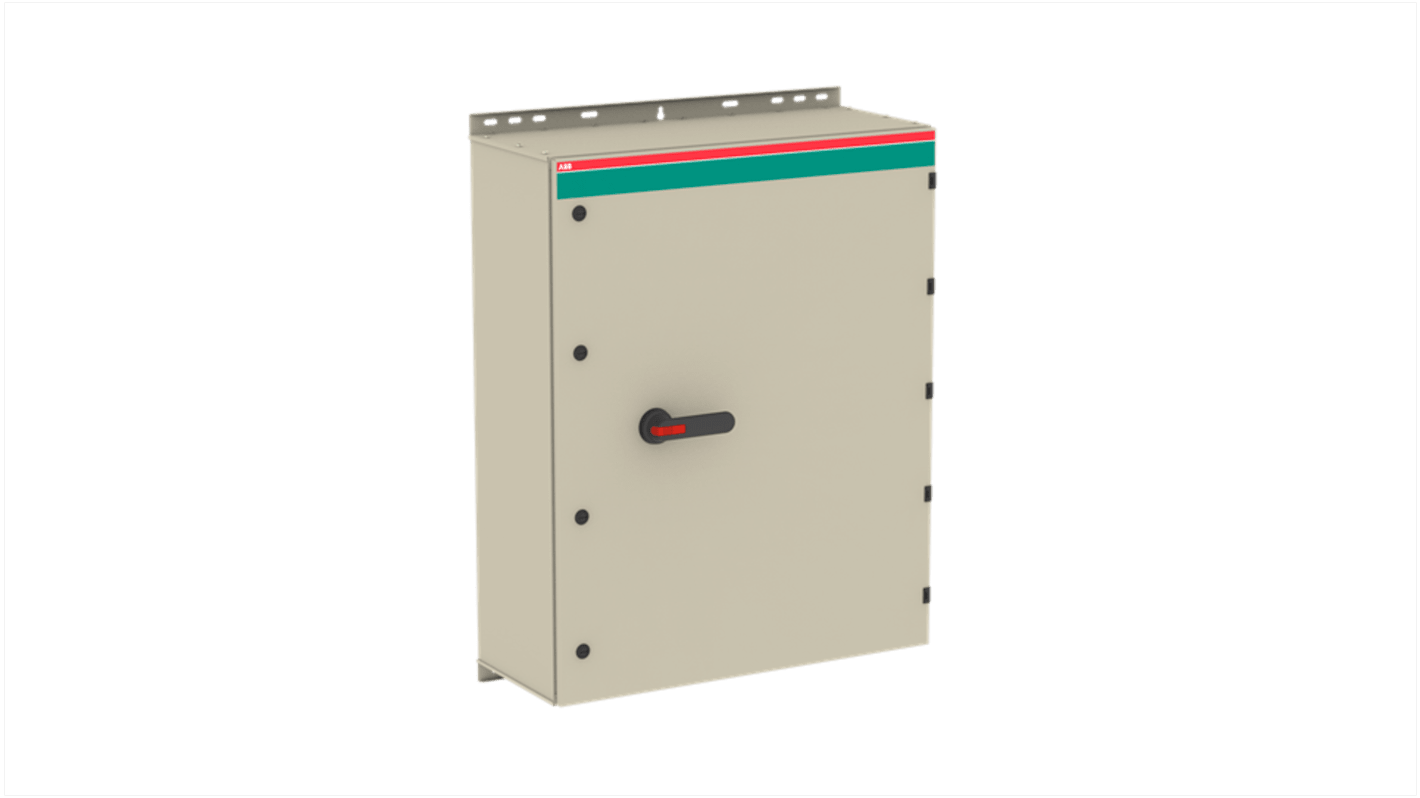

The ABB enclosed switch fuse disconnector is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallel cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is pad lockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Pollution degree 3
Handle colour black
Handle type pistol handle
Position of line terminals Top In - Bottom Out
Fuse size C1-C2
