Renesas Electronics 8T49N287A-998NLGI Clock Translator, 56-Pin 8 VFQFN-56
- RS庫存編號:
- 264-3522
- 製造零件編號:
- 8T49N287A-998NLGI
- 製造商:
- Renesas Electronics

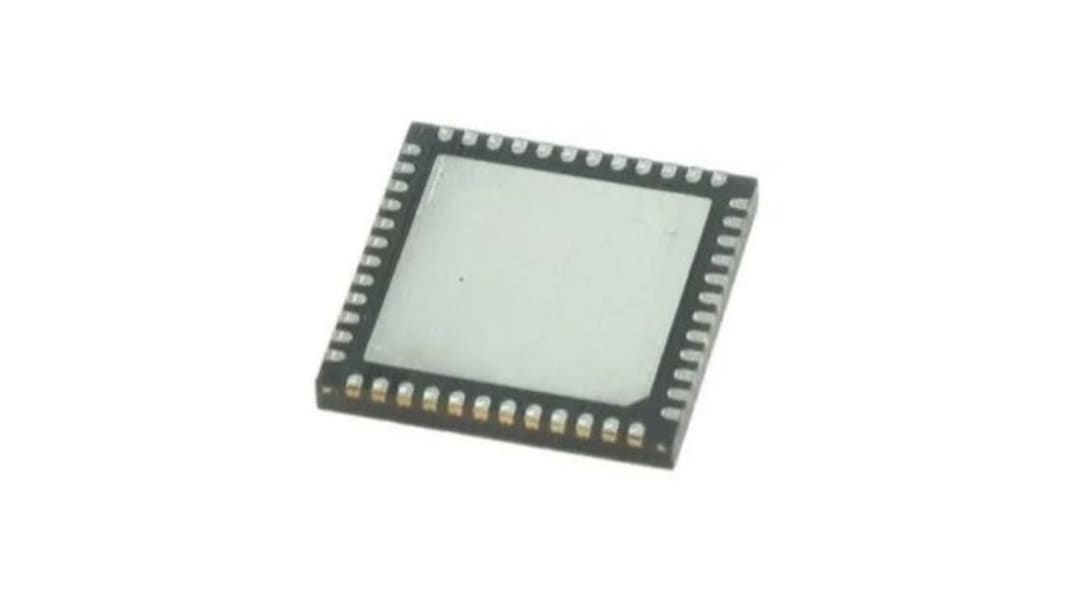

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 件）*
TWD610.00
(不含稅)
TWD640.50
(含稅)
添加 3 件 件可免費送貨
有庫存
- 235 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | TWD610.00 |
| 10 - 24 | TWD563.00 |
| 25 - 49 | TWD537.00 |
| 50 - 99 | TWD526.00 |
| 100 + | TWD480.00 |
* 參考價格
- RS庫存編號:
- 264-3522
- 製造零件編號:
- 8T49N287A-998NLGI
- 製造商:
- Renesas Electronics
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Renesas Electronics | |
| Product Type | Clock Translator | |
| Mount Type | Surface | |
| Package Type | VFQFN-56 | |
| Pin Count | 56 | |
| Minimum Supply Voltage | 3.135V | |
| Maximum Supply Voltage | 3.465V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 8mm | |
| Width | 8 mm | |
| Series | 8T49N287 | |
| Standards/Approvals | RoHS | |
| Height | 0.9mm | |
| Automotive Standard | No | |
| Number of Outputs | 8 | |
| Maximum Output Frequency | 1GHz | |
| 選取全部 | ||
|---|---|---|
品牌 Renesas Electronics | ||
Product Type Clock Translator | ||
Mount Type Surface | ||
Package Type VFQFN-56 | ||
Pin Count 56 | ||
Minimum Supply Voltage 3.135V | ||
Maximum Supply Voltage 3.465V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 8mm | ||
Width 8 mm | ||
Series 8T49N287 | ||
Standards/Approvals RoHS | ||
Height 0.9mm | ||
Automotive Standard No | ||
Number of Outputs 8 | ||
Maximum Output Frequency 1GHz | ||
- COO (Country of Origin):
- TW
The Renesas Electronics 8T49N287 series has two independent fractional feedback PLLs that can be used as jitter attenuators and frequency translators. It is equipped with six integer and two fractional output dividers which allowing the generation of up to 8 different output frequencies is ranging from 8kHz to 1GHz. Four of these frequencies are completely independent of each other and the inputs. The eight outputs may select among LVPECL LVDS HCSL or LVCMOS output levels.
Supports SDH or SONET and Synchronous Ethernet clocks including all FEC rate conversions
Phase slope limiting and fully hitless switching options to control output phase transients
Programmable output phase delays in steps as small as 16ps
