可享批量折扣
小計（1 件）*
TWD1,169.00
(不含稅)
TWD1,227.45
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 52 件準備從其他地點送貨
- 加上 16 件從 2026年4月29日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 5 | TWD1,169.00 |
| 6 - 29 | TWD1,122.00 |
| 30 + | TWD923.00 |
* 參考價格
- RS庫存編號:
- 790-6700
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Universal Joint | |
| Bore Size | 14 mm | |
| Number of Joints | 1 | |
| Overall Length | 60mm | |
| Joint Type | Plain | |
| Hub Type | Bored Hub | |
| Hub Diameter | 28mm | |
| Maximum Working Angle | 45° | |
| Peak Torque | 600 Nm | |
| Material | Steel | |
| Maximum Speed | 1000rpm | |
| Standards/Approvals | No | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Universal Joint | ||
Bore Size 14 mm | ||
Number of Joints 1 | ||
Overall Length 60mm | ||
Joint Type Plain | ||
Hub Type Bored Hub | ||
Hub Diameter 28mm | ||
Maximum Working Angle 45° | ||
Peak Torque 600 Nm | ||
Material Steel | ||
Maximum Speed 1000rpm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- IT

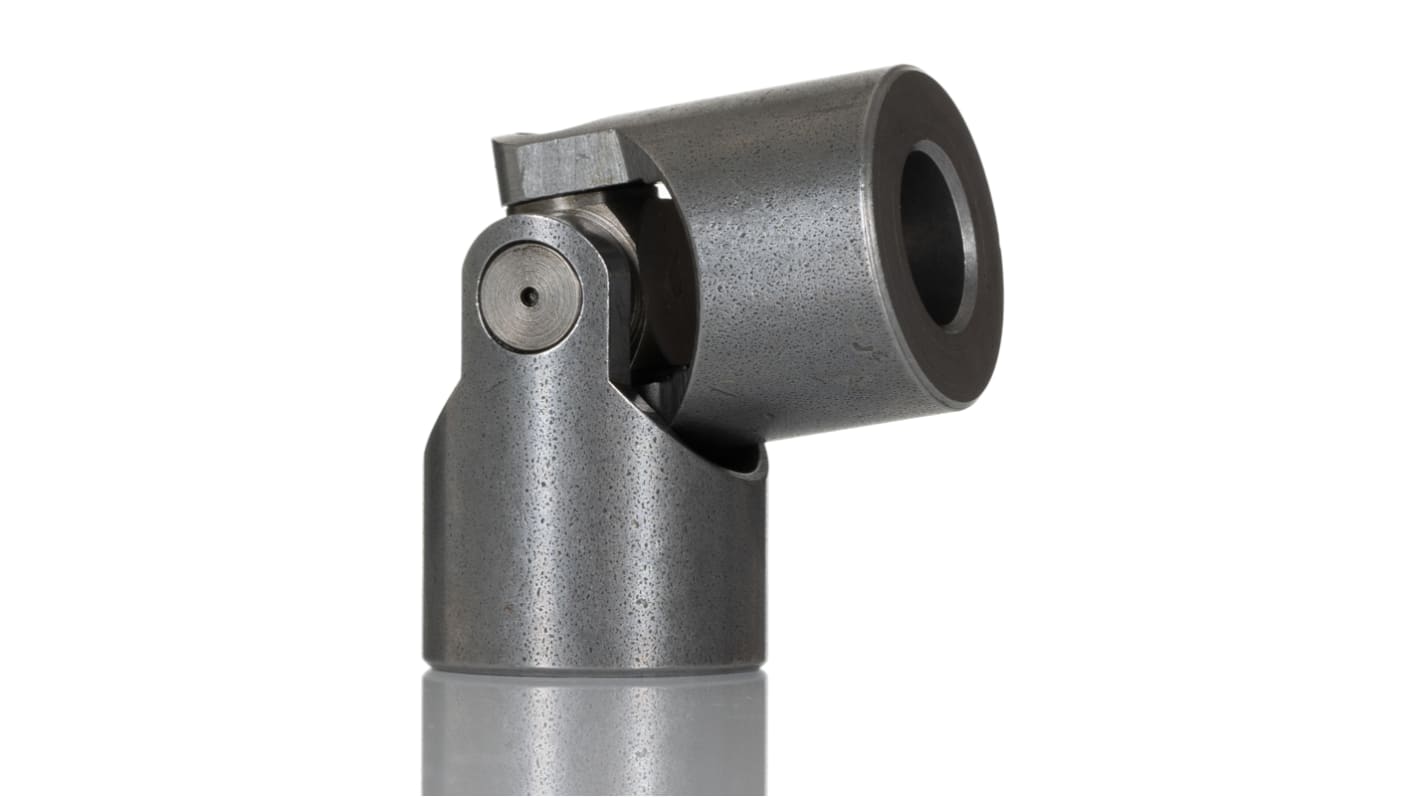

RS PRO Universal Joint, Single, Plain, Bore 14 mm, 60 mm Length
Universal joints such as these plain, bored hub models from RS PRO are an essential element in the connection of conveyors, prop shafts and other rotating machinery to a prime mover. They're also crucial in automotive applications for connecting two shafts with axes positioned at an angle to each other.
Use these bored hub-type, single-joint couplings for applications with a maximum speed of 1000 rpm and an operating angle up to 45°. Made from solid steel, the plain bearings have a bore size of 14 mm and a peak torque of 600 Nm. We recommend the use of a protective gaiter and regular lubrication with universal joints, as this will ensure smooth operation and extend their lifetime.
As part of the trusted RS PRO range, this product has been thoroughly tested for safety and quality. It's also RoHS compliant for the minimal use of restricted hazardous substances.
Features and Benefits
• Universal joint
• Plain single-joint type
• Made from steel
• Bored hub type
• Maximum speed of 1000 rpm
• Hub outer diameter of 28 mm
• Bore size of 14 mm
• Overall length of 60 mm
• Peak torque of 600 Nm
• Maximum working angle of 45°
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
