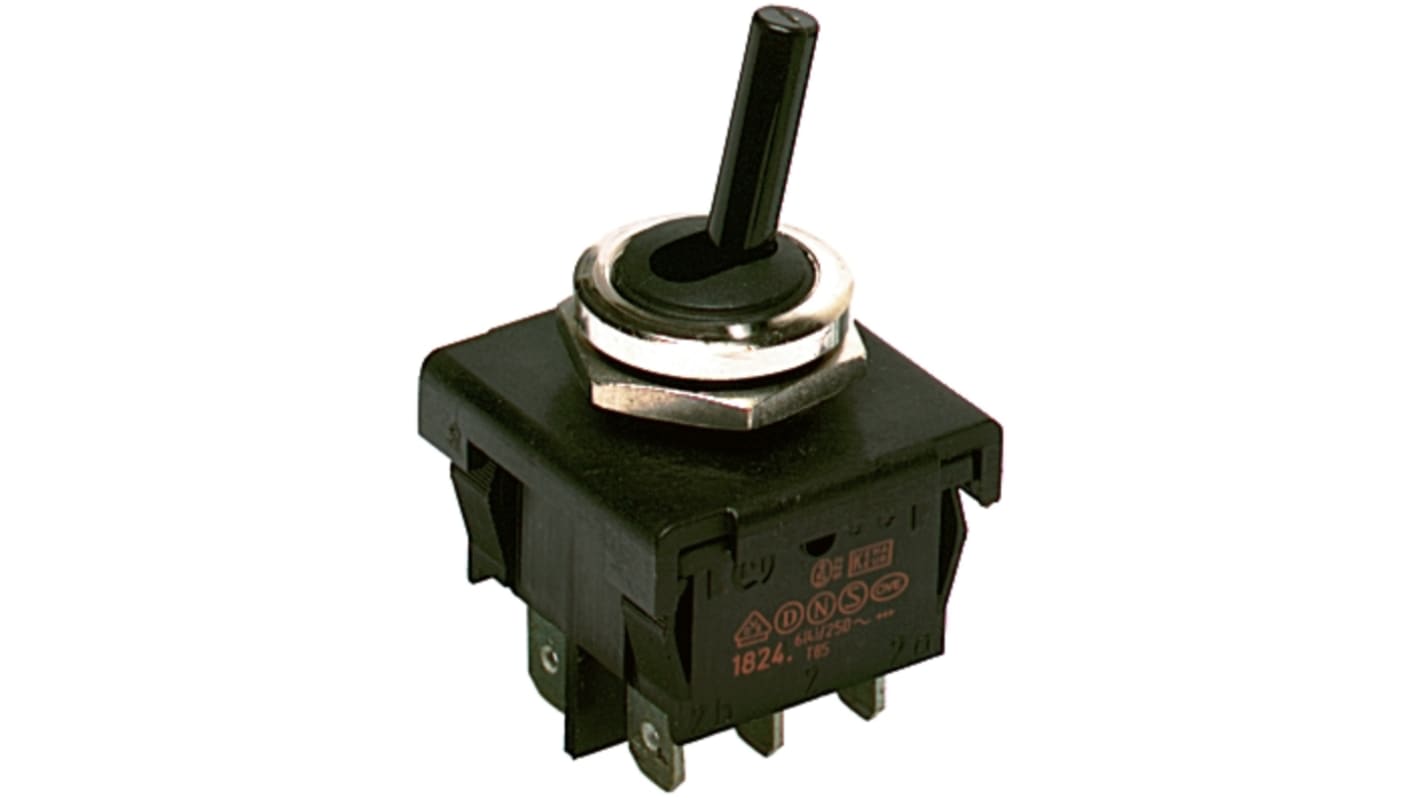

Marquardt Toggle Switch, Panel Mount, On-Off, DPDT, Tab Terminal, 12 V dc, 250 V ac

查看所有Toggle Switches
可享批量折扣

小計（1 件）*

TWD232.00

(不含稅)

TWD243.60

(含稅)

Add to Basket
選擇或輸入數量
庫存資訊目前無法存取 - 請稍後再回來查看
單位
每單位
1 - 49TWD232.00
50 - 99TWD228.00
100 - 249TWD221.00
250 +TWD216.00

* 參考價格

RS庫存編號:
741-0996
Distrelec 貨號:
135-20-933
製造零件編號:
1824.1101
製造商:
Marquardt
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Marquardt

Contact Configuration

DPDT

Product Type

Toggle Switch

Switch Operation

On-Off

Switch Contact Current

6 A

Mount Type

Panel

Terminal Type

Tab

IP Rating

IP40

Illuminated

No

Contact AC Voltage

250V ac

Contact DC Voltage

12V dc

Minimum Operating Temperature

-20°C

Actuator Length

14mm

Switch Configuration

On-Off

Actuator Material

Polyamide

Maximum Operating Temperature

55°C

Length

23.9mm

Standards/Approvals

VDE, UL, RoHS, ENEC, EN, CSA

Series

1820

Height

44.4mm

Width

25.6 mm

Mechanical Life

50000Cycles

COO (Country of Origin):
TN

Marquardt 1820 Series Toggle Switches


Marquardt 1820 series single and double pole toggle switches. The 1820 toggle switches are suitable for use in Class II appliances and are available in a choice of SPST, SPDT, DPST or DPDT switching formats including SPDT center off changeover with latching action contacts (see stock number 741-1003). A black Neoprene® lever cover which simply screws onto the toggle switch M12x0.75mm bush is available to protect the actuator from dust and water ingression.

Long mechanical and electrical life

Contact distance ≥3mm (apart from stock number 741-1003 which has a contact distance <3mm)

Contact resistance <100mΩ

Insulation resistance >100MΩ

Electrical connection via Solder tag or 4.8mm Faston/Quick Connect style terminals

UL 94 V-2 flammability rated

Note

See stock number 103-9475 for Neoprene® protective cover.
Neoprene is a registered trademark of DuPont.

Approvals

UL; CSA; ENEC
