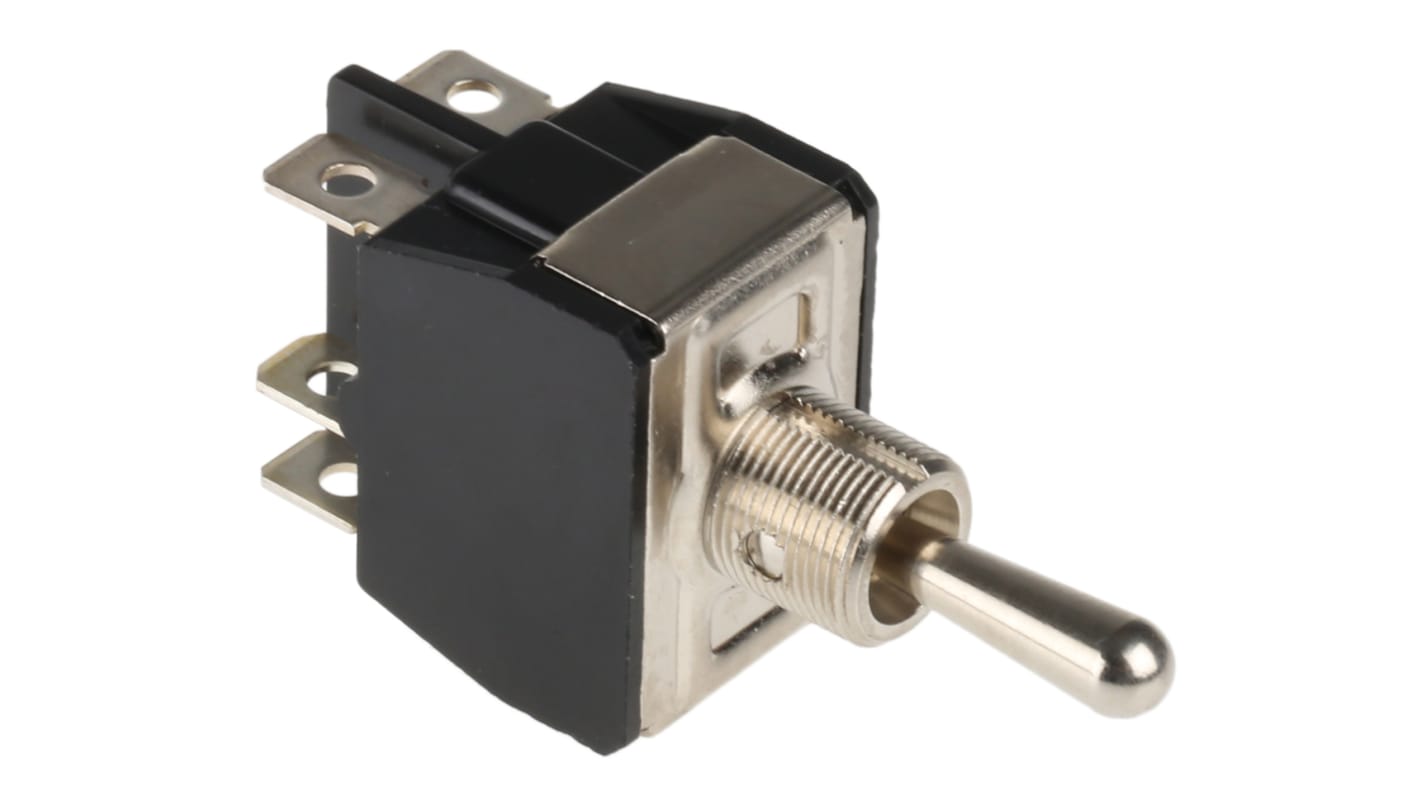

APEM Toggle Switch, Panel Mount, On-Off-On, DPDT, Tab Terminal, 24 V dc, 250 V ac
- RS庫存編號:
- 518-5336
- 製造零件編號:
- Y32CP
- 製造商:
- APEM
可享批量折扣
小計（1 件）*
TWD442.00
(不含稅)
TWD464.10
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 430 件從 2026年3月16日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 14 | TWD442.00 |
| 15 - 49 | TWD428.00 |
| 50 - 99 | TWD416.00 |
| 100 - 249 | TWD406.00 |
| 250 + | TWD398.00 |
* 參考價格
- RS庫存編號:
- 518-5336
- 製造零件編號:
- Y32CP
- 製造商:
- APEM
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | APEM | |
| Product Type | Toggle Switch | |
| Contact Configuration | DPDT | |
| Switch Operation | On-Off-On | |
| Switch Contact Current | 15 A | |
| Mount Type | Panel | |
| Terminal Type | Tab | |
| Illuminated | No | |
| Contact AC Voltage | 250V ac | |
| Actuator Length | 17.5mm | |
| Contact DC Voltage | 24V dc | |
| Minimum Operating Temperature | -20°C | |
| Switch Configuration | On-Off-On | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | RoHS | |
| Series | X and Y New | |
| 選取全部 | ||
|---|---|---|
品牌 APEM | ||
Product Type Toggle Switch | ||
Contact Configuration DPDT | ||
Switch Operation On-Off-On | ||
Switch Contact Current 15 A | ||
Mount Type Panel | ||
Terminal Type Tab | ||
Illuminated No | ||
Contact AC Voltage 250V ac | ||
Actuator Length 17.5mm | ||
Contact DC Voltage 24V dc | ||
Minimum Operating Temperature -20°C | ||
Switch Configuration On-Off-On | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals RoHS | ||
Series X and Y New | ||
Toggle Switches, Std, 15A
Moulded body with slow-break silver plated contacts and pear-shaped toggle
The blade terminals are suitable for 250 (1/4 in) receptacles or soldering
Mounting bush 0.468in dia., length 11mm, single locating slot
