可享批量折扣
小計（1 包，共 5 件）*
TWD623.00
(不含稅)
TWD654.15
(含稅)
庫存資訊目前無法存取 - 請稍後再回來查看
單位 | 每單位 | 每包* |
|---|---|---|
| 5 - 45 | TWD124.60 | TWD623.00 |
| 50 - 120 | TWD121.80 | TWD609.00 |
| 125 - 245 | TWD118.40 | TWD592.00 |
| 250 - 1245 | TWD115.40 | TWD577.00 |
| 1250 + | TWD95.20 | TWD476.00 |
* 參考價格
- RS庫存編號:
- 175-4064
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Resistor | |
| Resistance | 500mΩ | |
| Resistor Type | High Voltage Radial | |
| Power Rating | 2.5W | |
| Tolerance ± | 5% | |
| Axial/Radial | Radial | |
| Voltage | 10kV | |
| Technology | Thick Film | |
| Series | RSHVS | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Lead Pitch Radial | 22.86in | |
| Maximum Operating Temperature | 180°C | |
| Width | 0.7mm | |
| Standards/Approvals | RoHS | |
| Height | 6.35mm | |
| Length | 25.4mm | |
| Temperature Coefficient | 25 ppm/°C | |
| Lead Diameter | 8.13mm | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Resistor | ||
Resistance 500mΩ | ||
Resistor Type High Voltage Radial | ||
Power Rating 2.5W | ||
Tolerance ± 5% | ||
Axial/Radial Radial | ||
Voltage 10kV | ||
Technology Thick Film | ||
Series RSHVS | ||
Automotive Standard No | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Lead Pitch Radial 22.86in | ||
Maximum Operating Temperature 180°C | ||
Width 0.7mm | ||
Standards/Approvals RoHS | ||
Height 6.35mm | ||
Length 25.4mm | ||
Temperature Coefficient 25 ppm/°C | ||
Lead Diameter 8.13mm | ||

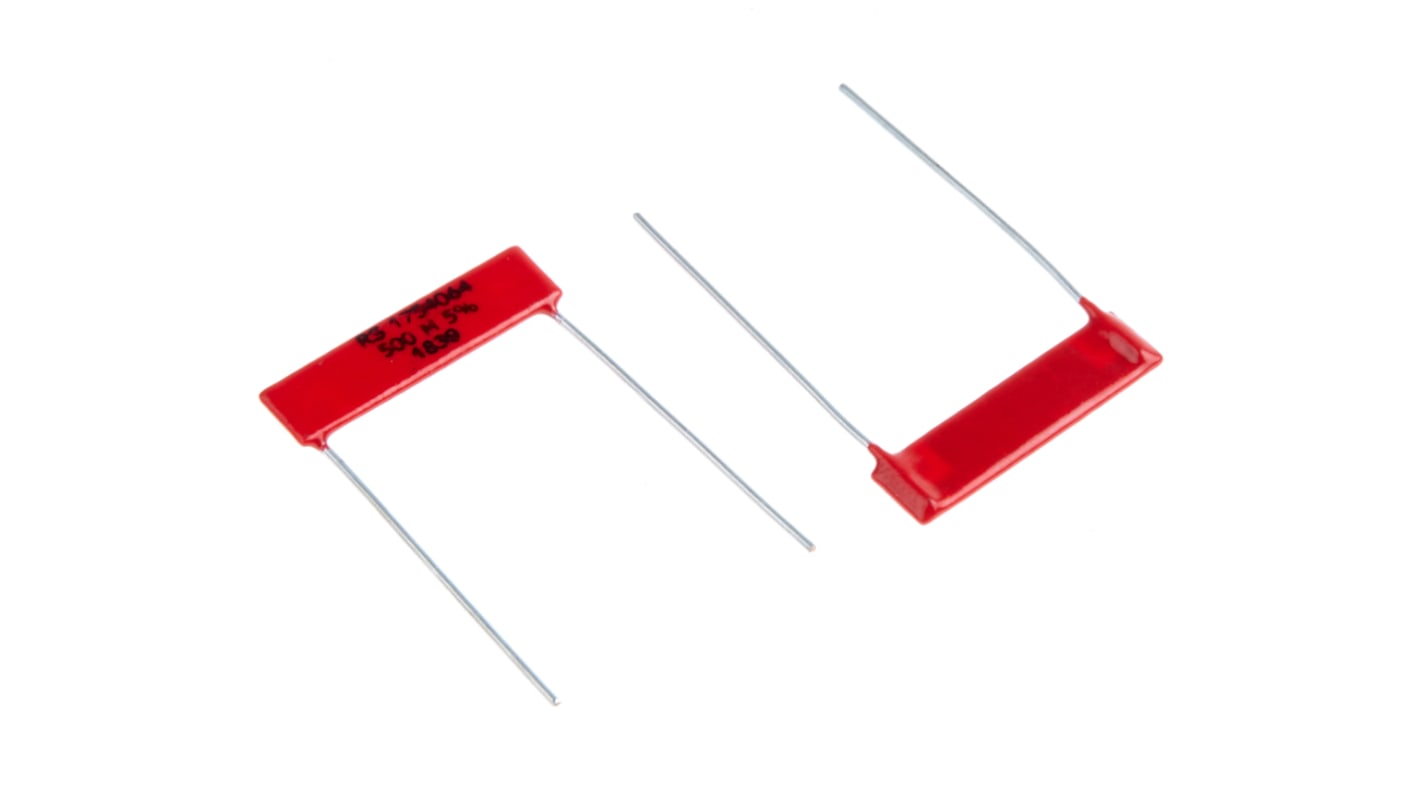

RSHVS series resistors are designed and manufactured to offer stable performance across a wide range of resistance values. This thick film series of high voltage resistors contains ratings up to 20KVin a radial-leaded package. The flat design enables a non-inductive performance and low resistor noise. These components are coated in a high-dielectric silicone protective coating.
