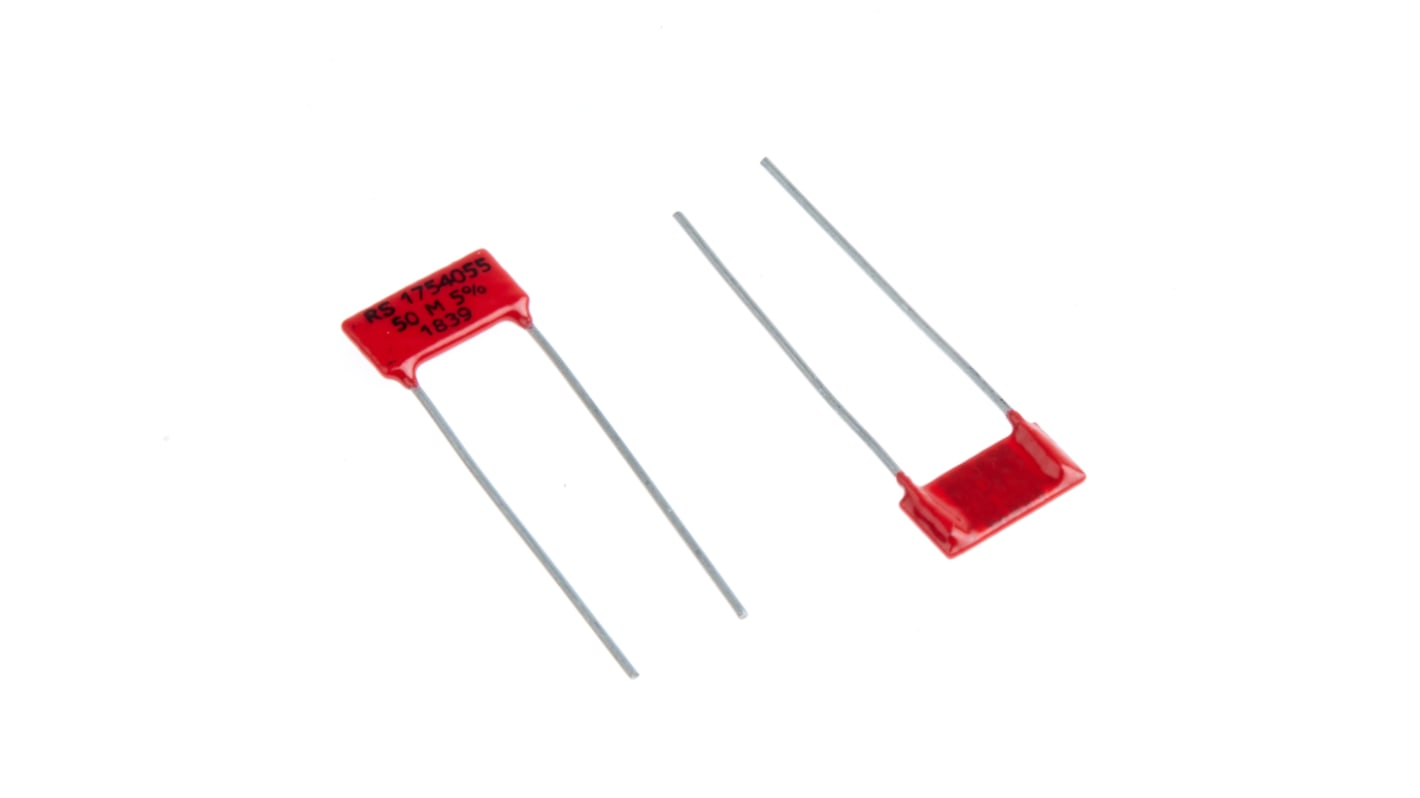

RS PRO 50 mΩ Thick Film Resistor 1.5 W 5 %

享受批量購買折扣

額外添加50件可節省TWD160.00

查看批量定價選項

小計(1 包,共 5 件)*

TWD645.00

(不含稅)

TWD677.25

(含稅)

Add to Basket
選擇或輸入數量
最後的 RS 庫存
  • 最終 285 個,準備發貨

單位
每單位
每包*
節省
5 - 45TWD129.00TWD645.00-
50 - 120TWD125.80TWD629.00TWD160.00
125 - 245TWD122.40TWD612.00TWD825.00
250 - 1245TWD119.60TWD598.00TWD2,350.00
1250 +TWD98.40TWD492.00TWD38,250.00

* 參考價格

RS庫存編號:
175-4055
製造商:
RS PRO
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

RS PRO

Product Type

Resistor

Resistance

50mΩ

Power Rating

1.5W

Resistor Type

High Voltage Radial

Tolerance ±

5%

Axial/Radial

Radial

Voltage

5kV

Technology

Thick Film

Series

RS PRO

Automotive Standard

No

Pin Count

2

Minimum Operating Temperature

-55°C

Lead Pitch Radial

10.16in

Maximum Operating Temperature

180°C

Length

12.7mm

Height

6.35mm

Standards/Approvals

RoHS

Width

700μm

Temperature Coefficient

25 ppm/°C

Lead Diameter

8.13mm

COO (Country of Origin):
MX
RSHVS series resistors are designed and manufactured to offer stable performance across a wide range of resistance values. This thick film series of high voltage resistors contains ratings up to 20KVin a radial-leaded package. The flat design enables a non-inductive performance and low resistor noise. These components are coated in a high-dielectric silicone protective coating.
