Name: Schneider Electric Selector Switch Selector Switch - (2 NO) 22.5 mm Cutout Diameter 3 Positions
Brand: Schneider Electric
SKU: 609-6041
Price: 993.30 TWD
Availability: InStock

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Schneider Electric
	Product Type	Selector Switch
	Number of Positions	3
	Actuator Type	Selector Switch
	Contact Configuration	2 NO
	IP Rating	IP67, IP69K, IP69
	Angle of Throw	45 °
	Series	Harmony XB5
	Cutout Diameter	22.5mm
	Terminal Type	Screw
	Standards/Approvals	EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C 4520, CSA C22.2 No. 14, EN/IEC 60947-5-5, UL 508
	Switch Operation	Stay Put

	選取全部
	品牌 Schneider Electric
	Product Type Selector Switch
	Number of Positions 3
	Actuator Type Selector Switch
	Contact Configuration 2 NO
	IP Rating IP67, IP69K, IP69
	Angle of Throw 45 °
	Series Harmony XB5
	Cutout Diameter 22.5mm
	Terminal Type Screw
	Standards/Approvals EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C 4520, CSA C22.2 No. 14, EN/IEC 60947-5-5, UL 508
	Switch Operation Stay Put

登入下載 CAD 模型

COO (Country of Origin):: FR

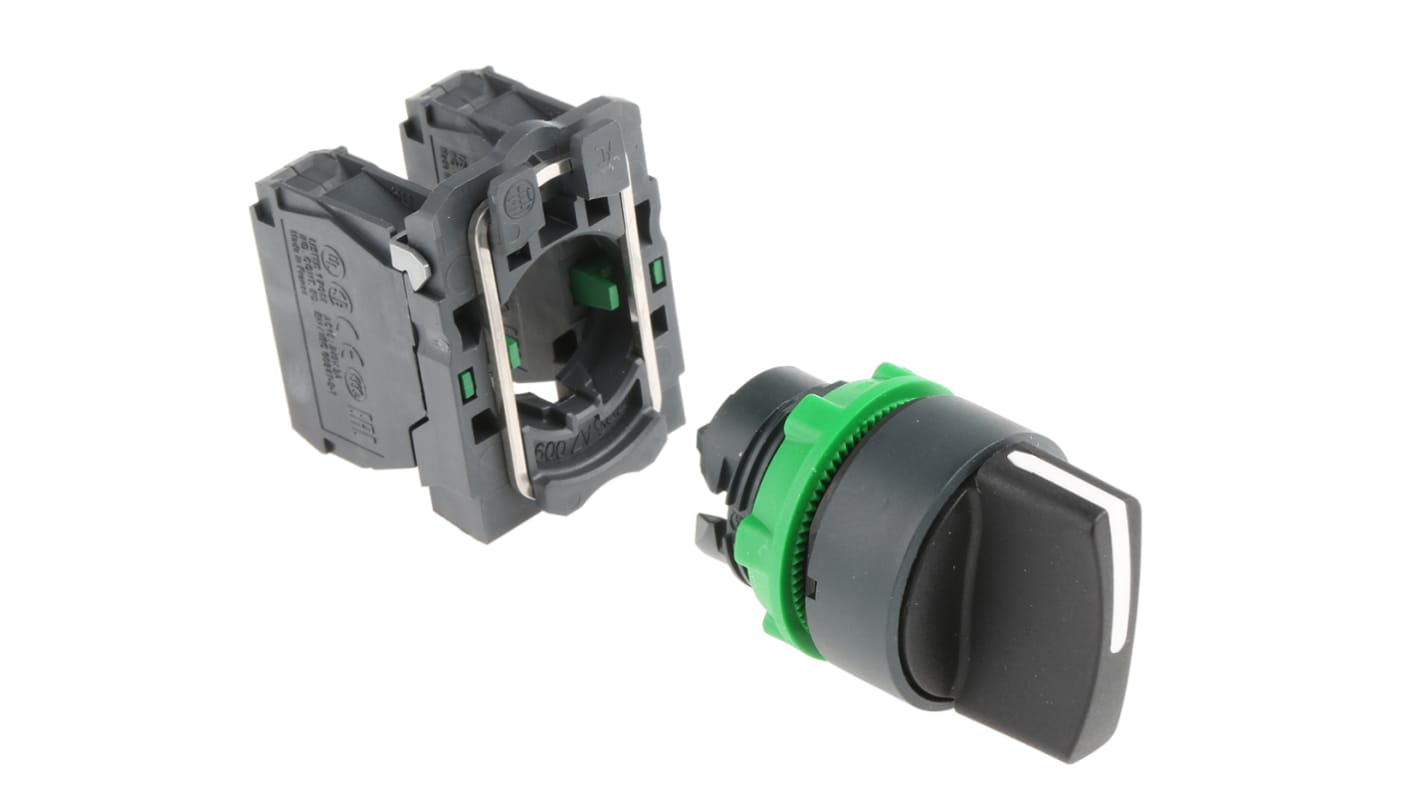

Schneider Electric Harmony XB5 Series Selector Switch, 3 Positions, 22.5mm Cutout Diameter - XB5AD33

This selector switch is a robust industrial component designed for versatility within the automation and electrical sectors. Featuring a plastic body, this 22.5mm device provides three positions with a stay-put actuator type for flexible operation. With an IP67 rating alongside IP69 and IP69K, it ensures reliable performance in challenging environments, making it suitable for a variety of applications.

Features & Benefits

• Waterproof design withstands high-pressure washing for durability

• Capable of handling a maximum current of 10A for reliable operation

• Slow-break contact operation enhances safety during switching

• Screw clamp terminals simplify wiring up to 2 x 1.5mm²

• Quick mounting with a 22mm cutout diameter for easy installation

• Offers mechanical durability of up to 1,000,000 cycles for longevity

Applications

• Utilised for control systems in manufacturing machinery

• Suitable for industrial equipment requiring three-position control

• Designed for environments subject to dust and moisture exposure

• Employed in electrical panels requiring secure operational selection

How does this component handle extreme environmental conditions?

With an IP67 rating, it provides superior protection against dust and water ingress, while greater ratings of IP69 and IP69K ensure performance under high-pressure and high-temperature washdowns, making it perfect for operations in challenging environments.

What installation requirements should be considered for using this selector switch?

The mounting diameter is 22mm with screw clamp terminals that accommodate various wire sizes, making installation straightforward. Proper torque alignment of 0.8 to 1.2 N·m is recommended to ensure secure connections.

What is the electrical performance of this switch under different conditions?

It can operate under various rated operational currents, supporting up to 10A across both AC and DC systems, ensuring compatibility with a wide range of electrical applications without compromising performance.

Approvals

BV, CSA, DNV, GL, LROS (Lloyds register of shipping), RINA, UL.

Standards

EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, UL 508, CSA C22.2 No 14.

Schneider Electric Selector Switch Selector Switch - (2 NO) 22.5 mm Cutout Diameter 3 Positions
