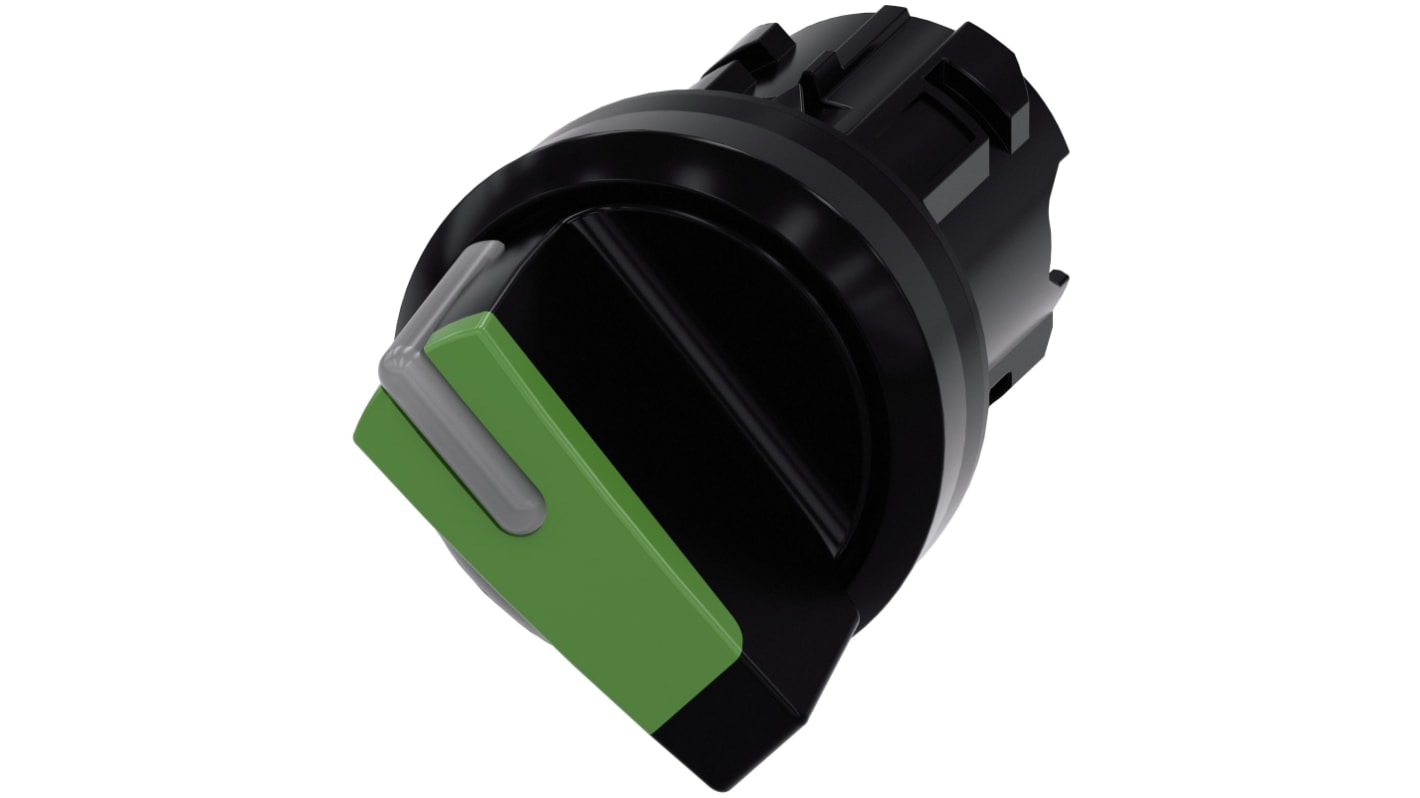

Siemens SIRIUS ACT 3SU10 Series 2 Position Illuminated Selector Switch, 22 mm Cutout, Green Handle, IP66, IP67, IP69K
- RS庫存編號:
- 103-8503
- 製造零件編號:
- 3SU1002-2BF40-0AA0
- 製造商:
- Siemens
小計(1 件)*
TWD712.00
(不含稅)
TWD747.60
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 4 件從 2026年11月23日 起發貨
**需要更多嗎?**輸入您需要的數量,然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD712.00 |
* 參考價格
- RS庫存編號:
- 103-8503
- 製造零件編號:
- 3SU1002-2BF40-0AA0
- 製造商:
- Siemens
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Siemens | |
| Product Type | Selector Switch | |
| Illuminated | Yes | |
| Number of Positions | 2 | |
| Cutout Diameter | 22mm | |
| Switch Operation | Latching | |
| Series | SIRIUS ACT 3SU10 | |
| IP Rating | IP66, IP67, IP69K | |
| Angle of Throw | 90 ° | |
| Standards/Approvals | RoHS | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Low Carbon Manufacture | |
| Actuator Colour | Green | |
| 選取全部 | ||
|---|---|---|
品牌 Siemens | ||
Product Type Selector Switch | ||
Illuminated Yes | ||
Number of Positions 2 | ||
Cutout Diameter 22mm | ||
Switch Operation Latching | ||
Series SIRIUS ACT 3SU10 | ||
IP Rating IP66, IP67, IP69K | ||
Angle of Throw 90 ° | ||
Standards/Approvals RoHS | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Low Carbon Manufacture | ||
Actuator Colour Green | ||
- COO (Country of Origin):
- CZ
Siemens SIRIUS ACT 3SU10 Series Selector Switch, 22mm Cutout Diameter, Green Actuator - 3SU1002-2BF40-0AA0
This selector switch provides a panel-mounted, illuminated control for industrial environments, offering two selectable positions with a latching mechanism and a 90° actuation angle. It is designed for 22mm round panel cut-outs and includes a short green plastic handle with a black front ring. The unit is intended for applications requiring a compact, visible selector that withstands harsh conditions.
Features and Benefits:
• IP66/IP67/IP69K protection for use in wet environments
• Latching action with 90° throw for decisive position control
• Illuminable actuator enabling clear Visual status indication
• Mechanical life of 1,000,000 cycles for extended operation
• Shock and vibration resistance meeting IEC and EN railway tests
• Latching action with 90° throw for decisive position control
• Illuminable actuator enabling clear Visual status indication
• Mechanical life of 1,000,000 cycles for extended operation
• Shock and vibration resistance meeting IEC and EN railway tests
Applications
• Suitable for outdoor control panels exposed to spray
• Ideal for food processing machinery requiring wash-down
• Used with cabinets needing 22mm panel-mounted controls
• Can be used for machine operator stations requiring Visual indication
• Suitable for maritime control panels with robust protection
• Ideal for food processing machinery requiring wash-down
• Used with cabinets needing 22mm panel-mounted controls
• Can be used for machine operator stations requiring Visual indication
• Suitable for maritime control panels with robust protection
What operating temperatures can it tolerate during use?
It operates between -25°C and +70°C during normal use.
How does the unit perform under mechanical stress?
It meets 15g/11ms shock conditions and 10 to 500Hz vibration at 5g.
What installation aperture is required for mounting?
It requires a round mounting diameter of 22.3mm with a positive tolerance of 0.4mm.
What environmental classification applies during operation?
It conforms to environmental categories 3M6, 3S2, 3B2, 3C3, 3K6 with 10 to 95% relative humidity.
What is the typical operational frequency the switch can handle?
The maximum switching frequency is 1,800 operations per hour.
Standards
IEC 60947-1, EN 60947-1
IEC 60947-5-1, EN 60947-5-1
IEC 60947-5-1, EN 60947-5-1
