STMicroelectronics L9651 Low Side, Low Side Power Switch IC 20-Pin, SO-20POW

RS庫存編號:: 330-357
製造零件編號:: L9651
製造商:: STMicroelectronics

STMicroelectronics L9651 Low Side, Low Side Power Switch IC 20-Pin, SO-20POW

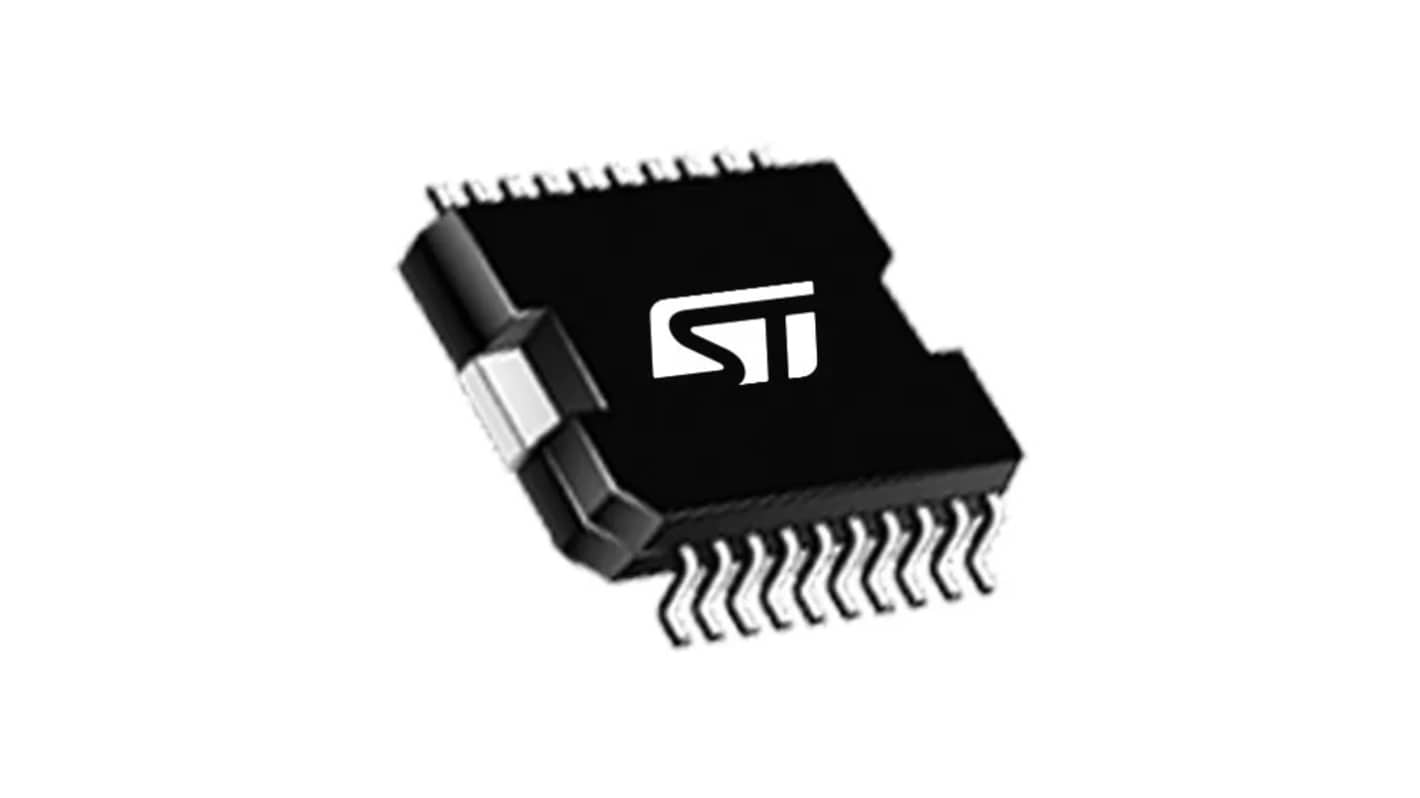

此圖片僅供參考，請參閲產品詳細資訊及規格

暫時無法供應

我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。

RS庫存編號:: 330-357
製造零件編號:: L9651
製造商:: STMicroelectronics

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Power Switch Type	Low Side
	Product Type	Power Switch IC
	Power Switch Topology	Low Side
	Switch On Resistance RdsOn	500mΩ
	Minimum Supply Voltage	4.7V
	Package Type	SO-20POW
	Pin Count	20
	Maximum Supply Voltage	30V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	150°C
	Operating Current	15mA
	Standards/Approvals	RoHS
	Automotive Standard	No

	選取全部
	品牌 STMicroelectronics
	Power Switch Type Low Side
	Product Type Power Switch IC
	Power Switch Topology Low Side
	Switch On Resistance RdsOn 500mΩ
	Minimum Supply Voltage 4.7V
	Package Type SO-20POW
	Pin Count 20
	Maximum Supply Voltage 30V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 150°C
	Operating Current 15mA
	Standards/Approvals RoHS
	Automotive Standard No

Datasheet - L9651

COO (Country of Origin):: MY

The STMicroelectronics Smart Quad Switch consists of four identical low side power switches. A serial diagnostic interface indicates failure mode of each switch (short circuit to VBAT or ground and open load or over temperature).

Wide operating supply voltage from 4.7V up to 30V

Outputs Internally Clamped at 70V for Fast Inductive Load Switch Off

Modified VDMOS Power Stage (UDSBR greater than 80V)

CMOS Compatible Inputs

Outputs Capable of up to 2.2 Amperes

Enable Input (Reset)
