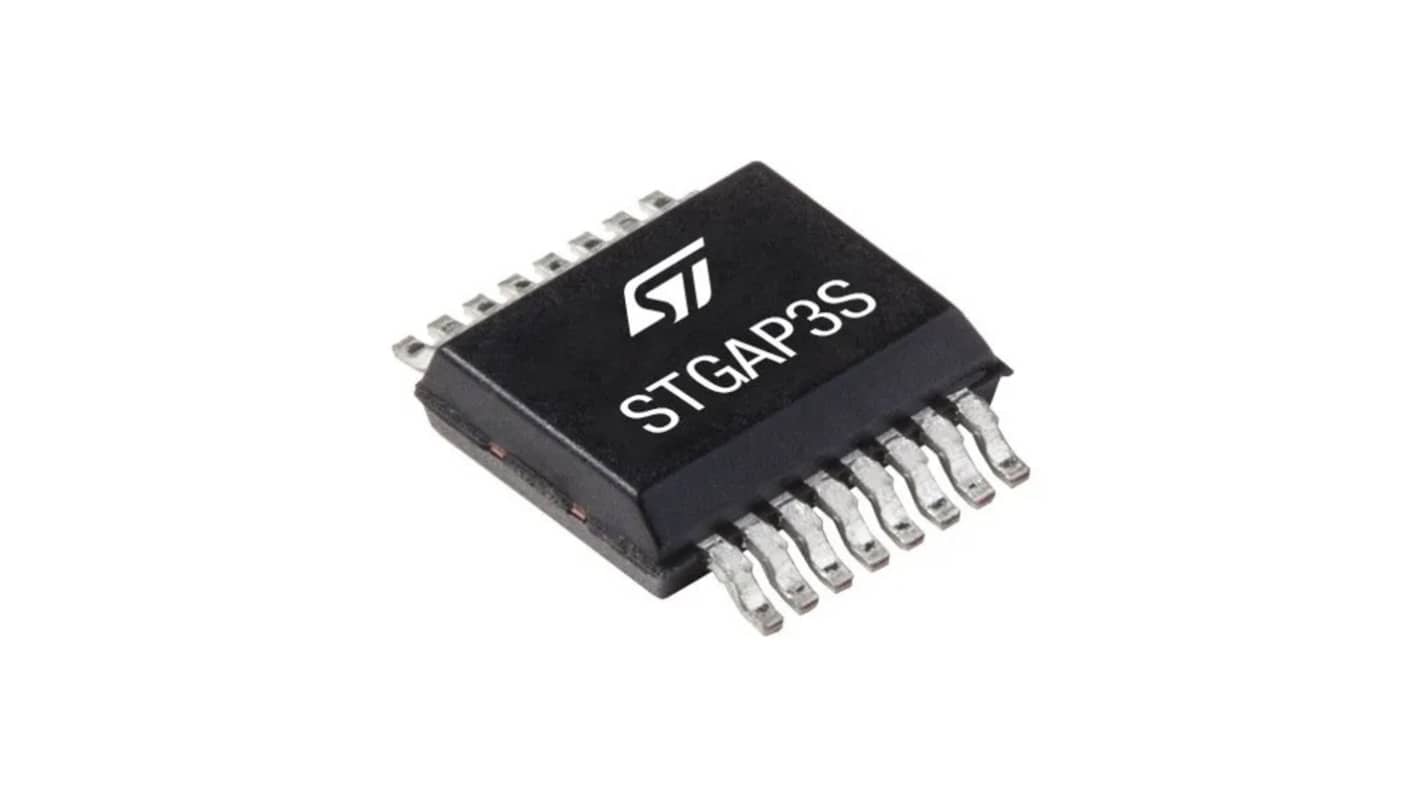

STMicroelectronics STGAP3SXS Low Side 3, Low Side Power Switch IC 16-Pin, SO-16W
- RS庫存編號:
- 330-346
- 製造零件編號:
- STGAP3SXS
- 製造商:
- STMicroelectronics
可享批量折扣
查看批量定價選項小計（1 件）*
TWD163.00
(不含稅)
TWD171.15
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 從 2026年12月16日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | TWD163.00 |
| 10 - 99 | TWD146.00 |
| 100 - 499 | TWD135.00 |
| 500 - 999 | TWD125.00 |
| 1000 + | TWD112.00 |
* 參考價格
- RS庫存編號:
- 330-346
- 製造零件編號:
- STGAP3SXS
- 製造商:
- STMicroelectronics
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | STMicroelectronics | |
| Power Switch Type | Low Side | |
| Product Type | Power Switch IC | |
| Power Switch Topology | Low Side | |
| Switch On Resistance RdsOn | 0.96Ω | |
| Power Rating | 16W | |
| Number of Inputs | 3 | |
| Minimum Supply Voltage | 3.1V | |
| Package Type | SO-16W | |
| Maximum Supply Voltage | 32V | |
| Pin Count | 16 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Operating Current | 10A | |
| Height | 2.65mm | |
| Standards/Approvals | IEC 60747-17, RoHS, UL 1577 | |
| Length | 10.5mm | |
| Automotive Standard | No | |
| Series | STGAP3S | |
| 選取全部 | ||
|---|---|---|
品牌 STMicroelectronics | ||
Power Switch Type Low Side | ||
Product Type Power Switch IC | ||
Power Switch Topology Low Side | ||
Switch On Resistance RdsOn 0.96Ω | ||
Power Rating 16W | ||
Number of Inputs 3 | ||
Minimum Supply Voltage 3.1V | ||
Package Type SO-16W | ||
Maximum Supply Voltage 32V | ||
Pin Count 16 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Operating Current 10A | ||
Height 2.65mm | ||
Standards/Approvals IEC 60747-17, RoHS, UL 1577 | ||
Length 10.5mm | ||
Automotive Standard No | ||
Series STGAP3S | ||
- COO (Country of Origin):
- TW
The STMicroelectronics galvanic ally isolated gate driver for IGBTs with 6 A source or sink current, desaturation protection, and adjustable SOFTOFF is a family of protected single gate drivers designed to provide galvanic isolation between the gate driving channel and low voltage control and interface circuitry. The platform offers different options with 10 A and 6 A current capabilities, with dedicated UVLO variants available for both SiC MOSFETs and IGBTs. Additionally, the driver features ultrafast desaturation protection with differentiated intervention thresholds and an adjustable soft turn-off function.
High voltage rail up to 1200 V
75 ns input-output propagation delay
Miller CLAMP driver for external N-channel MOSFET 0.3 A source or 0.5 A sink
Adjustable soft turn-off function
VDD UVLO
VH UVLO IGBT and SiC variants
Desaturation protection IGBT and SiC variants
