SMC 61.66 L/s 3/4 in Pneumatic Separator, 5 μm filtration, 0.1 MPa to 10 bar
- RS庫存編號:
- 254-8115
- 製造零件編號:
- AMG550C-F06D
- 製造商:
- SMC
小計（1 件）*
TWD14,495.00
(不含稅)
TWD15,219.75
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 從 2026年3月19日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD14,495.00 |
* 參考價格
- RS庫存編號:
- 254-8115
- 製造零件編號:
- AMG550C-F06D
- 製造商:
- SMC
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | SMC | |
| Product Type | Pneumatic Separator | |
| Port Size | 3/4 in | |
| Sub Type | Separator | |
| Maximum Flow Rate | 61.66L/s | |
| Filtration Size | 5μm | |
| Connection Thread Standard | G | |
| Series | AMG | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Operating Temperature | 5°C | |
| Minimum Operating Pressure | 0.1MPa | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Overall Width | 122mm | |
| Overall Height | 259mm | |
| 選取全部 | ||
|---|---|---|
品牌 SMC | ||
Product Type Pneumatic Separator | ||
Port Size 3/4 in | ||
Sub Type Separator | ||
Maximum Flow Rate 61.66L/s | ||
Filtration Size 5μm | ||
Connection Thread Standard G | ||
Series AMG | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature 5°C | ||
Minimum Operating Pressure 0.1MPa | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Overall Width 122mm | ||
Overall Height 259mm | ||
- COO (Country of Origin):
- JP

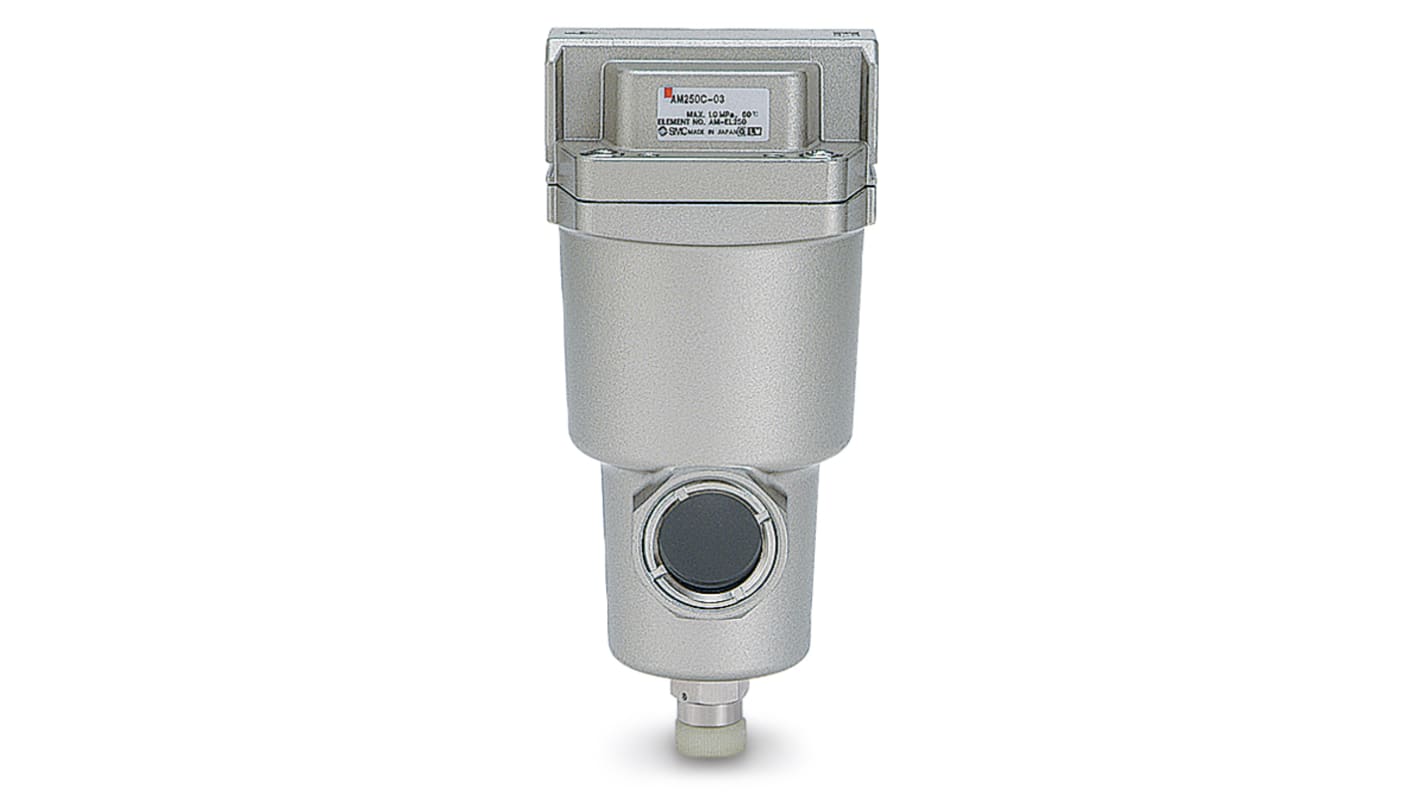

The SMC AMG series water separator is installed on the air pressure line to remove water drops from compressed air. Through the adoption of an element that is exclusively used for removing water droplets and the ample housing interior space, a 99% water
Water removal rate 99%
Max operating pressure 1.0MPa
Fluororubber material
Medium air pressure
Drain guide
IN-OUT reversal direction
Degreasing wash
White Vaseline
