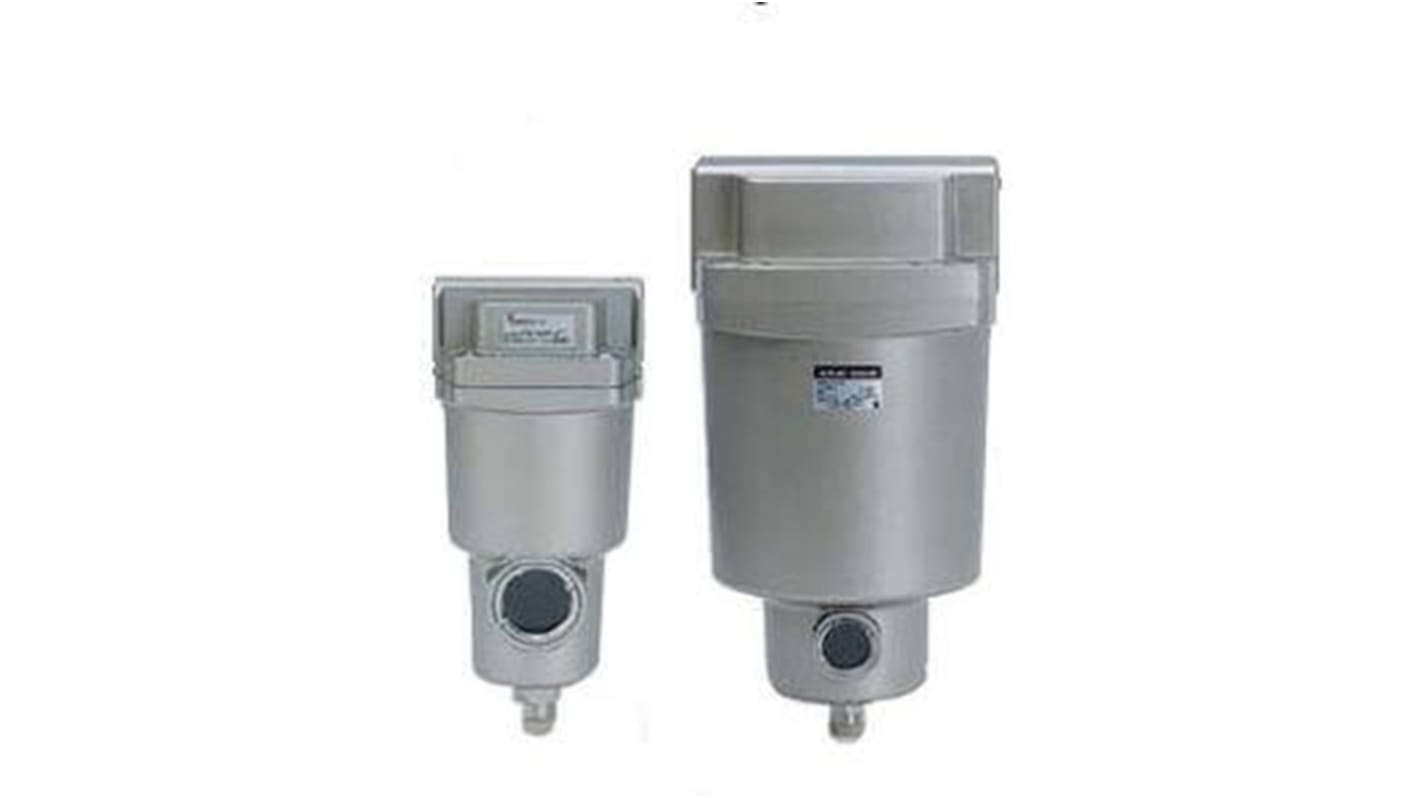

SMC 1/4 in Mist Separator, 0.01 μm filtration, 0.05 MPa to 1 Mpa

查看所有Pneumatic Separators

小計（1 件）*

TWD5,836.00

(不含稅)

TWD6,127.80

(含稅)

Add to Basket
選擇或輸入數量
下方訂單 TWD1,300.00（不含稅）成本 TWD500.00。
暫時缺貨
  • 從 2026年3月19日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +TWD5,836.00

* 參考價格

RS庫存編號:
232-8623
製造零件編號:
AMH250C-F02-T
製造商:
SMC
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

SMC

Product Type

Mist Separator

Port Size

1/4 in

Sub Type

Mist Separator

Filtration Size

0.01μm

Series

AMG

Seal Material

Nitrile Rubber (NBR)

Maximum Operating Pressure

1 Mpa

Minimum Operating Temperature

-5°C

Minimum Operating Pressure

0.05MPa

Maximum Operating Temperature

60°C

Overall Height

172mm

Overall Width

76mm

Standards/Approvals

No

Bowl Material

Polycarbonate

COO (Country of Origin):
JP
The SMC AMH series is a high precision, micro-mist separator combined with a prefilter. It can separate and eliminate aerosol state oil mist in compressed air and remove carbon or dust of more than 0.01 micron. It is suitable for drying/cleaning pneumatic measurement instruments and precision parts.

Built-in 0.3 μm pre-filter

Integrated to achieve a space-saving design

Nominal filtration rating 0.01 μm
