Siemens SIMATIC S7-1200 Series PLC CPU, Digital Output, 8-Input, Analogue Input
- RS庫存編號:
- 862-4474
- Distrelec 貨號:
- 110-96-160
- 製造零件編號:
- 6ES7212-1HE40-0XB0
- 製造商:
- Siemens
小計（1 件）*
TWD16,744.00
(不含稅)
TWD17,581.20
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 5 件從 2026年3月23日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD16,744.00 |
* 參考價格
Better World
我們的 Better World 產品系列可讓您輕鬆選擇值得信賴的環保產品。 點擊此處了解更多。
- RS庫存編號:
- 862-4474
- Distrelec 貨號:
- 110-96-160
- 製造零件編號:
- 6ES7212-1HE40-0XB0
- 製造商:
- Siemens
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Siemens | |
| Product Type | PLC CPU | |
| Series | SIMATIC S7-1200 | |
| Number of Inputs | 8 | |
| Output Type | Digital | |
| Input Type | Analogue | |
| Number of Outputs | 6 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Width | 90 mm | |
| Standards/Approvals | CE, FM Approval, KC Approval, UL Approval | |
| Length | 100mm | |
| Depth | 75mm | |
| Better World Claim | Saves Energy | |
| Better World Product | Yes | |
| Program Capacity | 50kB | |
| Number of Communication Ports | 1 | |
| Battery Backup | Yes | |
| Output Current | 2A | |
| Display Included | No | |
| Communication Port Type | Ethernet, Profinet | |
| Supply Voltage | 20.4 → 28.8 V | |
| Programming Language Used | FBD, Ladder Diagram, SCL | |
| Mount Type | DIN Rail, Wall Mount | |
| 選取全部 | ||
|---|---|---|
品牌 Siemens | ||
Product Type PLC CPU | ||
Series SIMATIC S7-1200 | ||
Number of Inputs 8 | ||
Output Type Digital | ||
Input Type Analogue | ||
Number of Outputs 6 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Width 90 mm | ||
Standards/Approvals CE, FM Approval, KC Approval, UL Approval | ||
Length 100mm | ||
Depth 75mm | ||
Better World Claim Saves Energy | ||
Better World Product Yes | ||
Program Capacity 50kB | ||
Number of Communication Ports 1 | ||
Battery Backup Yes | ||
Output Current 2A | ||
Display Included No | ||
Communication Port Type Ethernet, Profinet | ||
Supply Voltage 20.4 → 28.8 V | ||
Programming Language Used FBD, Ladder Diagram, SCL | ||
Mount Type DIN Rail, Wall Mount | ||
不相容

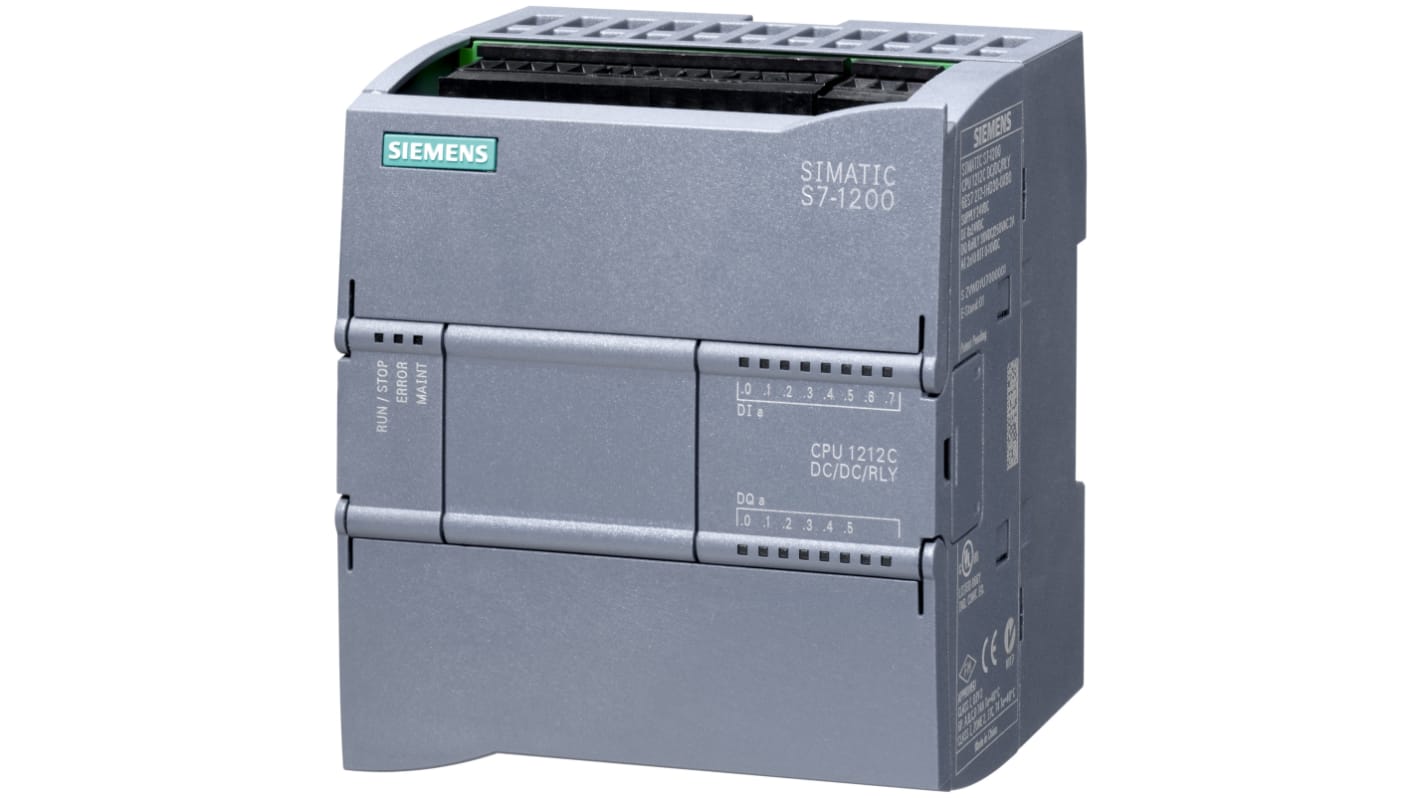

Siemens PLC CPU, 8 Digital Inputs, 6 Digital Relay Outputs - S7-1200 Series - 6ES7212-1HE40-0XB0
Use this central processing unit from Siemens to control all functions in your programmable logic controller. It regulates the logic and communication operations of your PLC for effective signal processing from machine sensors. The unit also houses a memory bank to store the operating data of the PLC, so you can retrieve it with ease. An integrated Ethernet network lets you connect easily to the internet. You can use this CPU to control the automation process in your packaging plants and conveyor systems. It has a processing time of 0.085μs for bit operations, 1.7μs for word operations and 2.3μs for floating-point arithmetic, making it reliable for fast data-processing applications.
• Can be mounted on a wall or DIN rail mounting for flexible installation
• Frequency counter for remote monitoring of connected machines
• Compatible with multiple programming languages for ease of configuration
How many I/O modules can this CPU control?
This CPU can regulate the functions of 8 digital input modules and 6 digital relay output modules, making it a versatile choice. You can use 2 of the digital input modules to switch analogue signals for added versatility.
