小計（1 件）*
TWD790.00
(不含稅)
TWD829.50
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 312 件從 2026年9月14日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD790.00 |
* 參考價格
- RS庫存編號:
- 217-6743
- 製造零件編號:
- GE 8 C
- 製造商:
- SKF
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | SKF | |
| Product Type | Spherical Bearing | |
| Bore Diameter | 8mm | |
| Outside Diameter | 16mm | |
| Material | Steel | |
| Static Load Rating - Axial | 14.6kN | |
| Series | GE | |
| Width | 8mm | |
| Standards/Approvals | No | |
| 選取全部 | ||
|---|---|---|
品牌 SKF | ||
Product Type Spherical Bearing | ||
Bore Diameter 8mm | ||
Outside Diameter 16mm | ||
Material Steel | ||
Static Load Rating - Axial 14.6kN | ||
Series GE | ||
Width 8mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE

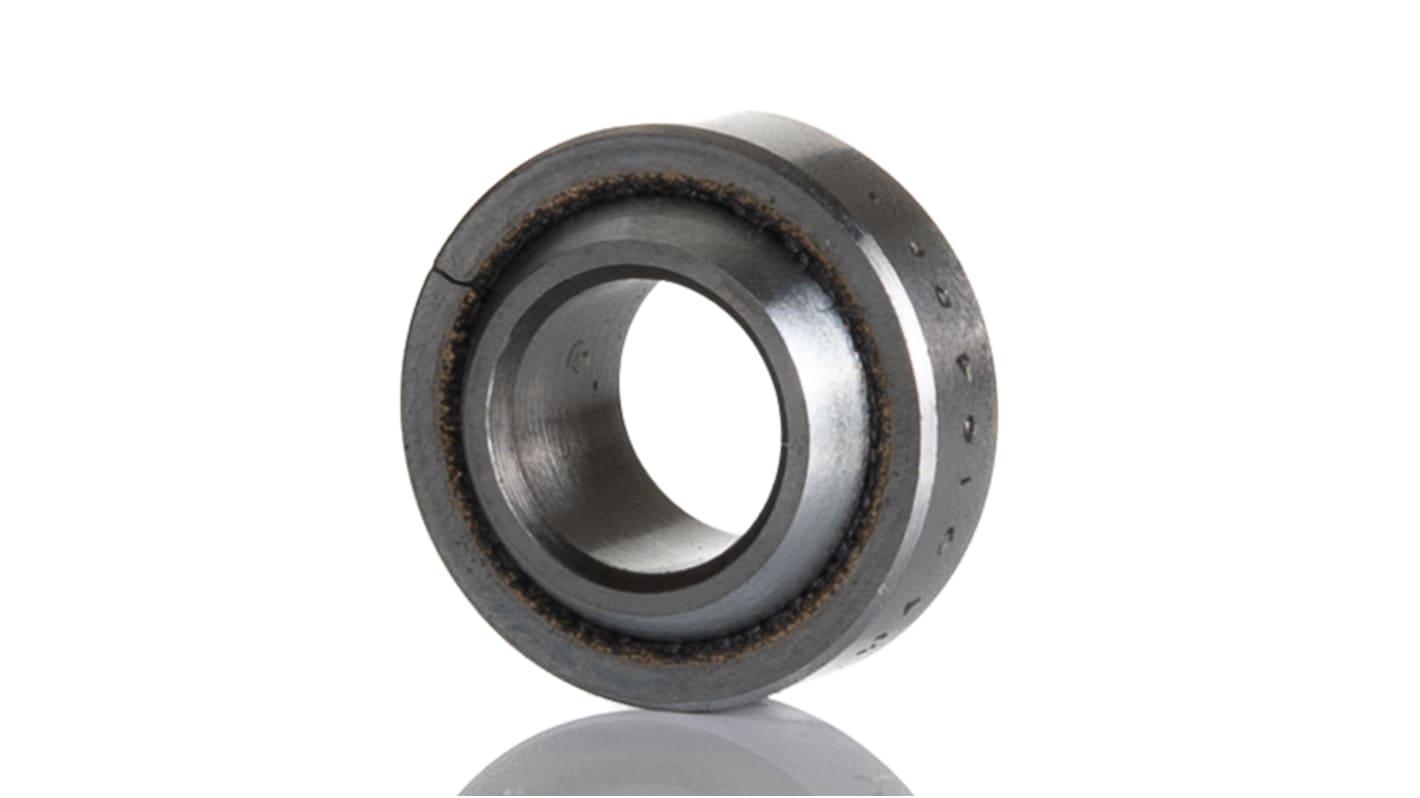

SKF Spherical Bearing, 13mm Raceway Diameter, 15° Angle of Tilt, 8mm Bore Diameter, 16mm OD - GE 8 C
Do you need a bearing that can handle shaft deflection? Choose this steel spherical type from SKF. The component's inner ring tilts to allow shafts inserted into its 8mm-wide bore to move by 15°. Its PTFE sintered bronze contact surface is resistant to wear, so it can stand up to many rotations for long service. With its broad operating temperature range between -50°C and +150°C, this robust unit is ideal for applications in harsh work areas.
Features & Benefits
• Greaseless, maintenance-free bearing type to save you the hassle of applying more lubricant
• Steel rings are durable to ensure a long service life
• Light weight of 8g to avoid putting strain on your shaft
• Supports radial and combined radial and axial loads, so it's a versatile component
Applications
• Oil field exploration
• Power generation
• Wind turbines
• Construction industry
• Aggregate processing
What's the load rating of this unit?
This spherical bearing can withstand loads of up to 5.85kN when moving and 14.6kN when stationary, so it's suitable for heavy-duty applications.
