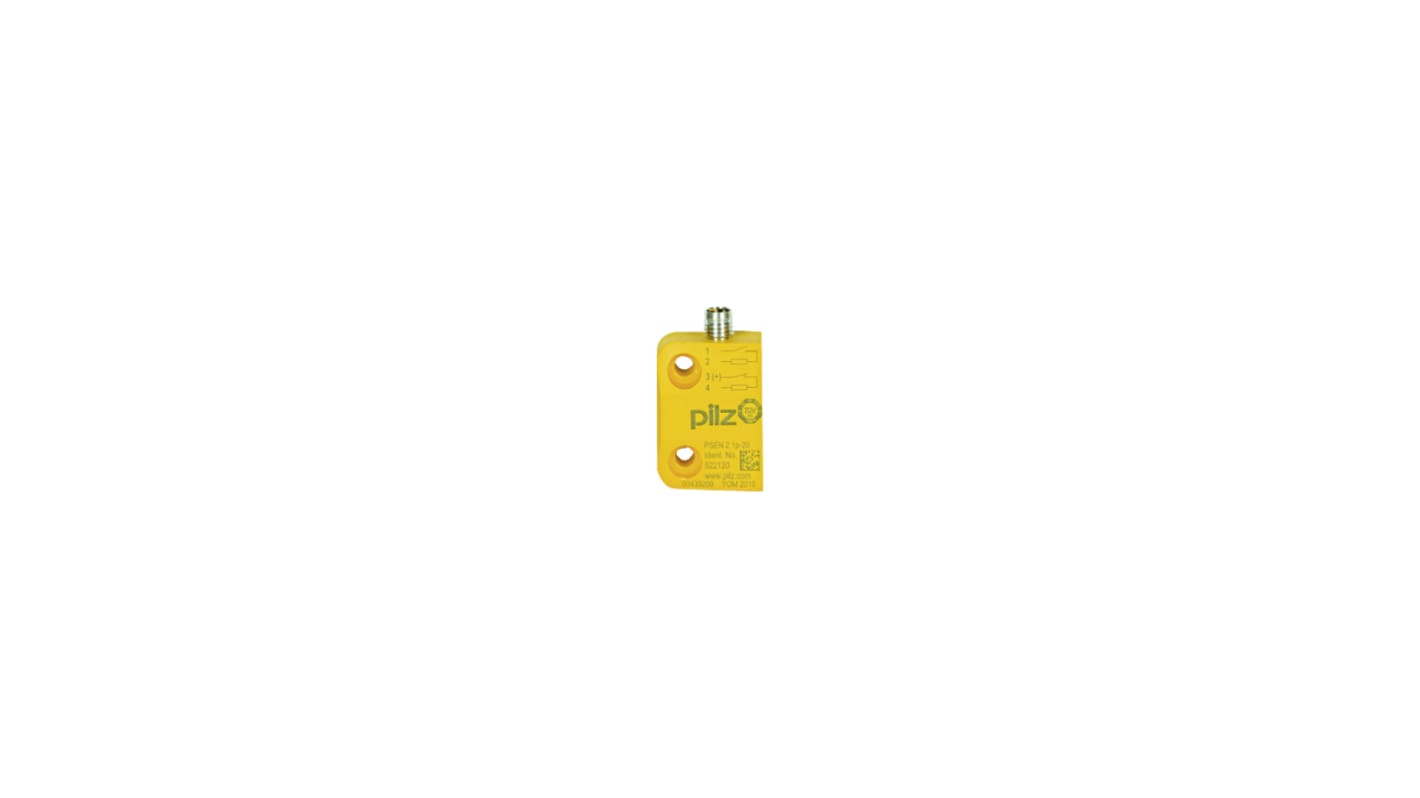

Pilz 506403 Series Magnetic Safety Switch, 24V dc, Polybutylene Terephthalate Housing, 1NC/1NO, M8

The Pilz Magnetic Safety Switch features 1 N/O and 1 N/C contact, a 4-pin M8 male connector, and a square design with an LED indicator. It is rated IP67, providing protection against dust and water. With an operating distance of 6 mm and a height design of 13 mm, this sensor is intended for series connection with PSEN i1. It operates on a 24 V DC supply voltage with a switching voltage of 24 V. Designed to function in ambient temperatures ranging from -25 °C to 70 °C, the switch is supplied as a single sensor without an actuator.

CE and UKCA approved
Housing material upper part is made of PBT
