STMicroelectronics MDmesh Type N-Channel MOSFET, 45 A, 600 V Enhancement, 3-Pin TO-247
- RS庫存編號:
- 920-8742
- 製造零件編號:
- STW45NM60
- 製造商:
- STMicroelectronics

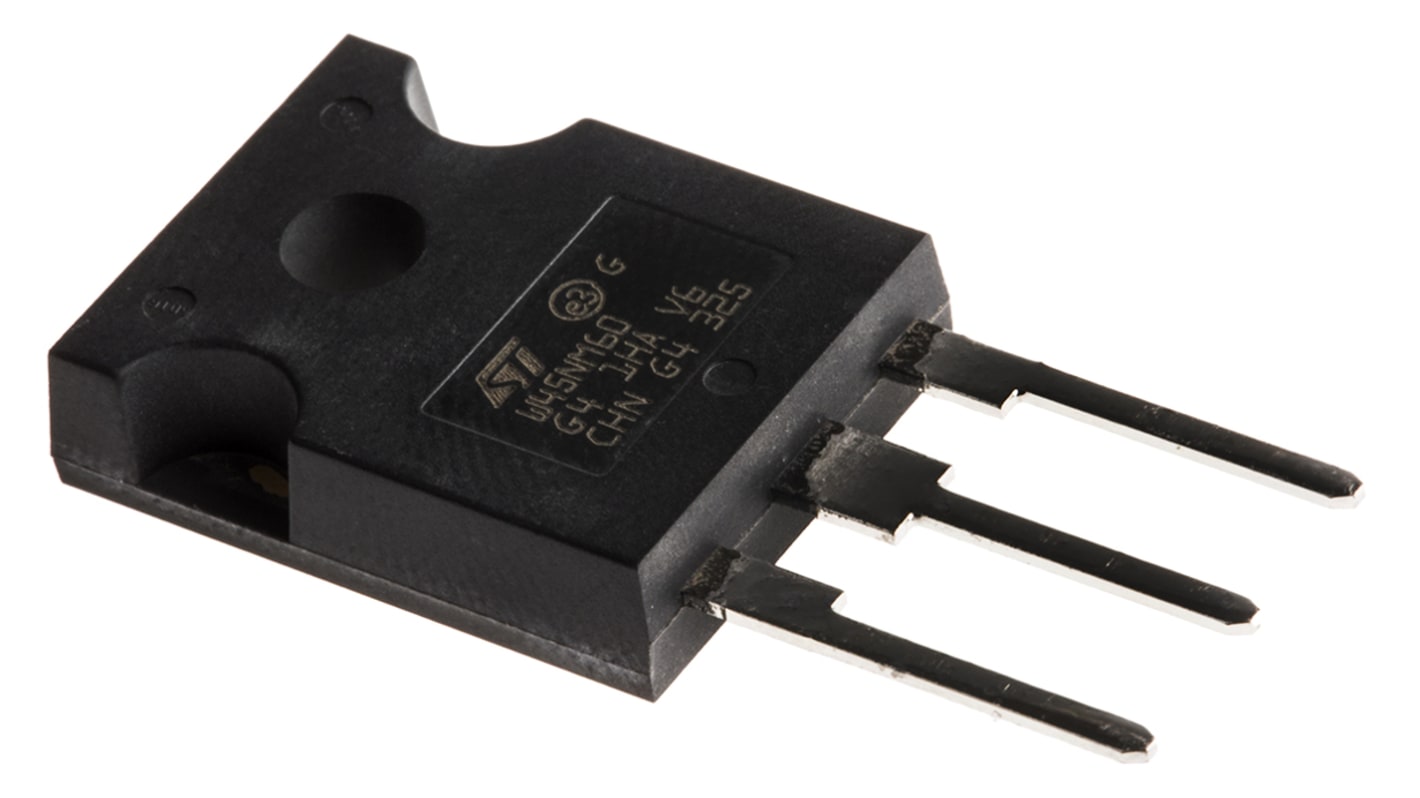

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 管，共 30 件）*
TWD6,975.00
(不含稅)
TWD7,323.60
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 60 件從 2026年5月13日 起裝運發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每管* |
|---|---|---|
| 30 - 30 | TWD232.50 | TWD6,975.00 |
| 60 - 90 | TWD227.40 | TWD6,822.00 |
| 120 + | TWD222.40 | TWD6,672.00 |
* 參考價格
- RS庫存編號:
- 920-8742
- 製造零件編號:
- STW45NM60
- 製造商:
- STMicroelectronics
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | STMicroelectronics | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 45A | |
| Maximum Drain Source Voltage Vds | 600V | |
| Series | MDmesh | |
| Package Type | TO-247 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 110mΩ | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 417W | |
| Maximum Gate Source Voltage Vgs | 30 V | |
| Typical Gate Charge Qg @ Vgs | 96nC | |
| Minimum Operating Temperature | -65°C | |
| Forward Voltage Vf | 1.5V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Length | 15.75mm | |
| Height | 20.15mm | |
| Width | 5.15 mm | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 STMicroelectronics | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 45A | ||
Maximum Drain Source Voltage Vds 600V | ||
Series MDmesh | ||
Package Type TO-247 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 110mΩ | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 417W | ||
Maximum Gate Source Voltage Vgs 30 V | ||
Typical Gate Charge Qg @ Vgs 96nC | ||
Minimum Operating Temperature -65°C | ||
Forward Voltage Vf 1.5V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Length 15.75mm | ||
Height 20.15mm | ||
Width 5.15 mm | ||
Automotive Standard No | ||
N-Channel MDmesh™, 600V/650V, STMicroelectronics
MOSFET Transistors, STMicroelectronics
