Infineon HEXFET Type N-Channel MOSFET, 343 A, 40 V Enhancement, 3-Pin TO-220

RS庫存編號:: 688-7204
製造零件編號:: IRLB3034PBF
製造商:: Infineon

Infineon HEXFET Type N-Channel MOSFET, 343 A, 40 V Enhancement, 3-Pin TO-220

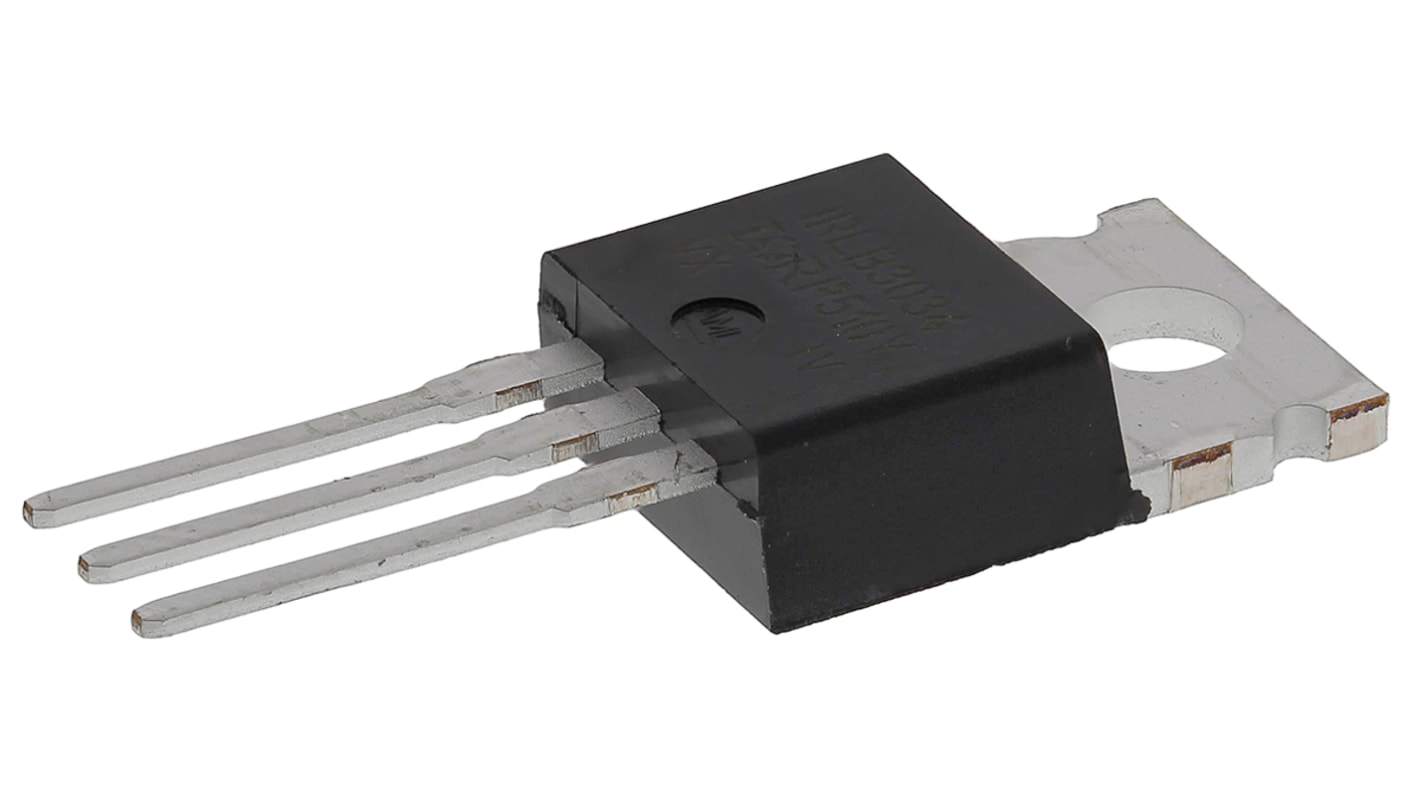

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 包，共 2 件）*

TWD212.00

(不含稅)

TWD222.60

訂單超過 $1,300.00 免費送貨

有庫存

66 件準備從其他地點送貨
加上 136 件從 2026年1月12日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每包*
2 - 12	TWD106.00	TWD212.00
14 - 24	TWD104.00	TWD208.00
26 +	TWD96.50	TWD193.00

* 參考價格

RS庫存編號:: 688-7204
製造零件編號:: IRLB3034PBF
製造商:: Infineon

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Infineon
	Product Type	MOSFET
	Channel Type	Type N
	Maximum Continuous Drain Current Id	343A
	Maximum Drain Source Voltage Vds	40V
	Series	HEXFET
	Package Type	TO-220
	Mount Type	Through Hole
	Pin Count	3
	Maximum Drain Source Resistance Rds	2mΩ
	Channel Mode	Enhancement
	Maximum Gate Source Voltage Vgs	20 V
	Typical Gate Charge Qg @ Vgs	108nC
	Forward Voltage Vf	1.3V
	Minimum Operating Temperature	-55°C
	Maximum Power Dissipation Pd	375W
	Maximum Operating Temperature	175°C
	Standards/Approvals	No
	Length	10.67mm
	Width	4.83 mm
	Height	9.02mm
	Distrelec Product Id	304-43-457
	Automotive Standard	No

	選取全部
	品牌 Infineon
	Product Type MOSFET
	Channel Type Type N
	Maximum Continuous Drain Current Id 343A
	Maximum Drain Source Voltage Vds 40V
	Series HEXFET
	Package Type TO-220
	Mount Type Through Hole
	Pin Count 3
	Maximum Drain Source Resistance Rds 2mΩ
	Channel Mode Enhancement
	Maximum Gate Source Voltage Vgs 20 V
	Typical Gate Charge Qg @ Vgs 108nC
	Forward Voltage Vf 1.3V
	Minimum Operating Temperature -55°C
	Maximum Power Dissipation Pd 375W
	Maximum Operating Temperature 175°C
	Standards/Approvals No
	Length 10.67mm
	Width 4.83 mm
	Height 9.02mm
	Distrelec Product Id 304-43-457
	Automotive Standard No

登入下載 CAD 模型

Infineon HEXFET Series MOSFET, 343A Maximum Continuous Drain Current, 40V Maximum Drain Source Voltage - IRLB3034PBF

This high-performance MOSFET is designed for demanding applications in automation and electronics. With an enhancement mode configuration and a maximum drain-source voltage of 40V, it ensures reliable operation in various conditions. The TO-220AB package type facilitates easy mounting, making it suitable for various designs. Its compact dimensions of 10.67mm in length, 4.83mm in width, and 9.02mm in height further enhance its versatility.

Features & Benefits

• Capable of handling a maximum continuous drain current of 343A

• Optimised for logic level drive for simplified control

• Designed for high-speed power switching requirements

• Wide operating temperature range from -55°C to +175°C

• Superior gate threshold of 1V to 2.5V benefits low voltage operations

Applications

• Ideal for DC motor drive systems

• Utilised in high efficiency synchronous rectification setups

• Suitable for uninterruptible power supplies

• Effective in hard switched and high-frequency circuits

What are the maximum power dissipation capabilities of this component?

The device can dissipate up to 375W under optimal conditions, allowing it to manage significant heat loads in demanding applications.

How does the low RDS(on) contribute to performance?

The low on-resistance of 2mΩ reduces energy losses, enabling higher efficiency and cooler operation, essential for high current applications.

Can this MOSFET be used in automation systems?

Yes, due to its high current capacity and reliable switching performance, it is well-suited for various automation applications, enhancing efficiency and control.

What mounting options does this component offer?

It employs a through-hole mounting type, simplifying integration into various circuit designs while ensuring secure connections.
