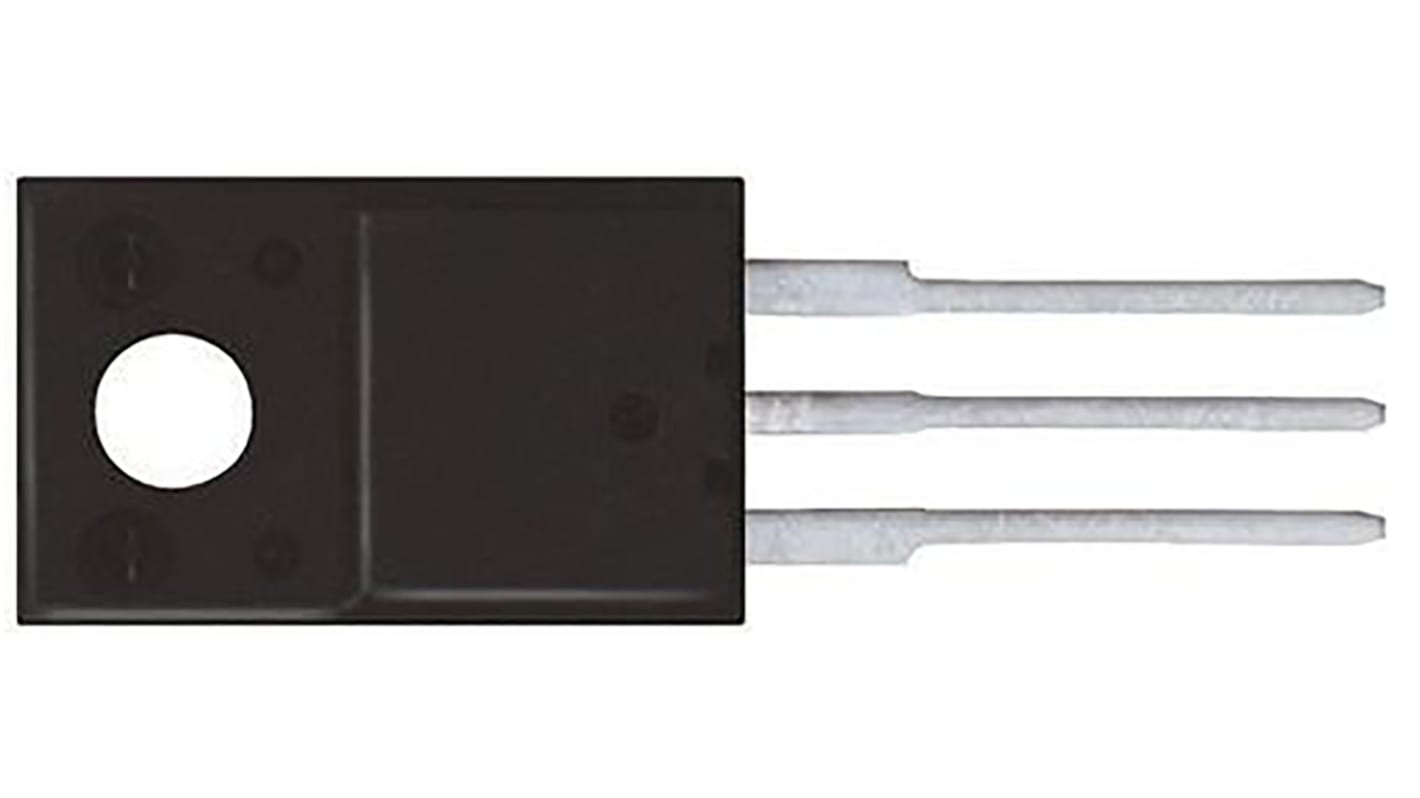

onsemi QFET Type N-Channel MOSFET, 3 A, 800 V Enhancement, 3-Pin TO-220 FQPF3N80C
- RS庫存編號:
- 671-5250
- 製造零件編號:
- FQPF3N80C
- 製造商:
- onsemi
可享批量折扣
小計（1 包，共 5 件）*
TWD205.00
(不含稅)
TWD215.25
(含稅)
添加 35 件 件可免費送貨
供應短缺
- 加上 20 件從 2026年2月23日 起發貨
- 加上 160 件從 2026年3月02日 起發貨
我們目前的可售庫存有限，並且我們的供應商預計會出現供應短缺的狀況。
單位 | 每單位 | 每包* |
|---|---|---|
| 5 - 10 | TWD41.00 | TWD205.00 |
| 15 - 20 | TWD40.40 | TWD202.00 |
| 25 + | TWD40.00 | TWD200.00 |
* 參考價格
- RS庫存編號:
- 671-5250
- 製造零件編號:
- FQPF3N80C
- 製造商:
- onsemi
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | onsemi | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 3A | |
| Maximum Drain Source Voltage Vds | 800V | |
| Package Type | TO-220 | |
| Series | QFET | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 4.8Ω | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 13nC | |
| Forward Voltage Vf | 1.4V | |
| Maximum Gate Source Voltage Vgs | 30 V | |
| Maximum Power Dissipation Pd | 39W | |
| Maximum Operating Temperature | 150°C | |
| Width | 4.7 mm | |
| Height | 9.19mm | |
| Length | 10.16mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 onsemi | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 3A | ||
Maximum Drain Source Voltage Vds 800V | ||
Package Type TO-220 | ||
Series QFET | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 4.8Ω | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 13nC | ||
Forward Voltage Vf 1.4V | ||
Maximum Gate Source Voltage Vgs 30 V | ||
Maximum Power Dissipation Pd 39W | ||
Maximum Operating Temperature 150°C | ||
Width 4.7 mm | ||
Height 9.19mm | ||
Length 10.16mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
QFET® N-Channel MOSFET, up to 5.9A, Fairchild Semiconductor
Fairchild Semiconductor’s new QFET® Planar MOSFETs use advanced, proprietary technology to offer best-in-class operating performance for a wide range of applications, including power supplies, PFC (Power Factor Correction), DC-DC Converters, Plasma Display Panels (PDP), lighting ballasts, and motion control.
They offer reduced on-state loss by lowering on-resistance (RDS(on)), and reduced switching loss by lowering gate charge (Qg) and output capacitance (Coss). By using Advanced QFET® process technology, Fairchild can offer an improved figure of merit (FOM) over competing Planar MOSFET devices.
MOSFET Transistors, ON Semi
ON Semi offers a substantial portfolio of MOSFET devices that includes high-voltage (>250V) and low-voltage (<250V) types. The Advanced silicon technology provides smaller die sizes, which it is incorporated into multiple industry-standard and thermally-enhanced packages.
ON Semi MOSFETs provide superior design reliability from reduced voltage spikes and overshoot, to lower junction capacitance and reverse recovery charge, to elimination of additional external components to keep systems up and running longer.
