STMicroelectronics STripFET N-Channel MOSFET, 16 A, 60 V Enhancement, 3-Pin TO-220 STP16NF06
- RS庫存編號:
- 486-2206
- 製造零件編號:
- STP16NF06
- 製造商:
- STMicroelectronics

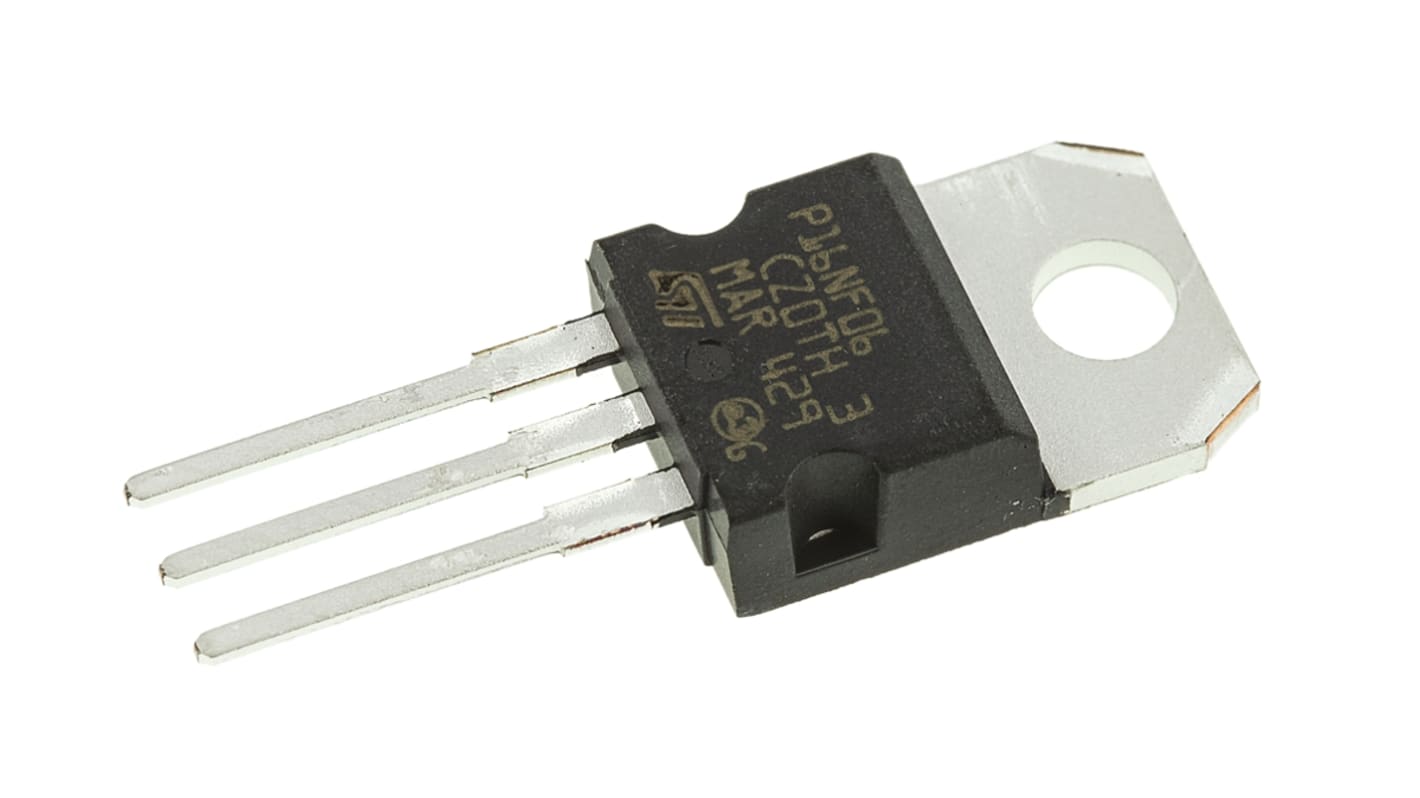

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 包，共 5 件）*
TWD299.00
(不含稅)
TWD313.95
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 360 件從 2026年11月09日 起發貨
- 加上 140 件從 2026年11月16日 起發貨
- 加上 900 件從 2026年12月30日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每包* |
|---|---|---|
| 5 - 10 | TWD59.80 | TWD299.00 |
| 15 - 20 | TWD56.00 | TWD280.00 |
| 25 + | TWD55.20 | TWD276.00 |
* 參考價格
- RS庫存編號:
- 486-2206
- 製造零件編號:
- STP16NF06
- 製造商:
- STMicroelectronics
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | STMicroelectronics | |
| Channel Type | N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 16A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | TO-220 | |
| Series | STripFET | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 100mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | -20V, +20V | |
| Typical Gate Charge Qg @ Vgs | 10nC | |
| Maximum Power Dissipation Pd | 45W | |
| Forward Voltage Vf | 1.3V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Length | 10.4mm | |
| Width | 4.6mm | |
| Standards/Approvals | No | |
| Height | 15.75mm | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 STMicroelectronics | ||
Channel Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 16A | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type TO-220 | ||
Series STripFET | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 100mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs -20V, +20V | ||
Typical Gate Charge Qg @ Vgs 10nC | ||
Maximum Power Dissipation Pd 45W | ||
Forward Voltage Vf 1.3V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Length 10.4mm | ||
Width 4.6mm | ||
Standards/Approvals No | ||
Height 15.75mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MA
N-Channel STripFET™, STMicroelectronics
MOSFET Transistors, STMicroelectronics
