Infineon IPW N-Channel MOSFET, 60 A, 75 V, 3-Pin TO-247 IPW60R045CPAFKSA1
- RS庫存編號:
- 244-2928
- 製造零件編號:
- IPW60R045CPAFKSA1
- 製造商:
- Infineon

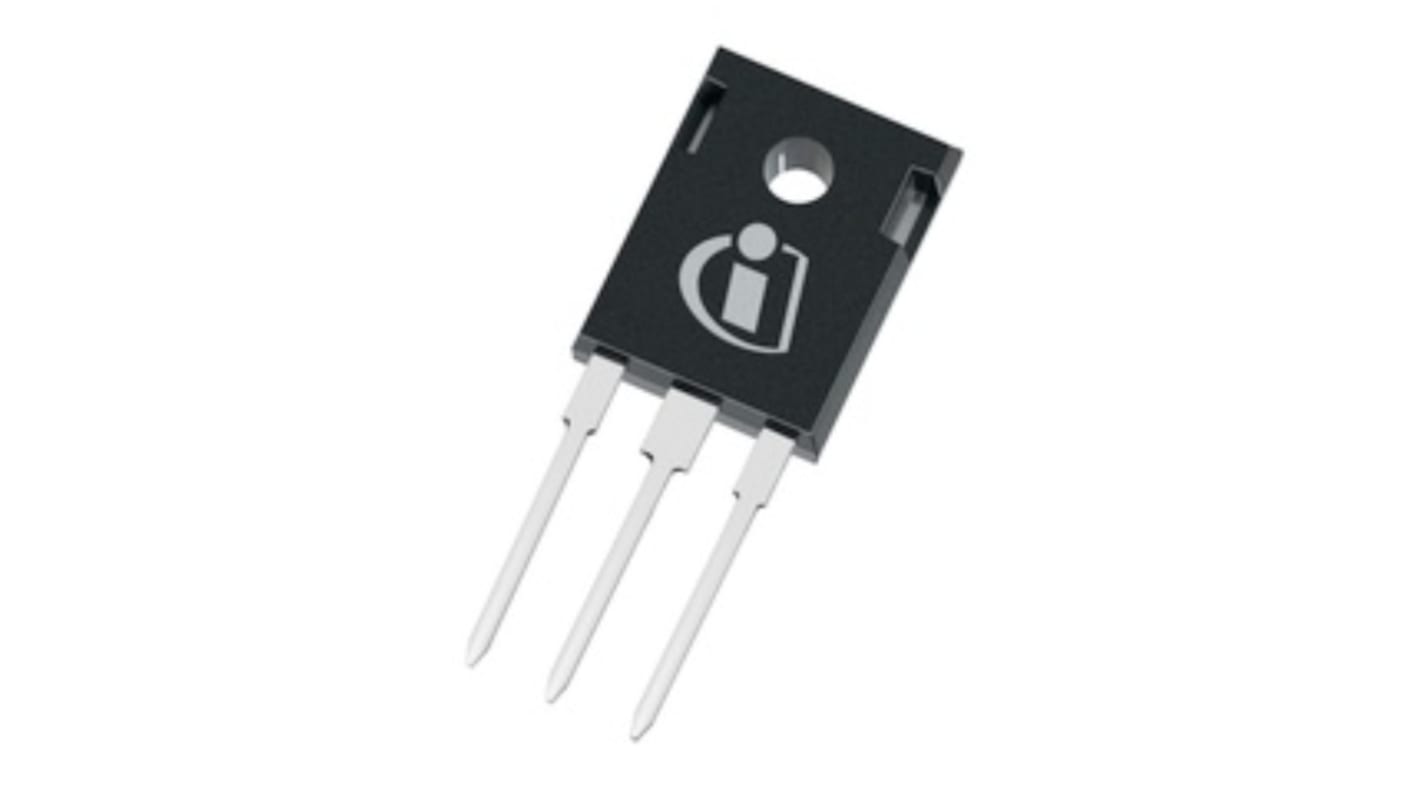

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 件）*
TWD738.00
(不含稅)
TWD774.90
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 127 件從 2026年11月02日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | TWD738.00 |
| 10 - 39 | TWD724.00 |
| 40 - 79 | TWD718.00 |
| 80 - 119 | TWD699.00 |
| 120 + | TWD679.00 |
* 參考價格
- RS庫存編號:
- 244-2928
- 製造零件編號:
- IPW60R045CPAFKSA1
- 製造商:
- Infineon
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Infineon | |
| Channel Type | N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 60A | |
| Maximum Drain Source Voltage Vds | 75V | |
| Package Type | TO-247 | |
| Series | IPW | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 3mΩ | |
| Typical Gate Charge Qg @ Vgs | 80nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20V | |
| Forward Voltage Vf | 1.3V | |
| Maximum Power Dissipation Pd | 81W | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| 選取全部 | ||
|---|---|---|
品牌 Infineon | ||
Channel Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 60A | ||
Maximum Drain Source Voltage Vds 75V | ||
Package Type TO-247 | ||
Series IPW | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 3mΩ | ||
Typical Gate Charge Qg @ Vgs 80nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20V | ||
Forward Voltage Vf 1.3V | ||
Maximum Power Dissipation Pd 81W | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
The Infineon IPW60R045CPAFKSA1 MOSFET is specially designed for DC/DC converters for Automotive Applications.
Worldwide best R ds,on in TO247
Ultra low gate charge
Extreme dv/dt rated
High peak current capability
Automotive AEC Q101 qualified
Green package (RoHS compliant)
