onsemi NTMFS Type N-Channel MOSFET, 110 A, 100 V N, 8-Pin PQFN
- RS庫存編號:
- 229-6472
- 製造零件編號:
- NTMFS7D8N10GTWG
- 製造商:
- onsemi

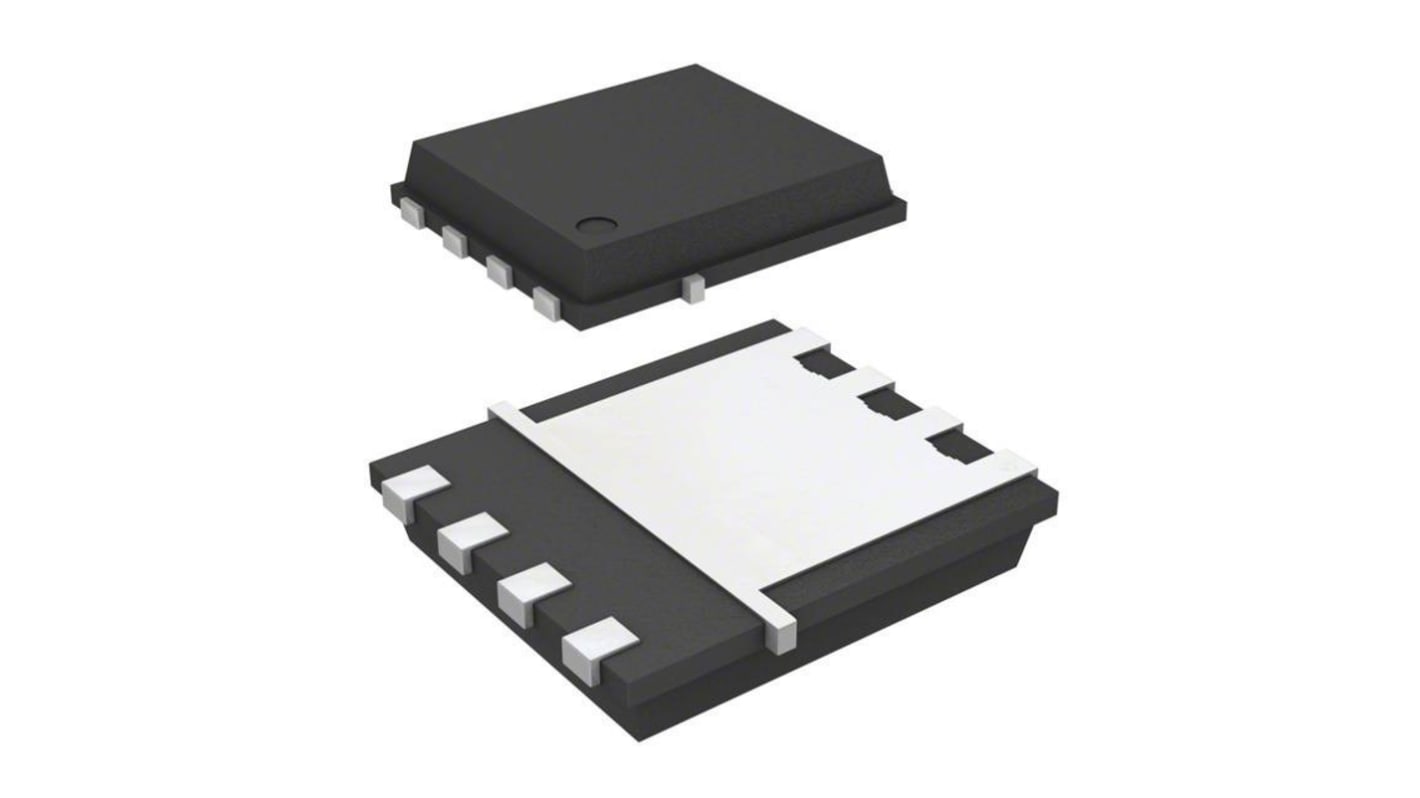

此圖片僅供參考，請參閲產品詳細資訊及規格
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 229-6472
- 製造零件編號:
- NTMFS7D8N10GTWG
- 製造商:
- onsemi
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | onsemi | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 110A | |
| Maximum Drain Source Voltage Vds | 100V | |
| Package Type | PQFN | |
| Series | NTMFS | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 7.6mΩ | |
| Channel Mode | N | |
| Forward Voltage Vf | 0.84V | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 92nC | |
| Maximum Power Dissipation Pd | 187W | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Height | 6mm | |
| Length | 5mm | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 onsemi | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 110A | ||
Maximum Drain Source Voltage Vds 100V | ||
Package Type PQFN | ||
Series NTMFS | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 7.6mΩ | ||
Channel Mode N | ||
Forward Voltage Vf 0.84V | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 92nC | ||
Maximum Power Dissipation Pd 187W | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Height 6mm | ||
Length 5mm | ||
Automotive Standard No | ||
The ON Semiconductor N-channel MOSFET is produced using advanced power trench process that incorporates shielded gate technology. This process has been optimized to minimize on-state resistance and yet maintain superior switching performance with best in class soft body diode.
Minimize conduction losses
High peak UIS current capability for ruggedness
Halogen-free
Pb-free
