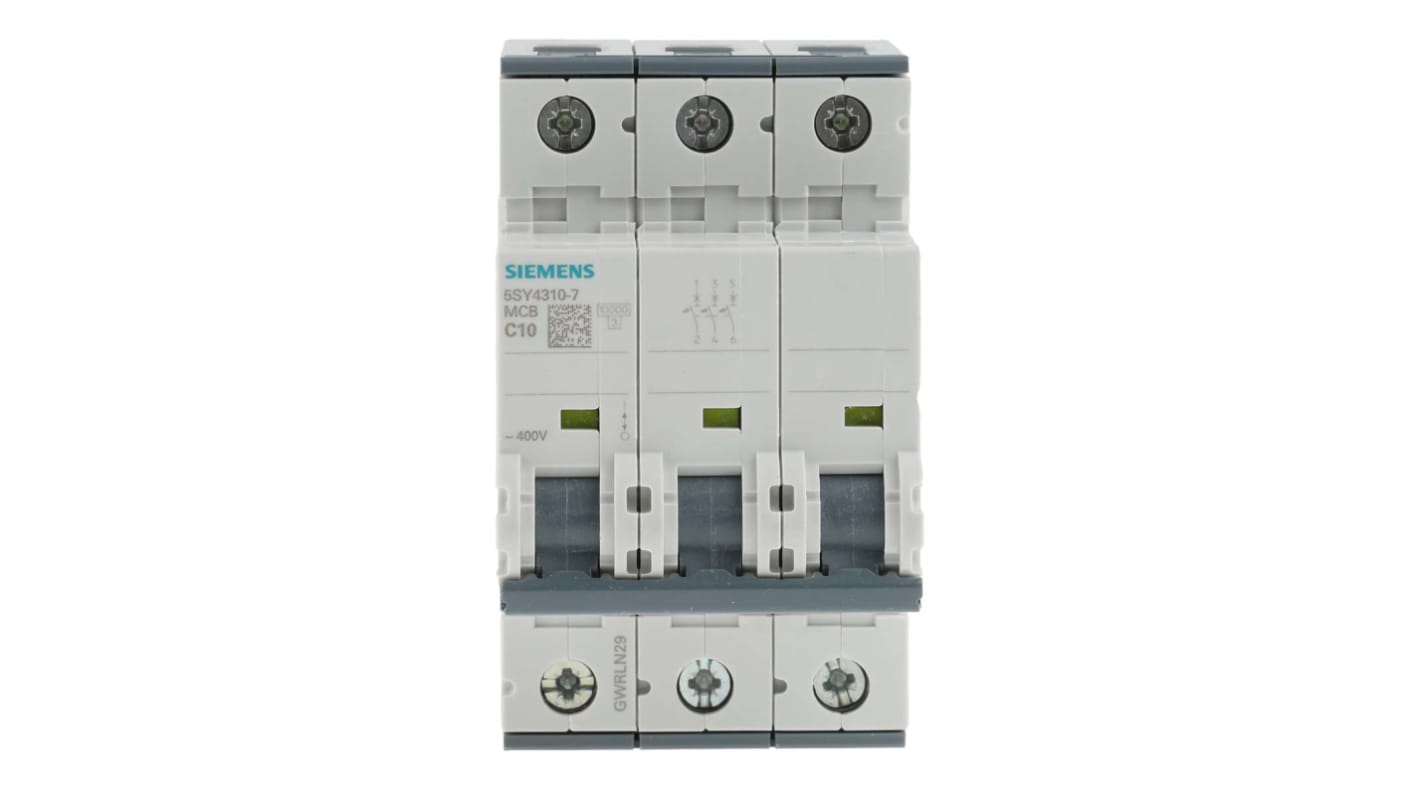

Siemens SENTRON 5SY4 Miniature Circuit Breaker, 3-Pole, 10 A, Type C, 400 V ac AC, 60 V dc DC, 10 kA Breaking Capacity
- RS庫存編號:
- 772-1372
- Distrelec 貨號:
- 136-07-820
- 製造零件編號:
- 5SY4310-7
- 製造商:
- Siemens
小計（1 件）*
TWD2,589.00
(不含稅)
TWD2,718.45
(含稅)
訂單超過 $1,300.00 免費送貨
有限的庫存
- 17 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD2,589.00 |
* 參考價格
- RS庫存編號:
- 772-1372
- Distrelec 貨號:
- 136-07-820
- 製造零件編號:
- 5SY4310-7
- 製造商:
- Siemens
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Siemens | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 3 | |
| Current Rating | 10 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 400 V ac | |
| Rated DC Voltage | 60 V dc | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 10kA | |
| Range | SENTRON | |
| Series | 5SY4 | |
| IP Rating | IP20 | |
| Height | 90mm | |
| Width | 53 mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2/UL1077 | |
| Depth | 76mm | |
| 選取全部 | ||
|---|---|---|
品牌 Siemens | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 3 | ||
Current Rating 10 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400 V ac | ||
Rated DC Voltage 60 V dc | ||
Mount Type DIN Rail | ||
Breaking Capacity 10kA | ||
Range SENTRON | ||
Series 5SY4 | ||
IP Rating IP20 | ||
Height 90mm | ||
Width 53 mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2/UL1077 | ||
Depth 76mm | ||
- COO (Country of Origin):
- DE
Siemens MCB, Shock Resistant, DIN Rail Mounting - Sentron Series - 5SY4310-7
To boost safety around mechanical applications involving high inrush currents, opt for this MCB from Siemens. It takes care of shutting down electrical circuits in the event of overcurrent conditions, so that's a load off your mind. As it has type C breaking characteristics, it trips when it receives three to five times its rated current of 10A. This makes it your ideal workmate for high-load industrial tasks such as starting motors or switching on fluorescent lights. Thanks to its three poles, you can use this unit to protect multiple circuits at once.
Features & Benefits
• Effective insulation protects you against voltage surges up to 440V AC
• Mechanical lifespan of 10,000 switching cycles, so you can count on it to last
• IP20 rating means you can touch it without risking an electric shock
• Operating temperature range between -40°C and +70°C for compatibility with harsh environments
• Snaps onto a standard 35mm DIN rail, so mounting is quick and simple
What size wires can I use with this MCB?
The product accepts any wire with a cross-section between 0.75 and 35mm², so you can use it with 18 to 4AWG.
