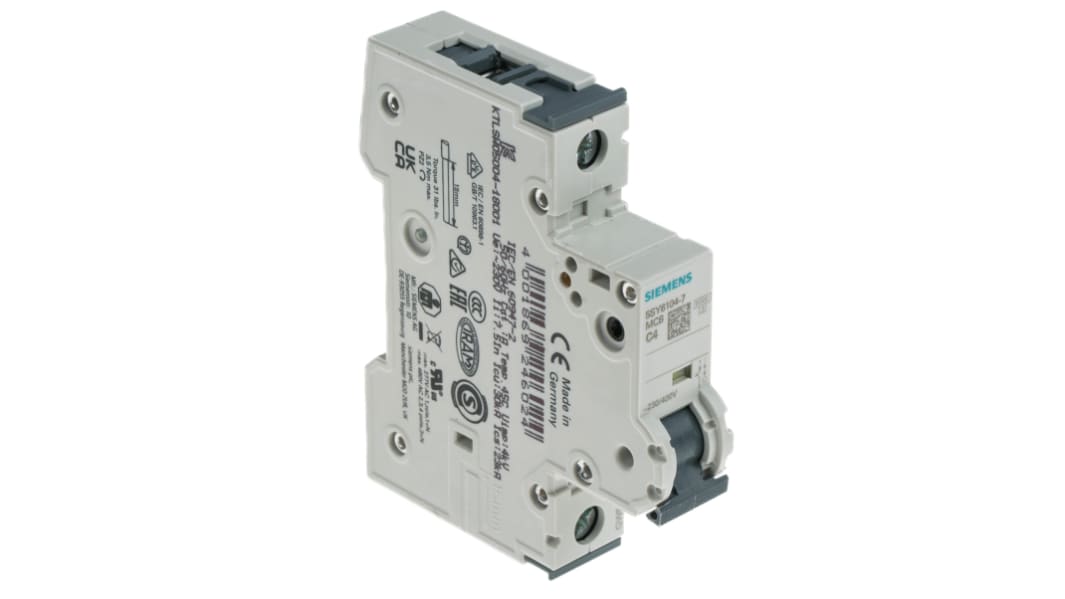

Siemens SENTRON 5SY6 Miniature Circuit Breaker, 1-Pole, 4 A, Type C, 400 V ac AC, 72 V dc DC, 6 kA Breaking Capacity

RS庫存編號:: 521-4951
Distrelec 貨號:: 304-01-319
製造零件編號:: 5SY6104-7
製造商:: Siemens

Siemens SENTRON 5SY6 Miniature Circuit Breaker, 1-Pole, 4 A, Type C, 400 V ac AC, 72 V dc DC, 6 kA Breaking Capacity

小計（1 件）*

TWD799.00

(不含稅)

TWD838.95

訂單超過 $1,300.00 免費送貨

有庫存

加上 75 件從 2026年2月23日起發貨
加上 90 件從 2026年3月11日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	TWD799.00

* 參考價格

RS庫存編號:: 521-4951
Distrelec 貨號:: 304-01-319
製造零件編號:: 5SY6104-7
製造商:: Siemens

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Siemens
	Number of Poles	1
	Product Type	Miniature Circuit Breaker
	Current Rating	4 A
	Tripping Characteristics	Type C
	Rated AC Voltage	400 V ac
	Rated DC Voltage	72 V dc
	Breaking Capacity	6kA
	Mount Type	DIN Rail
	Range	SENTRON
	Series	5SY6
	Terminal Type	Screw
	IP Rating	IP20
	Standards/Approvals	CCC, CE, EAC
	Depth	76mm
	Height	90mm
	Width	17.5 mm
	Tripping Mechanism	Electronic, Thermomagnetic

	選取全部
	品牌 Siemens
	Number of Poles 1
	Product Type Miniature Circuit Breaker
	Current Rating 4 A
	Tripping Characteristics Type C
	Rated AC Voltage 400 V ac
	Rated DC Voltage 72 V dc
	Breaking Capacity 6kA
	Mount Type DIN Rail
	Range SENTRON
	Series 5SY6
	Terminal Type Screw
	IP Rating IP20
	Standards/Approvals CCC, CE, EAC
	Depth 76mm
	Height 90mm
	Width 17.5 mm
	Tripping Mechanism Electronic, Thermomagnetic

登入下載 CAD 模型

COO (Country of Origin):: DE

Siemens MCB, DIN Rail Mounting, 159g Weight - SENTRON Series - 5SY6104-7

Protect electrical systems and devices against overload and short circuits with this MCB from Siemens. It permanently monitors a system and cuts a connected circuit in the event of a power surge, which minimises the risk of damage to equipment. As unaffected loads continue to function, you benefit from increased plant availability. The unit resists vibration and has a wide operating temperature range between -25°C and +55°C, making it compatible with demanding settings. This MCB meets the requirements of automated systems and industrial power supply setups, like those found in data centres and semiconductor industries.

Features & Benefits

• IP20-rated enclosure that's touch-proof and protected against objects larger than 12mm

• Low power loss of 1.3W, for energy efficiency

• Halogen-free, so emits no toxic fumes in the event of a fire

• Compatible with conductor cross sections ranging between 18 and 4AWG, for wiring that best suits your application's needs

How big is this MCB?

This miniature breaker has compact dimensions of 90 (H) x 18 (W) x 76mm (D), so you can save packing space on your circuit board.

Standards

EN 60898, VDE 0641 part of 11, IEC 60898
