ABB LS33P11B11 Series Roller Lever Limit Switch, 1 NO/1 NC, IP66, Zinc Alloy Housing, 500V ac, 10A
- RS庫存編號:
- 259-6088
- 製造零件編號:
- 1SBV012211R1211
- 製造商:
- ABB
小計（1 件）*
TWD1,167.00
(不含稅)
TWD1,225.35
(含稅)
訂單超過 $1,300.00 免費送貨
製造商存貨
- 準備從 2026年11月26日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD1,167.00 |
* 參考價格
- RS庫存編號:
- 259-6088
- 製造零件編號:
- 1SBV012211R1211
- 製造商:
- ABB
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | ABB | |
| Product Type | Limit Switch | |
| Actuator Type | Roller Lever | |
| IP Rating | IP66 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Zinc Alloy | |
| Contact Type | Snap Action | |
| Switching Current | 10A | |
| Terminal Type | Screw | |
| Series | LS33P11B11 | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 500V ac | |
| Maximum Operating Temperature | 70°C | |
| Width | 73mm | |
| Standards/Approvals | UL/CSA, EU Directive 2011/65/EU, IEC 60529, IEC 60947-5-1 | |
| Depth | 30mm | |
| Length | 30mm | |
| Hazardous Area Certification | No | |
| Mounting Orientation | Vertical | |
| Mechanical Life | 30Operations | |
| Conduit Entry | 1 x M20 x 1.5 | |
| 選取全部 | ||
|---|---|---|
品牌 ABB | ||
Product Type Limit Switch | ||
Actuator Type Roller Lever | ||
IP Rating IP66 | ||
Contact Configuration 1 NO/1 NC | ||
Housing Material Zinc Alloy | ||
Contact Type Snap Action | ||
Switching Current 10A | ||
Terminal Type Screw | ||
Series LS33P11B11 | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 500V ac | ||
Maximum Operating Temperature 70°C | ||
Width 73mm | ||
Standards/Approvals UL/CSA, EU Directive 2011/65/EU, IEC 60529, IEC 60947-5-1 | ||
Depth 30mm | ||
Length 30mm | ||
Hazardous Area Certification No | ||
Mounting Orientation Vertical | ||
Mechanical Life 30Operations | ||
Conduit Entry 1 x M20 x 1.5 | ||
- COO (Country of Origin):
- IT
1SBV012211R1211

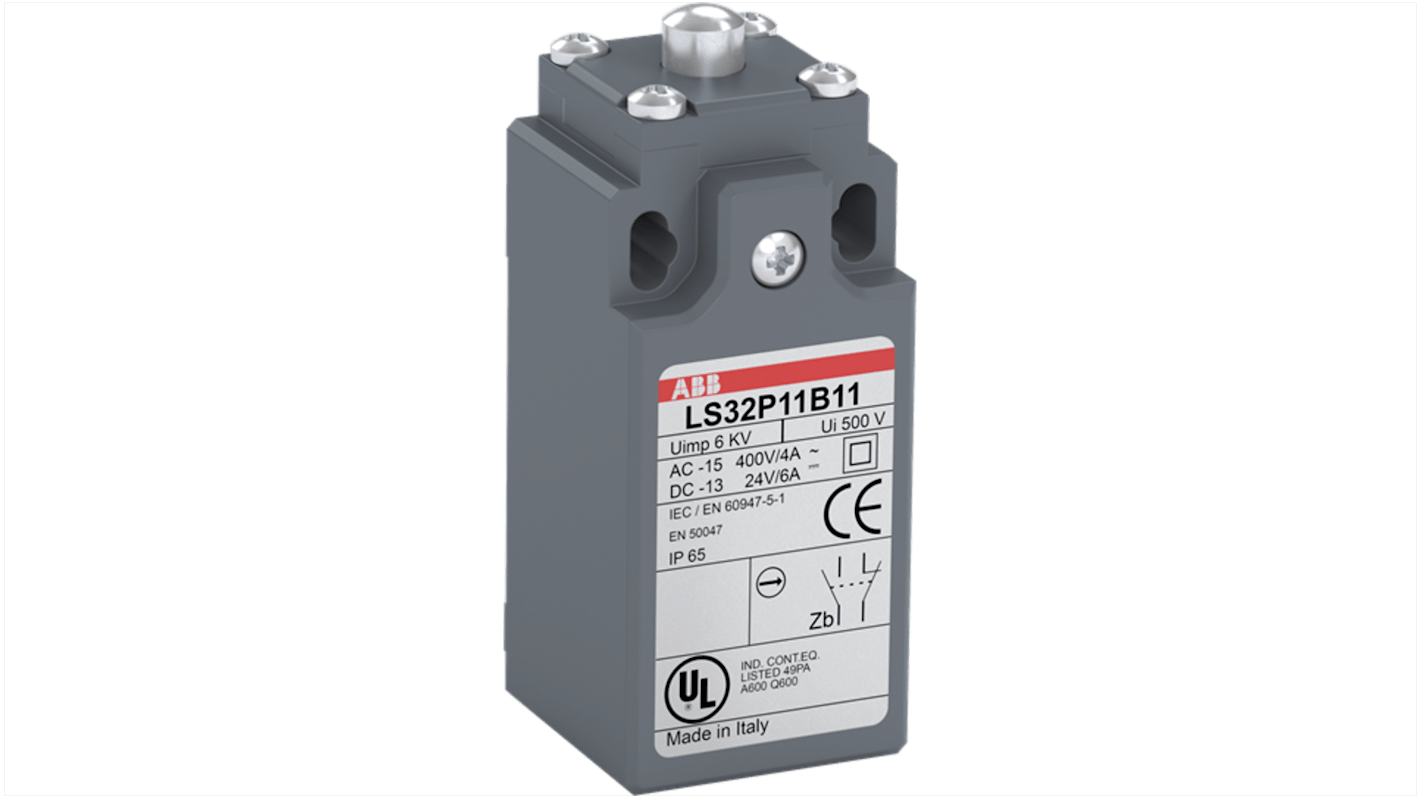

The ABB 30 mm wide standard limit switch is made of fibre-glass reinforced UL-V0 material with 2 mounting holes at the top. It has 1 ISO M20x1.5 cable entry on the bottom, plain steel plunger actuator and 1 N.O + 1 N.C snap action (Zb type) contacts.
30 millions operations B10d value
Degree of protection acc. to IEC 60529 IP65
