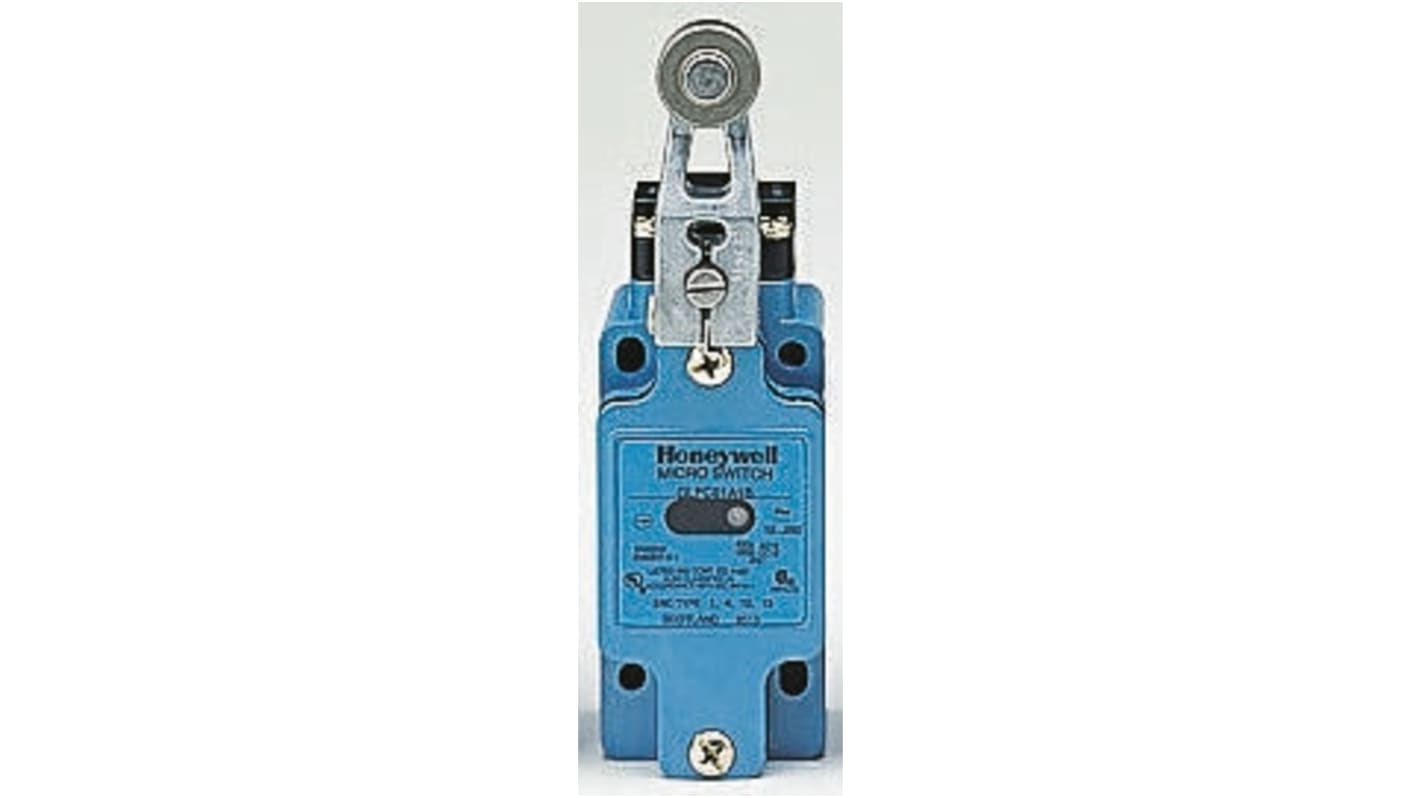

Honeywell Technologies GLF Series Roller Lever Limit Switch, SPDT, IP67, Die Cast Zinc Epoxy Coated Housing, 600V ac, 6A

RS庫存編號:: 186-8497
製造零件編號:: GLFC01A1B
製造商:: Honeywell

Honeywell Technologies GLF Series Roller Lever Limit Switch, SPDT, IP67, Die Cast Zinc Epoxy Coated Housing, 600V ac, 6A

小計（1 件）*

TWD13,555.00

(不含稅)

TWD14,232.75

訂單超過 $1,300.00 免費送貨

暫時缺貨

從 2027年1月27日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	TWD13,555.00

* 參考價格

RS庫存編號:: 186-8497
製造零件編號:: GLFC01A1B
製造商:: Honeywell

規格

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Honeywell
	Product Type	Limit Switch
	Actuator Type	Roller Lever
	IP Rating	IP67
	Contact Configuration	SPDT
	Housing Material	Die Cast Zinc Epoxy Coated
	Contact Type	Snap Action
	Switching Current	6A
	Terminal Type	Screw
	Series	GLF
	Switching DC Voltage	250V dc
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	600V ac
	Maximum Operating Temperature	85°C
	Standards/Approvals	CSA, CE, CCC, UL
	Depth	42mm
	Width	42mm
	Length	145.8mm
	Hazardous Area Certification	No
	Operating Force	0.33Nm
	Conduit Entry	20 mm
	Mechanical Life	15000000Cycles

	選取全部
	品牌 Honeywell
	Product Type Limit Switch
	Actuator Type Roller Lever
	IP Rating IP67
	Contact Configuration SPDT
	Housing Material Die Cast Zinc Epoxy Coated
	Contact Type Snap Action
	Switching Current 6A
	Terminal Type Screw
	Series GLF
	Switching DC Voltage 250V dc
	Minimum Operating Temperature -25°C
	Switching AC Voltage 600V ac
	Maximum Operating Temperature 85°C
	Standards/Approvals CSA, CE, CCC, UL
	Depth 42mm
	Width 42mm
	Length 145.8mm
	Hazardous Area Certification No
	Operating Force 0.33Nm
	Conduit Entry 20 mm
	Mechanical Life 15000000Cycles

COO (Country of Origin):: GB

Honeywell GLF Series Limit Switch, 20mm Conduit Entry, Roller Lever Actuator - GLFC01A1B

This limit switch is a Compact electromechanical actuator designed to detect and interrupt motion in industrial control systems. It is intended for integration into machinery and automation equipment where a robust, sealed switching device with a roller lever actuator is required. The unit is suited to environments demanding a combination of mechanical endurance and moisture/dust protection.

Features and Benefits:

• Snap‑action contacts provide precise switching performance and repeatability
• Single‑pole double‑throw configuration enables versatile circuit control
• Die‑cast zinc enclosure offers Durable protection for internal mechanisms
• IP67 ingress rating allows operation in wet or dusty conditions
• Rated for 600V AC and 250V DC at 6A to handle varied load types
• Mechanical life of 15 million cycles supports long maintenance intervals

Applications

• Suitable for conveyor position sensing in material‑handling systems
• Ideal for limit detection on industrial presses and stamping machines
• Used with automated Gates and safety interlocks in factory automation
• Can be used for end‑of‑travel detection on actuated valves and cylinders

What conduit entry does it accept for cable routing?

It provides a 20mm conduit entry to accommodate standard threaded conduit fittings.

How are external connections MADE to the switch?

Electrical connections are secured via screw terminals designed for reliable termination.

What operating temperature range can I expect?

The device functions between −25 °C and 85 °C for typical industrial ambient conditions.

How much torque is required to actuate the lever?

The operating force is specified as 0.33 N·m, indicating the rotational effort needed for actuation.

What approvals support use in regulated installations?

It carries CSA, CE, CCC and UL approvals for compliance with several regional standards.

Note

These switches are not designed for use in safety critical applications.

Approvals

UL/ UL listed for Canada
