MEAN WELL LED Driver, 24/36 V Output, 25.2 W Output, 700 mA

RS庫存編號:: 738-1624
Distrelec 貨號:: 169-26-625
製造零件編號:: PCD-25-700B
製造商:: MEAN WELL

MEAN WELL LED Driver, 24/36 V Output, 25.2 W Output, 700 mA

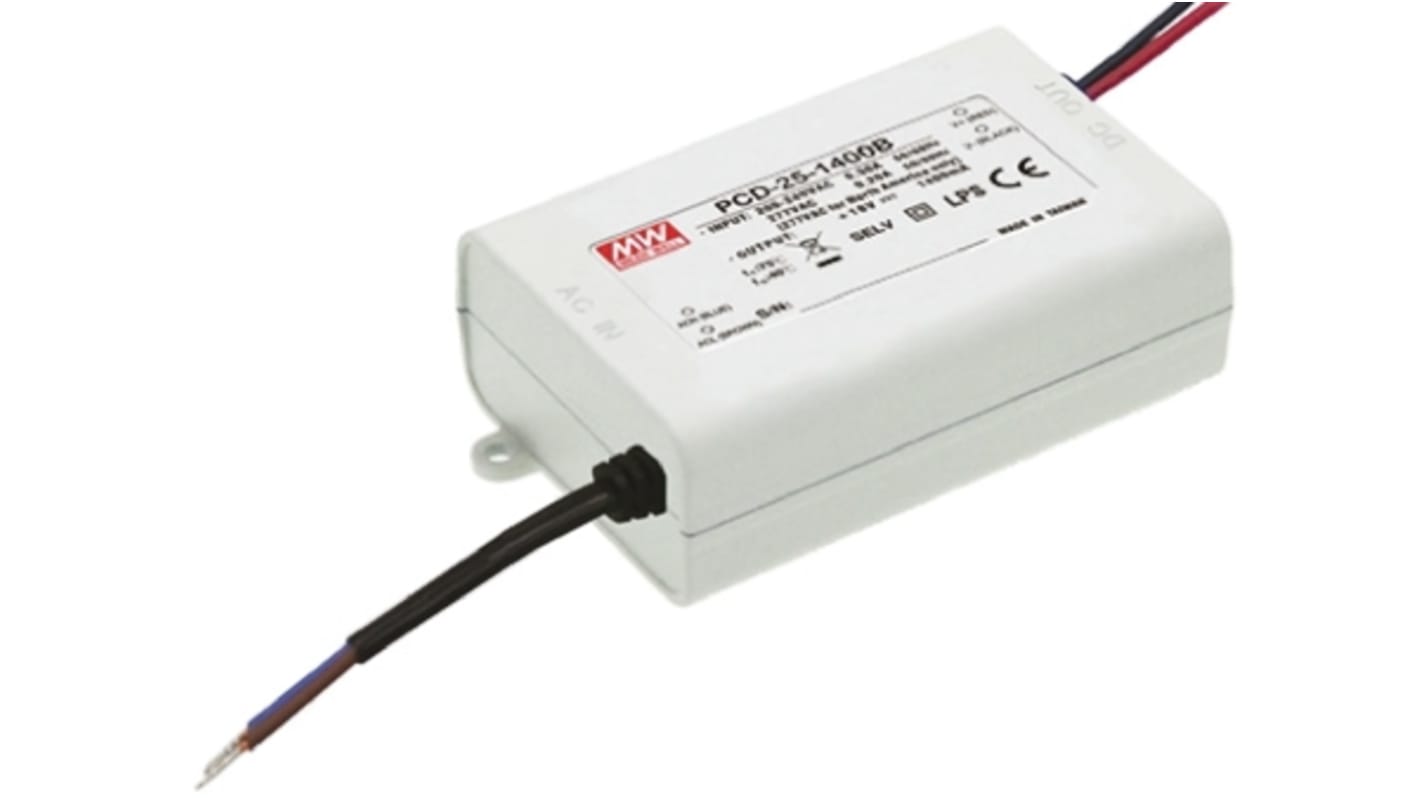

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 件）*

TWD573.00

(不含稅)

TWD601.65

訂單超過 $1,300.00 免費送貨

有庫存

加上 58 件從 2026年2月02日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 - 4	TWD573.00
5 - 9	TWD562.00
10 - 24	TWD551.00
25 +	TWD540.00

* 參考價格

RS庫存編號:: 738-1624
Distrelec 貨號:: 169-26-625
製造零件編號:: PCD-25-700B
製造商:: MEAN WELL

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	MEAN WELL
	Output Voltage	24/36 V
	Product Type	LED Driver
	Maximum Output Power	25.2W
	Input Voltage	180 → 295 V ac
	Mount Type	Screw
	Sub Type	LED Driver
	Terminal Type	Wire
	Input Voltage Type	AC
	IP Rating	IP42
	Operating Modes	Constant Current
	LED Voltage	180/295 V ac
	Driver Current	700 mA
	Number of Outputs	5
	Standards/Approvals	UL, CE, TUV, SELV, ENEC, CSA
	Series	PCD-25
	Configuration	Enclosed
	Primary Type	AC-AC
	Power Dissipation	25.2W

	選取全部
	品牌 MEAN WELL
	Output Voltage 24/36 V
	Product Type LED Driver
	Maximum Output Power 25.2W
	Input Voltage 180 → 295 V ac
	Mount Type Screw
	Sub Type LED Driver
	Terminal Type Wire
	Input Voltage Type AC
	IP Rating IP42
	Operating Modes Constant Current
	LED Voltage 180/295 V ac
	Driver Current 700 mA
	Number of Outputs 5
	Standards/Approvals UL, CE, TUV, SELV, ENEC, CSA
	Series PCD-25
	Configuration Enclosed
	Primary Type AC-AC
	Power Dissipation 25.2W

登入下載 CAD 模型

Mean Well 16W & 25W Dimmable Constant Current LED Driver / Power Supply - PCD Series

PCD series 16W and 25W constant current dimmable LED drivers / power supply with AC phase cut dimming and built in active PFC function. These low cost, highly reliable dimmable LED drivers / power supplies have a fully isolated plastic case and are suitable for indoor lighting applications.

AC phase-cut dimming

Work with leading edge and trailing edge dimmers

Fully isolated plastic case

Free air convection cooling

Built-in active PFC function

100% full load burn-in test

Short circuit, overload and over temperature protection

EMC compliance to EN55015 Class B

Harmonic current compliance to EN61000-3-2 Class C, EN61000-3-3

Mean Well LED Drivers / Power Supplies

Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
MTBF to MIL-HDBK-217F
16W versions: Derate output above 50°C operating temperature
25W versions: Derate output above 40°C operating temperature

Standards

TUV EN61347-1, EN1347-2-13 approved; Design refer to UL1310 Class 2
