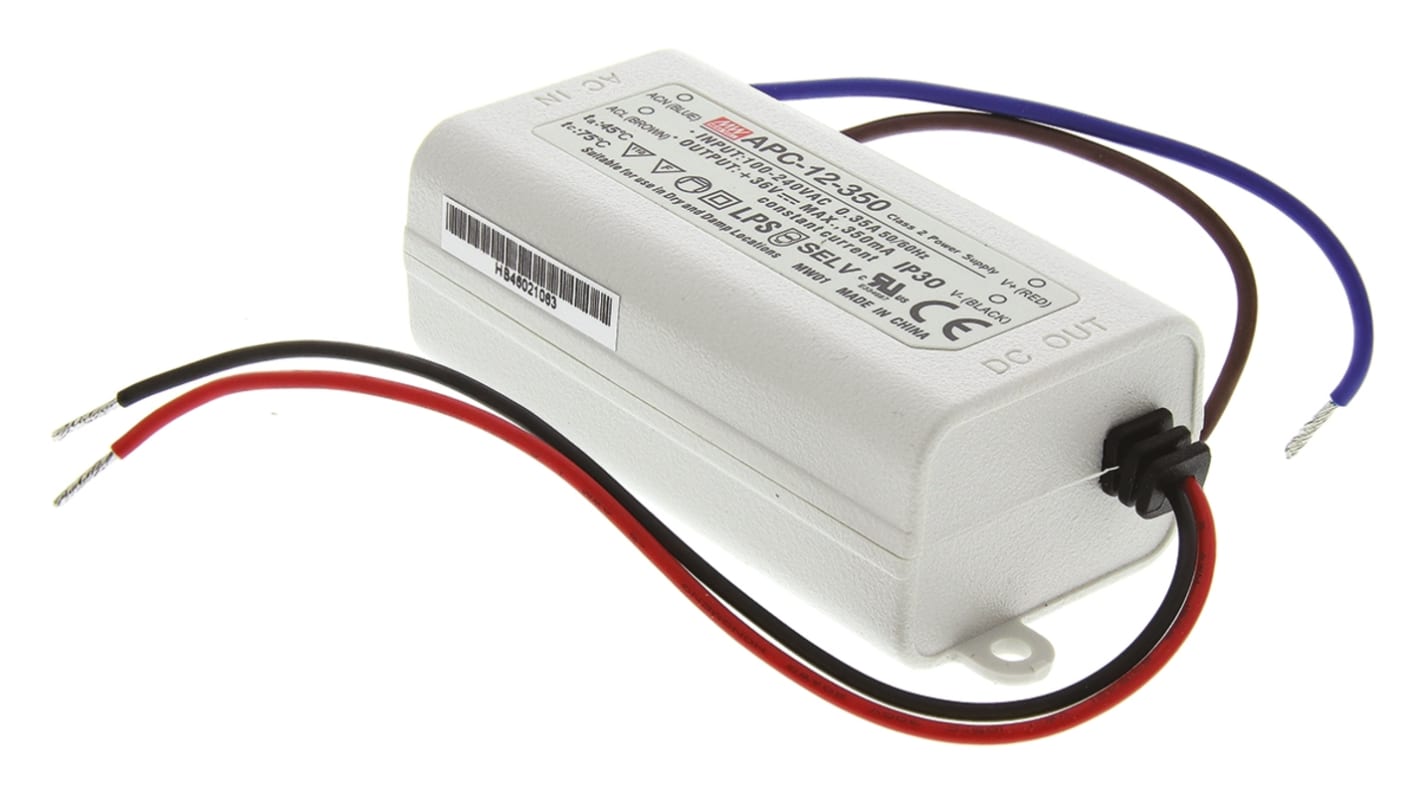

MEAN WELL LED Driver, 9 → 36V Output, 12.6W Output, 350mA Output, Constant Current

查看所有LED Drivers
可享批量折扣

小計（1 件）*

TWD230.00

(不含稅)

TWD241.50

(含稅)

Add to Basket
選擇或輸入數量
有庫存
  • 19 件準備從其他地點送貨
  • 加上 120 件從 2026年4月03日 起發貨
  • 加上 120 件從 2026年6月05日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 4TWD230.00
5 - 9TWD225.00
10 - 24TWD219.00
25 +TWD216.00

* 參考價格

RS庫存編號:
738-1561
Distrelec 貨號:
110-81-181
製造零件編號:
APC-12-350
製造商:
MEAN WELL
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

MEAN WELL

Output Voltage

9 → 36V

Maximum Output Power

12.6W

Output Current

350mA

Dimmable

No

Input Voltage

127 → 370 V dc, 90 → 264 V ac

Operation

Constant Current

LED Driver Type

LED Driver

AC or DC Input Voltage

ac, dc

IP Rating

IP30

Voltage Rating

127 → 370 V dc, 90 → 264 V ac

Mean Well 12W and 16W Constant Current LED Driver / Power Supply - APC-12 and 16 Series


APC series 12W and 16W constant current LED driver / power supply with universal AC input. These low cost, highly reliable LED drivers / power supplies have a fully isolated plastic case and suitable uses include LED lighting and moving sign applications.

Full range universal AC input
Small, compact, fully isolated plastic case
Free air convection cooling
100% full load burn-in test
Short circuit, overload and over voltage protection
Pass LPS
EMC compliance to EN55022 (CISPR22) Class B, EN55015, EN61547
Harmonic current compliance to EN61000-3-2 Class A, EN61000-3-3

Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
MTBF to MIL-HDBK-217F
Derate output above 45°C operating temperature - stock number 738-1561 and 738-1570
Derate output above 40°C operating temperature - stock number 738-1583 and 738-1592

Standards

Design refer to TUV EN60950-1, EN61347-2-13, UL8750
