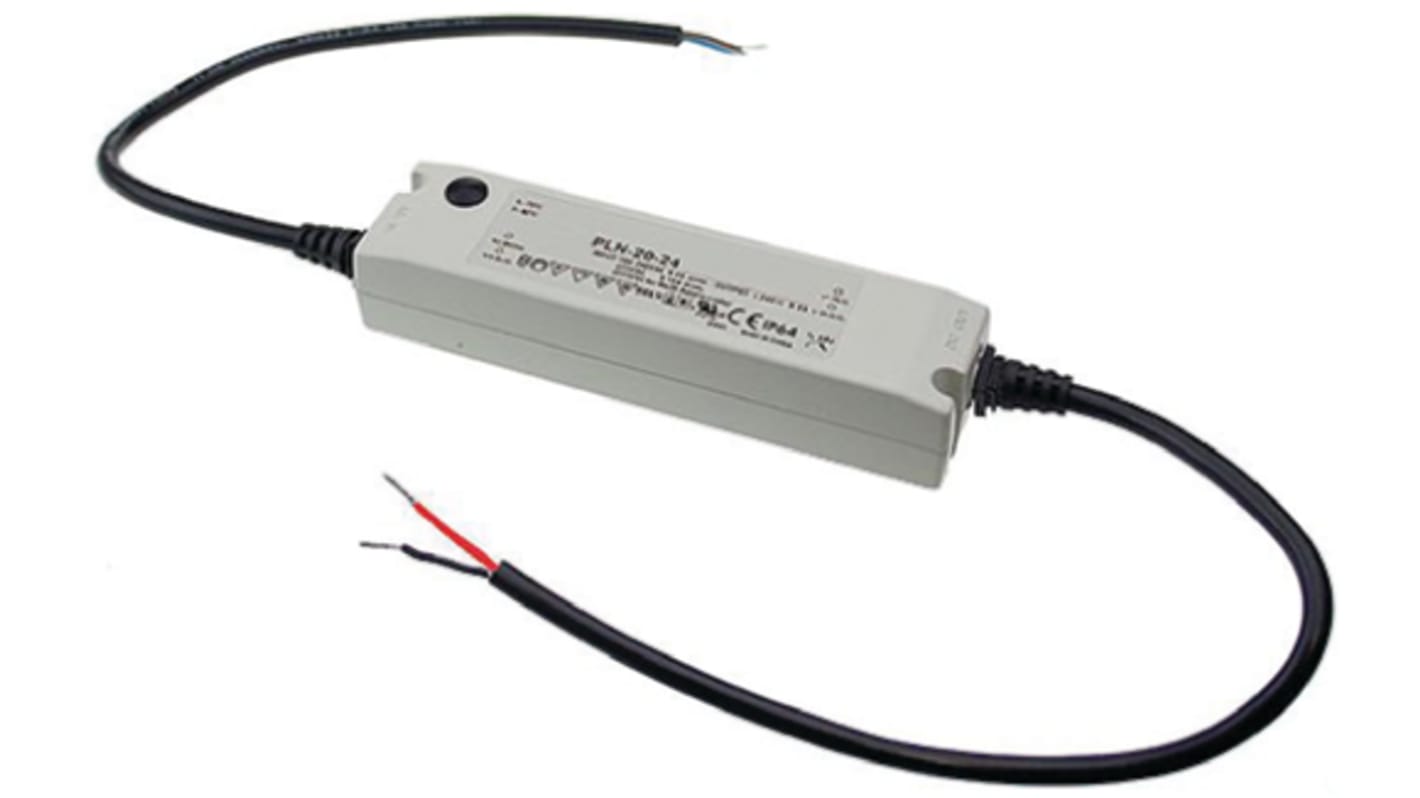

MEAN WELL LED Driver, 24 V Output, 19.2 W Output, 0.8 A
- RS庫存編號:
- 721-1787
- Distrelec 貨號:
- 303-72-479
- 製造零件編號:
- PLN-20-24
- 製造商:
- MEAN WELL
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 件）*
TWD585.00
(不含稅)
TWD614.25
(含稅)
庫存資訊目前無法存取 - 請稍後再回來查看
單位 | 每單位 |
|---|---|
| 1 - 4 | TWD585.00 |
| 5 - 9 | TWD567.00 |
| 10 - 24 | TWD550.00 |
| 25 - 49 | TWD539.00 |
| 50 + | TWD528.00 |
* 參考價格
- RS庫存編號:
- 721-1787
- Distrelec 貨號:
- 303-72-479
- 製造零件編號:
- PLN-20-24
- 製造商:
- MEAN WELL
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | MEAN WELL | |
| Output Voltage | 24 V | |
| Product Type | LED Driver | |
| Maximum Output Power | 19.2W | |
| Input Voltage | 127 → 392 V dc, 90 → 277 V ac | |
| Mount Type | Panel | |
| Sub Type | LED Driver | |
| Input Voltage Type | AC/DC | |
| Terminal Type | Wire | |
| IP Rating | IP64 | |
| Driver Current | 0.8 A | |
| Operating Modes | Constant Voltage | |
| Series | PLN-20 | |
| Standards/Approvals | UL, TUV, SELV, IEC, EN, CE, CB | |
| Number of Outputs | 1 | |
| Configuration | Encapsulated | |
| Power Dissipation | 19.2W | |
| Primary Type | AC-DC | |
| 選取全部 | ||
|---|---|---|
品牌 MEAN WELL | ||
Output Voltage 24 V | ||
Product Type LED Driver | ||
Maximum Output Power 19.2W | ||
Input Voltage 127 → 392 V dc, 90 → 277 V ac | ||
Mount Type Panel | ||
Sub Type LED Driver | ||
Input Voltage Type AC/DC | ||
Terminal Type Wire | ||
IP Rating IP64 | ||
Driver Current 0.8 A | ||
Operating Modes Constant Voltage | ||
Series PLN-20 | ||
Standards/Approvals UL, TUV, SELV, IEC, EN, CE, CB | ||
Number of Outputs 1 | ||
Configuration Encapsulated | ||
Power Dissipation 19.2W | ||
Primary Type AC-DC | ||
RS - 20W Waterproof (IP64) SMPSU with PFC
External switch mode IP64 rated constant current and constant voltage mode power supplies
High efficiency, long life and high reliability
Designed for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
Built-in constant current limiting circuit with adjustable over current protection
100% full load burn-in test
Short circuit, over-load, over-voltage, over-temperature protection
320mm un-terminated, 2-core 18AWG input lead
320mm un-terminated, 2-core 18AWG output lead
EMC compliance to EN 55015
Power factor correction to EN 61000-3-2
Note
For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
Power derates above 50°C.
MTBF to MIL-HDBK-217F.
Power derates above 50°C.
MTBF to MIL-HDBK-217F.
Approvals
TUV, UL recognised for Canada & US
Standards
TUV EN 61347-1, EN 61347-2-13, UL8750
