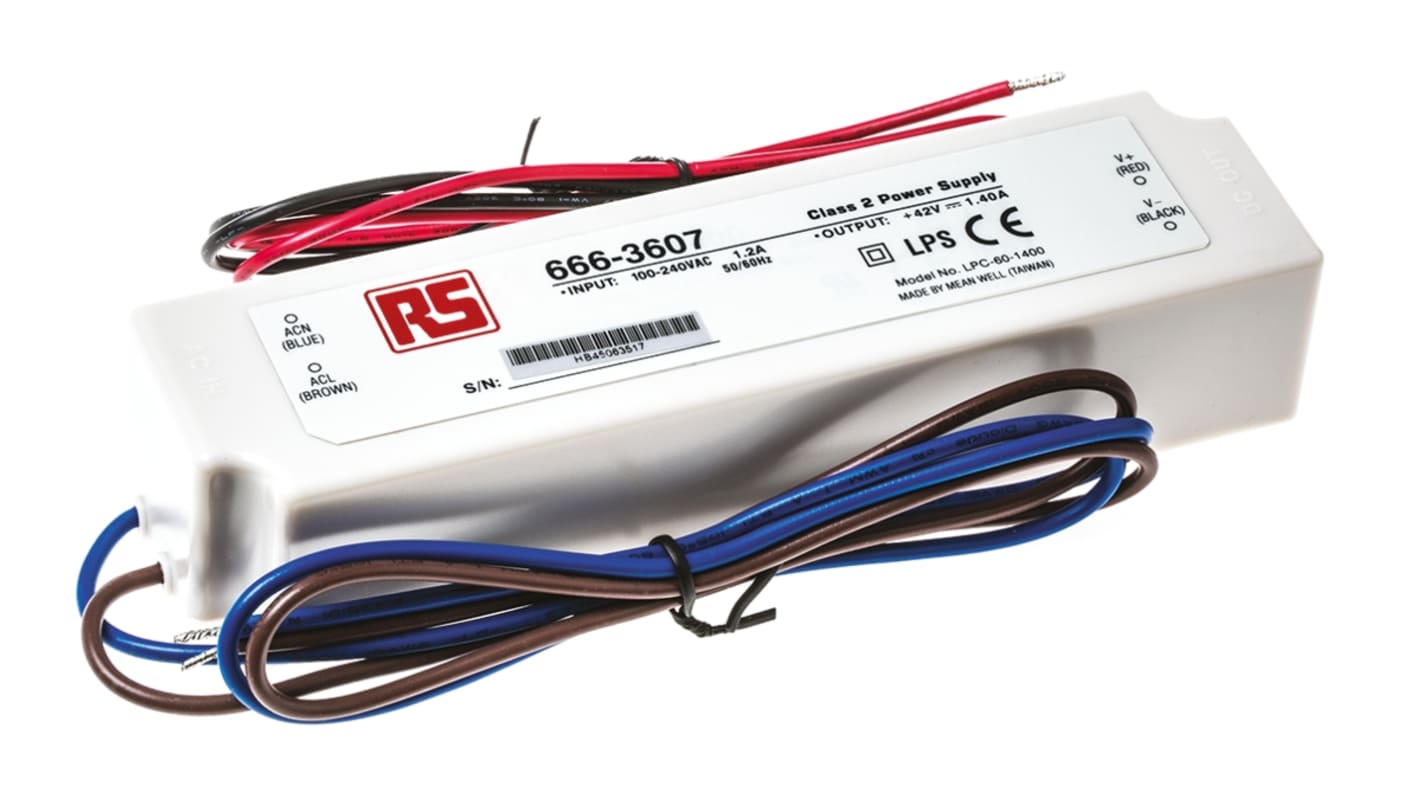

MEAN WELL LED Driver, 9 → 42V Output, 58.8W Output, 1.4A Output, Constant Current

RS庫存編號:: 666-3607
Distrelec 貨號:: 169-97-646
製造零件編號:: LPC-60-1400
製造商:: MEAN WELL

MEAN WELL LED Driver, 9 → 42V Output, 58.8W Output, 1.4A Output, Constant Current

可享批量折扣

小計（1 件）*

TWD455.00

(不含稅)

TWD477.75

訂單超過 $1,300.00 免費送貨

有庫存

54 件準備從其他地點送貨
加上 160 件從 2026年2月04日起發貨
加上 64 件從 2026年4月24日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 - 4	TWD455.00
5 - 9	TWD445.00
10 - 24	TWD431.00
25 +	TWD422.00

* 參考價格

RS庫存編號:: 666-3607
Distrelec 貨號:: 169-97-646
製造零件編號:: LPC-60-1400
製造商:: MEAN WELL

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	MEAN WELL
	Output Voltage	9 → 42V
	Maximum Output Power	58.8W
	Output Current	1.4A
	Dimmable	No
	Input Voltage	127 → 370 V dc, 90 → 264 V ac
	Operation	Constant Current
	LED Driver Type	LED Driver
	AC or DC Input Voltage	ac, dc
	IP Rating	IP67
	Voltage Rating	127 → 370 V dc, 90 → 264 V ac
	Number of Outputs	1

	選取全部
	品牌 MEAN WELL
	Output Voltage 9 → 42V
	Maximum Output Power 58.8W
	Output Current 1.4A
	Dimmable No
	Input Voltage 127 → 370 V dc, 90 → 264 V ac
	Operation Constant Current
	LED Driver Type LED Driver
	AC or DC Input Voltage ac, dc
	IP Rating IP67
	Voltage Rating 127 → 370 V dc, 90 → 264 V ac
	Number of Outputs 1

登入下載 CAD 模型

RS - 60W Waterproof (IP67) SMPSU

External switch mode epoxy encapsulated IP67 rated power supplies
High efficiency, long life and high reliability
Designed for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
Withstands 300Vac surge input for 5 seconds
100% full load burn-in test
Fully regulated output
Short circuit, over-current, over-voltage protection
600mm un-terminated, 2-core 18AWG input lead
600mm un-terminated, 2-core 16AWG output lead
UL1310 Class 2 power unit, pass LPS
EMC compliance to EN 55022 Class B
Harmonic current compliance to EN 61000-3-2,-3
Stk nos 660-0293, 660-0303, 660-0306, 660-0300, 660-0319, and 660-0312 are constant voltage power supplies
Stk nos 660-0316, 666-3607 and 666-3600 are constant current power supplies

Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.

Power derates above 50°C.
MTBF to MIL-HDBK-217F.

Standards

TUV EN 60950-1, UL 1310 Class 2, CAN/CSA C22.2 No. 223-M91 (except for 5 & 48V)

Approvals

UL recognised for Canada & US
