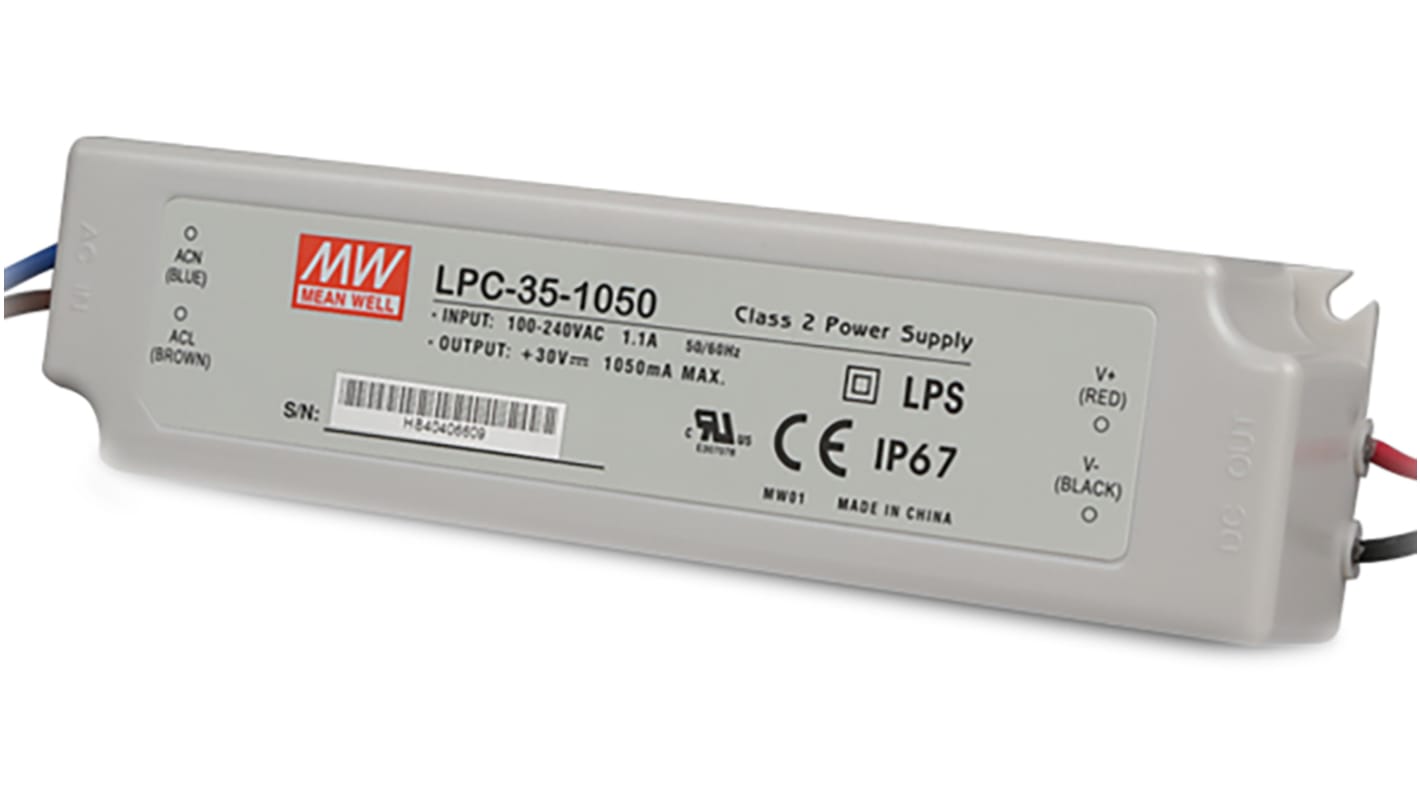

MEAN WELL LED Driver, 9/30 V Output, 31.5 W Output, 1050 mA

RS庫存編號:: 660-0296
Distrelec 貨號:: 169-97-655
製造零件編號:: LPC-35-1050
製造商:: MEAN WELL

MEAN WELL LED Driver, 9/30 V Output, 31.5 W Output, 1050 mA

可享批量折扣

小計（1 件）*

TWD479.00

(不含稅)

TWD502.95

訂單超過 $1,300.00 免費送貨

有庫存

47 件準備從其他地點送貨
加上 57 件從 2026年3月03日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 - 4	TWD479.00
5 - 9	TWD468.00
10 +	TWD457.00

* 參考價格

RS庫存編號:: 660-0296
Distrelec 貨號:: 169-97-655
製造零件編號:: LPC-35-1050
製造商:: MEAN WELL

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	MEAN WELL
	Product Type	LED Driver
	Output Voltage	9/30 V
	Maximum Output Power	31.5W
	Input Voltage	127 → 370 V dc, 90 → 264 V ac
	Mount Type	Panel
	Sub Type	LED Driver
	Terminal Type	Wire
	Input Voltage Type	AC/DC
	IP Rating	IP67
	Driver Current	1050 mA
	Operating Modes	Constant Current
	Series	LPC-35
	Standards/Approvals	CE, EN, UL, LPS, IEC, CB, CSA
	Number of Outputs	1
	Configuration	Enclosed
	Primary Type	AC-DC
	Power Dissipation	31.5W

	選取全部
	品牌 MEAN WELL
	Product Type LED Driver
	Output Voltage 9/30 V
	Maximum Output Power 31.5W
	Input Voltage 127 → 370 V dc, 90 → 264 V ac
	Mount Type Panel
	Sub Type LED Driver
	Terminal Type Wire
	Input Voltage Type AC/DC
	IP Rating IP67
	Driver Current 1050 mA
	Operating Modes Constant Current
	Series LPC-35
	Standards/Approvals CE, EN, UL, LPS, IEC, CB, CSA
	Number of Outputs 1
	Configuration Enclosed
	Primary Type AC-DC
	Power Dissipation 31.5W

登入下載 CAD 模型

RS - 35W Waterproof (IP67) SMPSU

External switch mode epoxy encapsulated IP67 rated power supplies

High efficiency, long life and high reliability

Designed for indoor or outdoor installations

Suitable for LED lighting and moving sign applications

Withstands 300Vac surge input for 5 seconds

100% full load burn-in test

Fully regulated output

Short circuit, over-current, over-voltage protection

600mm un-terminated, 2-core 18AWG input lead

600mm un-terminated, 2-core 16AWG output lead

UL1310 Class 2 power unit, pass LPS

EMC compliance to EN 55022 Class B

Harmonic current compliance to EN 61000-3-2,-3

Stk nos 660-0274, 660-0277, 660-0271, 660-0280, 660-0283 are constant voltage power supplies

Stk nos 660-0287, 660-0296 and 660-0299 are constant current power supplies

Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.

Power derates above 65°C (5Vdc version derates above 55°C).
MTBF to MIL-HDBK-217F.

Standards

TUV EN 60950-1, EN 61347-2-13, UL 1310 Class 2, CAN/CSA C22.2 No. 223-M91
