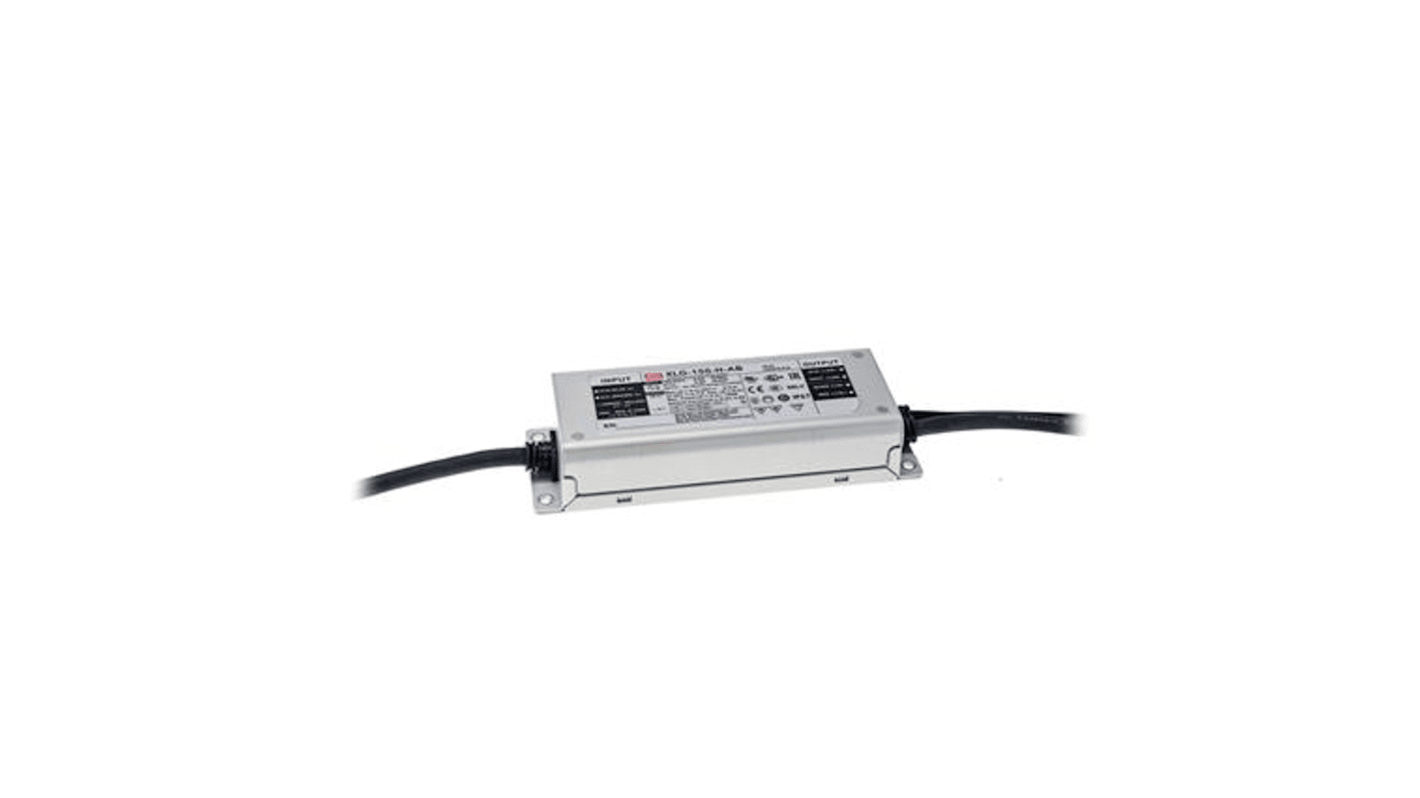

MEAN WELL LED Driver, 107V Output, 150 W Output, 1.4A Potentiometer
- RS庫存編號:
- 216-3025
- Distrelec 貨號:
- 302-30-152
- 製造零件編號:
- XLG-150-M-AB
- 製造商:
- MEAN WELL
可享批量折扣
小計（1 件）*
TWD1,147.00
(不含稅)
TWD1,204.35
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 4 件從 2026年8月31日 起裝運發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | TWD1,147.00 |
| 10 - 24 | TWD1,118.00 |
| 25 - 49 | TWD1,095.00 |
| 50 + | TWD1,074.00 |
* 參考價格
- RS庫存編號:
- 216-3025
- Distrelec 貨號:
- 302-30-152
- 製造零件編號:
- XLG-150-M-AB
- 製造商:
- MEAN WELL
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | MEAN WELL | |
| Output Voltage | 107V | |
| Product Type | LED Driver | |
| Maximum Output Power | 150W | |
| Input Voltage | 100, 305V | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Dimming Operation | Potentiometer | |
| Terminal Type | Wire | |
| Input Voltage Type | AC | |
| IP Rating | IP67 | |
| LED Voltage | 100, 305V ac | |
| Operating Modes | Constant Current | |
| Driver Current | 1.4A | |
| Standards/Approvals | BIS, CB, CCC, CE, EAC, ENEC, SELV, UL | |
| Series | XLG-150 | |
| Number of Outputs | 5 | |
| Configuration | Enclosed | |
| Primary Type | AC-DC | |
| Power Dissipation | 0.5W | |
| 選取全部 | ||
|---|---|---|
品牌 MEAN WELL | ||
Output Voltage 107V | ||
Product Type LED Driver | ||
Maximum Output Power 150W | ||
Input Voltage 100, 305V | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Dimming Operation Potentiometer | ||
Terminal Type Wire | ||
Input Voltage Type AC | ||
IP Rating IP67 | ||
LED Voltage 100, 305V ac | ||
Operating Modes Constant Current | ||
Driver Current 1.4A | ||
Standards/Approvals BIS, CB, CCC, CE, EAC, ENEC, SELV, UL | ||
Series XLG-150 | ||
Number of Outputs 5 | ||
Configuration Enclosed | ||
Primary Type AC-DC | ||
Power Dissipation 0.5W | ||
- COO (Country of Origin):
- CN
The Mean Well XLG-150 series is a 150 W LED AC/DC driver featuring the constant power mode. XLG-150 operates from 100-305 VAC and offers models with different rated current ranging between 700mA and 12500mA. Thanks to the high efficiency up to 93%, with the fanless design , the entire series is able to operate for 40℃∼+ 90℃ case temperature under free air convection.
Metal case with IP67, suitable for outdoor applications
Protection functions: OVP/SCP/OCP/OTP
