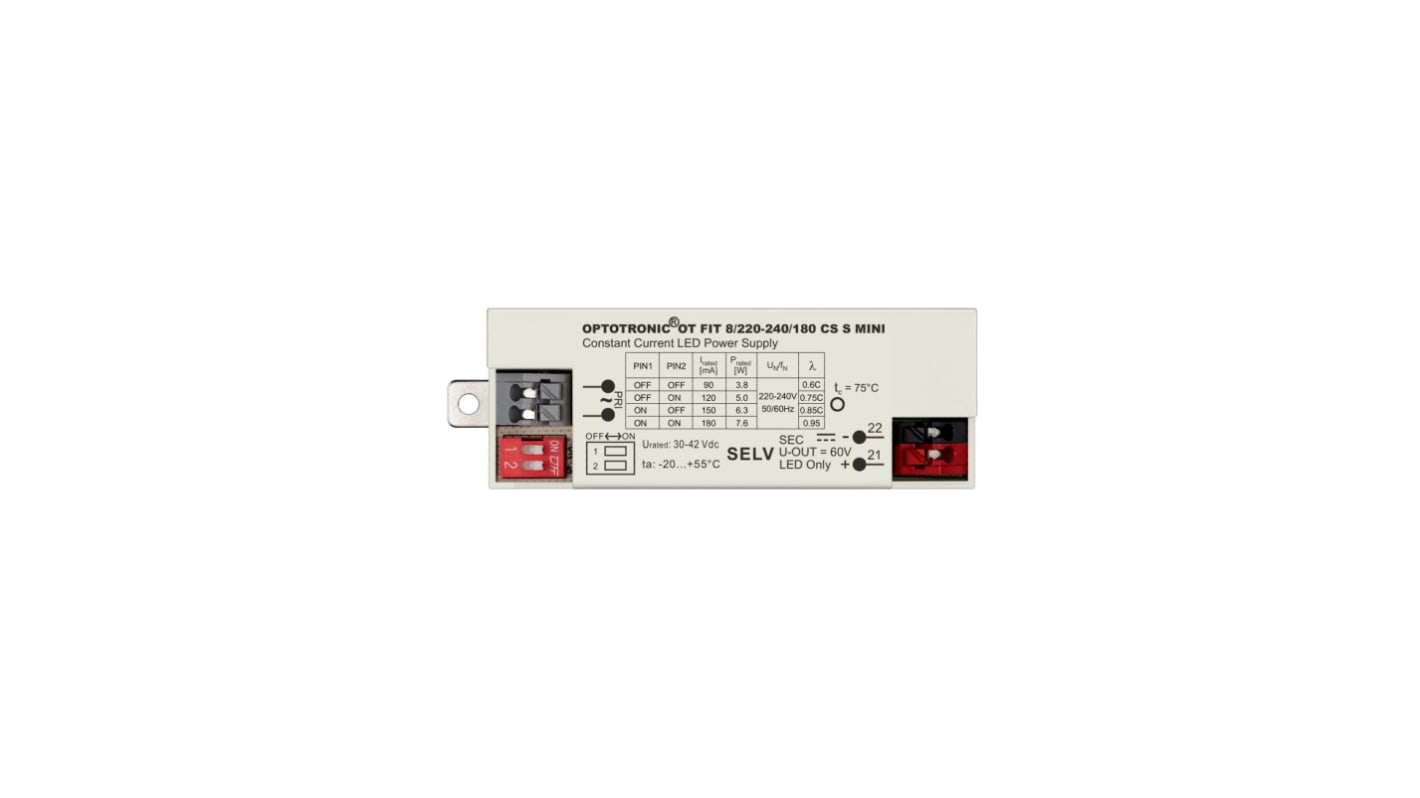

Osram LED Driver, 42V Output, 8 W Output, 180mA
- RS庫存編號:
- 212-2153
- 製造零件編號:
- OT-FIT-8/220-240/180-CS-S-MINI
- 製造商:
- Osram
可享批量折扣
查看批量定價選項小計（1 件）*
TWD402.00
(不含稅)
TWD422.10
(含稅)
訂單超過 $1,300.00 免費送貨
正在逐步停售
- 最終 3 個，準備發貨
單位 | 每單位 |
|---|---|
| 1 - 9 | TWD402.00 |
| 10 - 24 | TWD390.00 |
| 25 - 49 | TWD382.00 |
| 50 - 99 | TWD375.00 |
| 100 + | TWD367.00 |
* 參考價格
- RS庫存編號:
- 212-2153
- 製造零件編號:
- OT-FIT-8/220-240/180-CS-S-MINI
- 製造商:
- Osram
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Osram | |
| Product Type | LED Driver | |
| Output Voltage | 42V | |
| Maximum Output Power | 8W | |
| Input Voltage | 220, 240V | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Input Voltage Type | AC | |
| Terminal Type | Push-in | |
| IP Rating | IP20 | |
| Operating Modes | Constant Current | |
| Driver Current | 180mA | |
| LED Voltage | 198, 264V ac | |
| Series | OT FIT | |
| Number of Outputs | 5 | |
| Standards/Approvals | IEC, RCM, ENEC, CE, CCC | |
| Configuration | Enclosed | |
| Power Dissipation | 1.2W | |
| Primary Type | AC-DC | |
| 選取全部 | ||
|---|---|---|
品牌 Osram | ||
Product Type LED Driver | ||
Output Voltage 42V | ||
Maximum Output Power 8W | ||
Input Voltage 220, 240V | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Input Voltage Type AC | ||
Terminal Type Push-in | ||
IP Rating IP20 | ||
Operating Modes Constant Current | ||
Driver Current 180mA | ||
LED Voltage 198, 264V ac | ||
Series OT FIT | ||
Number of Outputs 5 | ||
Standards/Approvals IEC, RCM, ENEC, CE, CCC | ||
Configuration Enclosed | ||
Power Dissipation 1.2W | ||
Primary Type AC-DC | ||
- COO (Country of Origin):
- CN
The Osram Compact constant current LED driver and Non dimmable. Suitable for indoor SELV installations. Reversible over temperature, overload, short-circuit and open-circuit protection. User flexibility with four different output currents from one driver.
Small housing for flexible luminaire designs Higher quality of light thanks to < 3% output ripple current Operating temperature: up to 60 °C User flexibility with four different output currents from one driver Flexible current selection via DIP switch
