Osram LED Driver, 27V, 51 V Output, 53.6 W Output, 1050mA
- RS庫存編號:
- 179-9525
- 製造零件編號:
- 4052899522558
- 製造商:
- Osram
可享批量折扣
查看批量定價選項小計（1 件）*
TWD996.00
(不含稅)
TWD1,045.80
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 105 件從 2026年6月10日 起發貨
- 加上 20 件從 2026年6月17日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | TWD996.00 |
| 5 - 9 | TWD956.00 |
| 10 - 19 | TWD917.00 |
| 20 + | TWD898.00 |
* 參考價格
- RS庫存編號:
- 179-9525
- 製造零件編號:
- 4052899522558
- 製造商:
- Osram
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Osram | |
| Output Voltage | 27, 51V | |
| Product Type | LED Driver | |
| Maximum Output Power | 53.6W | |
| Input Voltage | 176, 198, 264, 276V ac | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Terminal Type | Push-in | |
| Input Voltage Type | AC/DC | |
| IP Rating | IP20 | |
| Operating Modes | Constant Current | |
| Driver Current | 1050mA | |
| LED Voltage | 240V | |
| Series | OPTOTRONIC | |
| Number of Outputs | 5 | |
| Standards/Approvals | CCC, CE, EL, EN, ENEC, RCM, VDE-EMC | |
| Configuration | Enclosed | |
| Power Dissipation | 7W | |
| Primary Type | DC-DC, AC | |
| 選取全部 | ||
|---|---|---|
品牌 Osram | ||
Output Voltage 27, 51V | ||
Product Type LED Driver | ||
Maximum Output Power 53.6W | ||
Input Voltage 176, 198, 264, 276V ac | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Terminal Type Push-in | ||
Input Voltage Type AC/DC | ||
IP Rating IP20 | ||
Operating Modes Constant Current | ||
Driver Current 1050mA | ||
LED Voltage 240V | ||
Series OPTOTRONIC | ||
Number of Outputs 5 | ||
Standards/Approvals CCC, CE, EL, EN, ENEC, RCM, VDE-EMC | ||
Configuration Enclosed | ||
Power Dissipation 7W | ||
Primary Type DC-DC, AC | ||
- COO (Country of Origin):
- CN

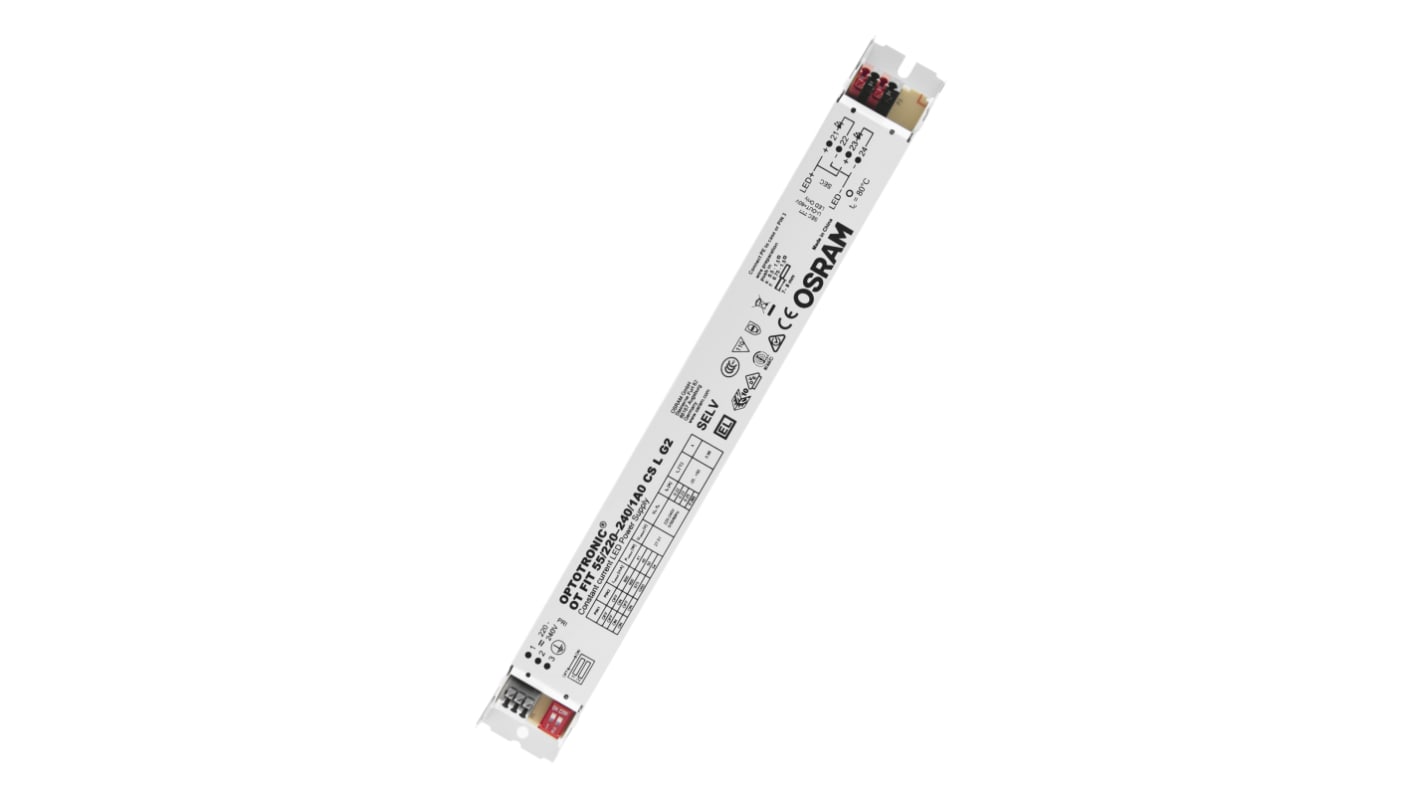

Osram LED Driver
The Osram OPTOTRONIC series LED driver is a non-dimmable constant voltage driver with a linear area constant current. It gives a high quality of light due to low output ripple current.
Features and Benefits
• High efficiency
• Lifetime: up to 100,000h (temperature at T c = 65°C, max. 10% failure rate)
• Line frequency is 50Hz/60Hz
• Maximum output power is 35.7W
• Nominal Supply voltage is 220V to 240V
• Output current is 1.05A, 800mA, 900mA, 975mA
• Output supply voltage is 27V to 51V
• Temperature range at storage is between -25°C and 85°C
Applications
• Installation in emergency lighting systems
• Linear lighting for office, education, industry, storage areas, and retail
• Suitable for luminaires of protection class I
Certifications
• CCC certified
• CE certified
• EL certified
• EN 61347-1, EN 61347-2-13, EN 61000-3-2, EN 62384, EN 60598-2-22, EN 61000-3-3, EN 61547
• ENEC 10
• IP20 rating
• RCM certified
• VDE-EMC certified
