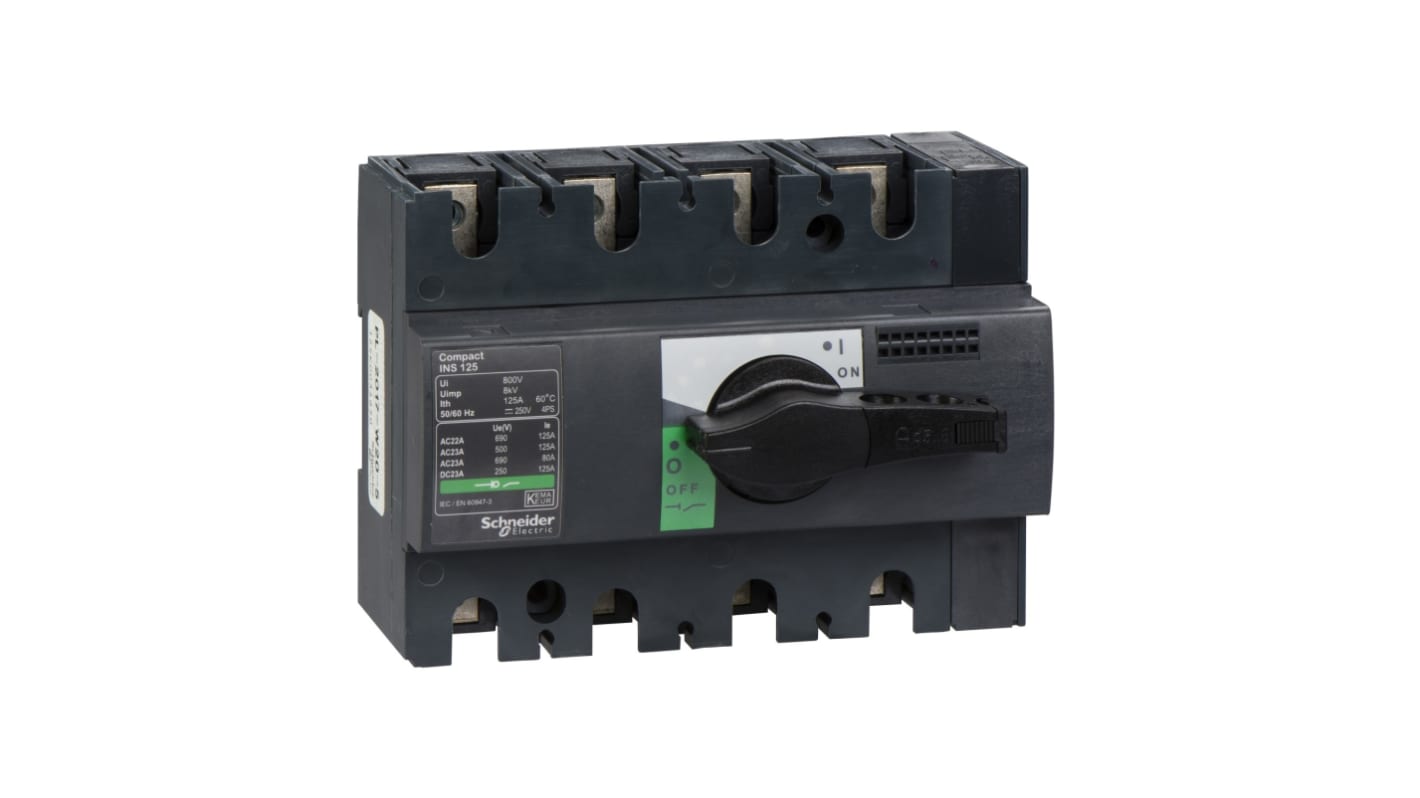

Schneider Electric 4-Pole Surface Isolator Switch -, IP40, 125A, 22 kW
- RS庫存編號:
- 280-8238
- 製造零件編號:
- 28911
- 製造商:
- Schneider Electric
小計（1 件）*
TWD17,890.00
(不含稅)
TWD18,784.50
(含稅)
訂單超過 $1,300.00 免費送貨
製造商存貨
- 準備從 2026年10月08日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD17,890.00 |
* 參考價格
- RS庫存編號:
- 280-8238
- 製造零件編號:
- 28911
- 製造商:
- Schneider Electric
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Schneider Electric | |
| Product Type | Isolator Switch | |
| Number of Poles | 4 | |
| Mount Type | Surface | |
| IP Rating | IP40 | |
| Electrical Phase | 3 | |
| Handle Colour | Black | |
| Series | ComPacT INS | |
| Switching Current | 125A | |
| Terminal Type | Screw | |
| Auxiliary Contacts Available | No | |
| Switching Power | 22kW | |
| Padlock Compatibility | No | |
| Minimum Operating Temperature | -25°C | |
| Switching DC Voltage | 250V dc | |
| Switching AC Voltage | 240V ac | |
| Maximum Operating Temperature | 70°C | |
| Width | 100mm | |
| Standards/Approvals | RoHS, EU | |
| Hazardous Area Certification | No | |
| Depth | 62.5mm | |
| Length | 135mm | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| 選取全部 | ||
|---|---|---|
品牌 Schneider Electric | ||
Product Type Isolator Switch | ||
Number of Poles 4 | ||
Mount Type Surface | ||
IP Rating IP40 | ||
Electrical Phase 3 | ||
Handle Colour Black | ||
Series ComPacT INS | ||
Switching Current 125A | ||
Terminal Type Screw | ||
Auxiliary Contacts Available No | ||
Switching Power 22kW | ||
Padlock Compatibility No | ||
Minimum Operating Temperature -25°C | ||
Switching DC Voltage 250V dc | ||
Switching AC Voltage 240V ac | ||
Maximum Operating Temperature 70°C | ||
Width 100mm | ||
Standards/Approvals RoHS, EU | ||
Hazardous Area Certification No | ||
Depth 62.5mm | ||
Length 135mm | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
- COO (Country of Origin):
- PL
Interpact INS40/160 series switches
Perform isolation and switching with positive contact indication of the electrical distribution circuits.
They are used as inlet switches on the modular distribution board, on the PLC box and cabinet or on the local box for local control of motor circuits, machine tools, etc.
Locking by 3 padlocks in "OFF" position.
Locking in "ON" position possible.
Front or side rotating control as standard.
Extended rotating control maintains isolation ability.
Standards
IEC 947-1 and 947-3, EN 60947-1 and EN 947-3, NFC 79130 and CNOMO
