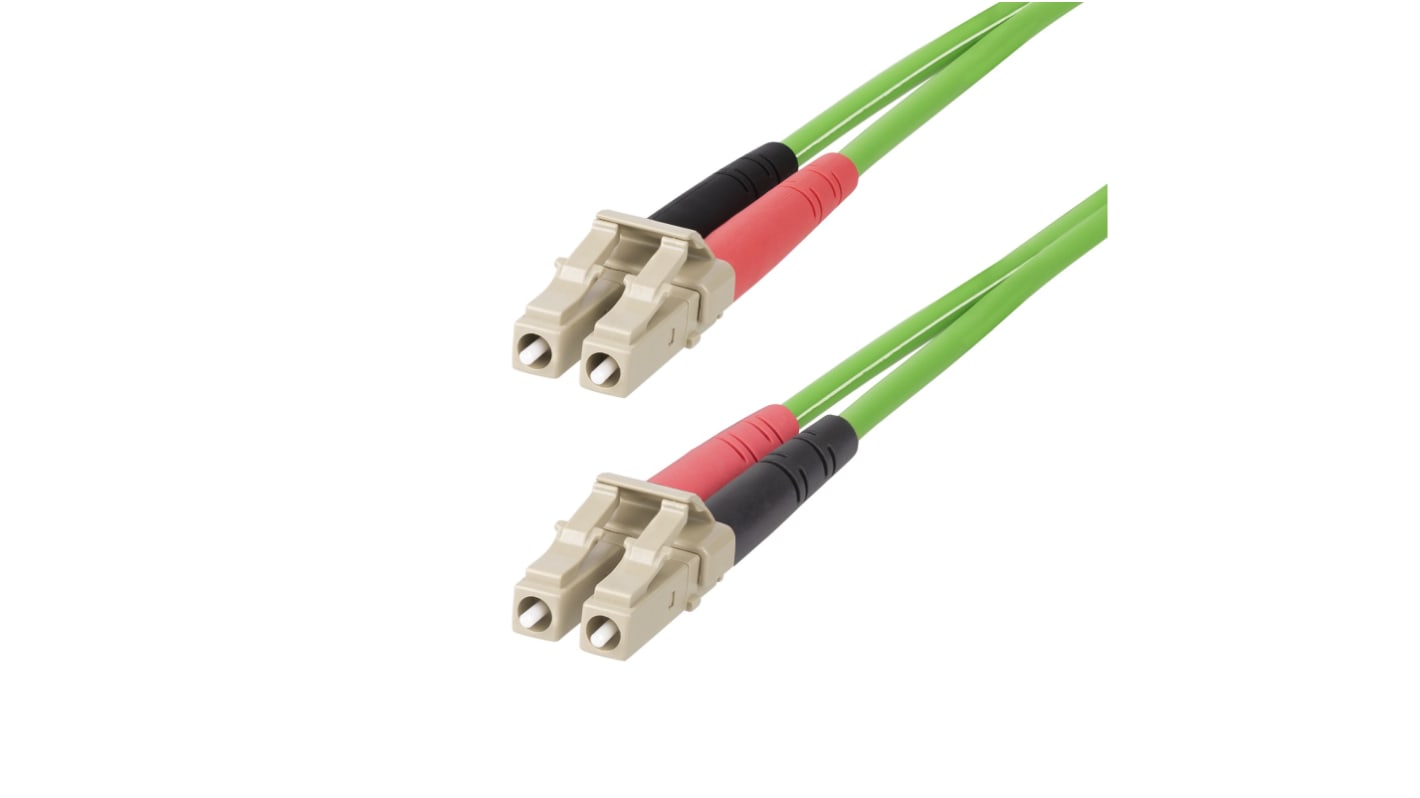

StarTech.com OM5 Multimode Fibre Optic Cable, 125 μm Low Smoke Zero Halogen, Green, 10 m

RS庫存編號:: 287-3362
製造零件編號:: LCLCL-10M-OM5-FIBER
製造商:: StarTech.com

StarTech.com OM5 Multimode Fibre Optic Cable, 125 μm Low Smoke Zero Halogen, Green, 10 m

小計（1 件）*

TWD2,263.00

(不含稅)

TWD2,376.15

訂單超過 $1,300.00 免費送貨

製造商存貨

準備從 2026年11月24日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	TWD2,263.00

* 參考價格

Sponsored

RS庫存編號:: 287-3362
製造零件編號:: LCLCL-10M-OM5-FIBER
製造商:: StarTech.com

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	StarTech.com
	Cable Length	10m
	Product Type	Fibre Optic Cable
	Core Diameter	125μm
	Number of Cores	2
	Jacket Colour	Green
	Sub Type	Multimode
	Minimum Operating Temperature	-20°C
	Fibre Type	OM5
	Maximum Operating Temperature	60°C
	Standards/Approvals	TIA/EIA 568
	Jacket Material	Low Smoke Zero Halogen

	選取全部
	品牌 StarTech.com
	Cable Length 10m
	Product Type Fibre Optic Cable
	Core Diameter 125μm
	Number of Cores 2
	Jacket Colour Green
	Sub Type Multimode
	Minimum Operating Temperature -20°C
	Fibre Type OM5
	Maximum Operating Temperature 60°C
	Standards/Approvals TIA/EIA 568
	Jacket Material Low Smoke Zero Halogen

Datasheet - LCLCL-10M-OM5-FIBER

COO (Country of Origin):: CN

StarTech Fibre Optic Cable, 10m Cable Length, LSZH Jacket - LCLCL-10M-OM5-FIBER

This Fibre optic cable provides duplex multimode connectivity for short-range high-speed networks. It uses OM5 LOMMF construction with LC to LC UPC terminations to support VCSEL and LED light sources across an extended Wavelength range. The cable is sheathed in a low-smoke zero-halogen jacket and is intended for installations where reduced toxic emissions and Compact routing are required.

Features and Benefits:

• 850 to 953nm VCSEL support enables SWDM for greater channel capacity
• 50/125μm core offers multimode transmission for 40G/100G links
• Ceramic ferrules reduce insertion loss and improve alignment
• Bend-insensitive design allows tight routing with 3cm unloaded radius
• Individually tested insertion loss meets TIA/EIA 568 performance

Applications

• Used for 40 Gigabit and 100 Gigabit Ethernet connections
• Suitable for high-density switch and server interconnects
• Used with SFP+/QSFP+/QSFP28 Fibre modules
• Ideal for SANs and Fibre-channel fabric links

What temperature range can it operate within?

It operates between -20°C and 60°C.

What safety characteristics does the jacket provide?

The LSZH jacket emits low smoke and minimal halogen when combusted for safer enclosed-space use.

Which modal bandwidth and attenuation figures apply at 850nm?

Modal bandwidth is 4700MHz·km at 850nm and attenuation is under 2.4dB/km.

How is polarity identified on the cable?

The zipcord design includes colour‑coded connectors to indicate polarity.
