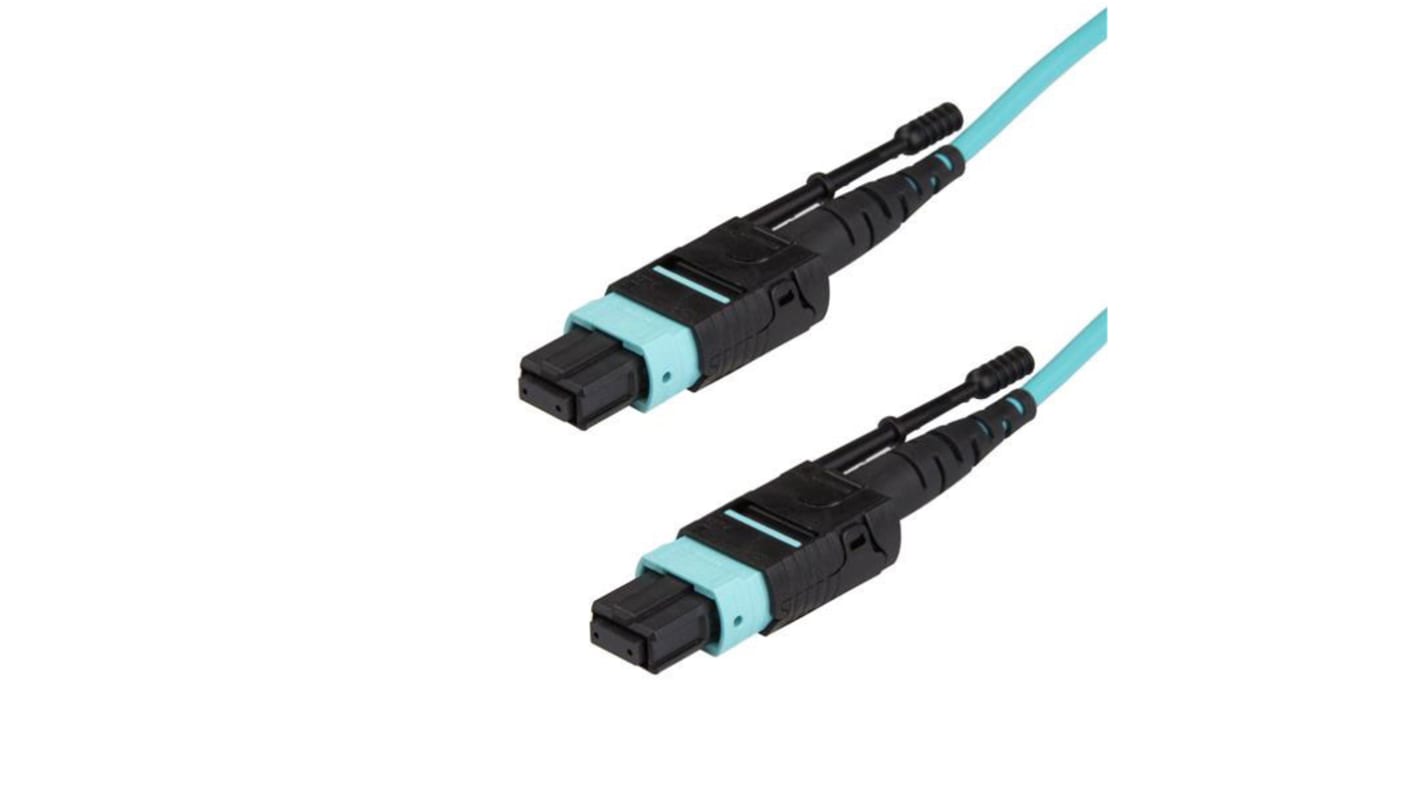

StarTech.com OM3 Fibre Optic Cable, 125 μm, Aqua, 3 m
- RS庫存編號:
- 193-0191
- 製造零件編號:
- MPO12PL3M
- 製造商:
- StarTech.com
可享批量折扣
查看批量定價選項小計（1 件）*
TWD12,815.00
(不含稅)
TWD13,455.75
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 從 2026年12月07日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | TWD12,815.00 |
| 5 + | TWD11,533.00 |
* 參考價格
Sponsored
- RS庫存編號:
- 193-0191
- 製造零件編號:
- MPO12PL3M
- 製造商:
- StarTech.com
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | StarTech.com | |
| Product Type | Fibre Optic Cable | |
| Cable Length | 3m | |
| Core Diameter | 125μm | |
| Number of Cores | 12 | |
| Jacket Colour | Aqua | |
| Fibre Type | OM3 | |
| Standards/Approvals | CE, REACH | |
| Series | MPO | |
| 選取全部 | ||
|---|---|---|
品牌 StarTech.com | ||
Product Type Fibre Optic Cable | ||
Cable Length 3m | ||
Core Diameter 125μm | ||
Number of Cores 12 | ||
Jacket Colour Aqua | ||
Fibre Type OM3 | ||
Standards/Approvals CE, REACH | ||
Series MPO | ||
- COO (Country of Origin):
- CN
StarTech Fibre Optic Cable, 3M Cable Length, Aqua Jacket - MPO12PL3M
This Fibre optic cable provides high-density multimode connectivity for short-range data networks. It links MPO/MTP-equipped devices to support parallel optical systems and data centre layouts where multiple 10Gbps or 40Gbps channels are required. The cable is specified for OM3 multimode performance and is intended for installations requiring a plenum-rated, low-emission jacket.
Features and Benefits:
• 40Gbps throughput enabling high-bandwidth aggregation
• 12-fibre MTP connectors increasing port density
• Individual insertion and return loss testing ensuring signal integrity
• OFNP plenum jacket reducing smoke and toxic emissions
• 50/125μm core/cladding immune to electromagnetic interference
• 12-fibre MTP connectors increasing port density
• Individual insertion and return loss testing ensuring signal integrity
• OFNP plenum jacket reducing smoke and toxic emissions
• 50/125μm core/cladding immune to electromagnetic interference
Applications
• Suitable for connecting 40Gbps MPO/MTP switches
• Ideal for breaking out 40Gbps to 6 x 10Gbps LC channels
• Used with QSFP+ transceivers in parallel optics
• Can be used for SAN and server high-density links
• Ideal for breaking out 40Gbps to 6 x 10Gbps LC channels
• Used with QSFP+ transceivers in parallel optics
• Can be used for SAN and server high-density links
What Fibre classification does it use?
It uses OM3 multimode fibres with a modal bandwidth of 2000MHz·km at 850nm.
How are connector losses controlled?
MTP/MPO connectors have PC-polished endfaces and insertion loss maintained below 0.5dB.
Is the cable suitable for in-wall or plenum routes?
The cable jacket is OFNP plenum rated, permitting plenum and in-wall installation.
What test documentation is supplied?
Each cable includes a full test report showing individual insertion and return loss measurements.
