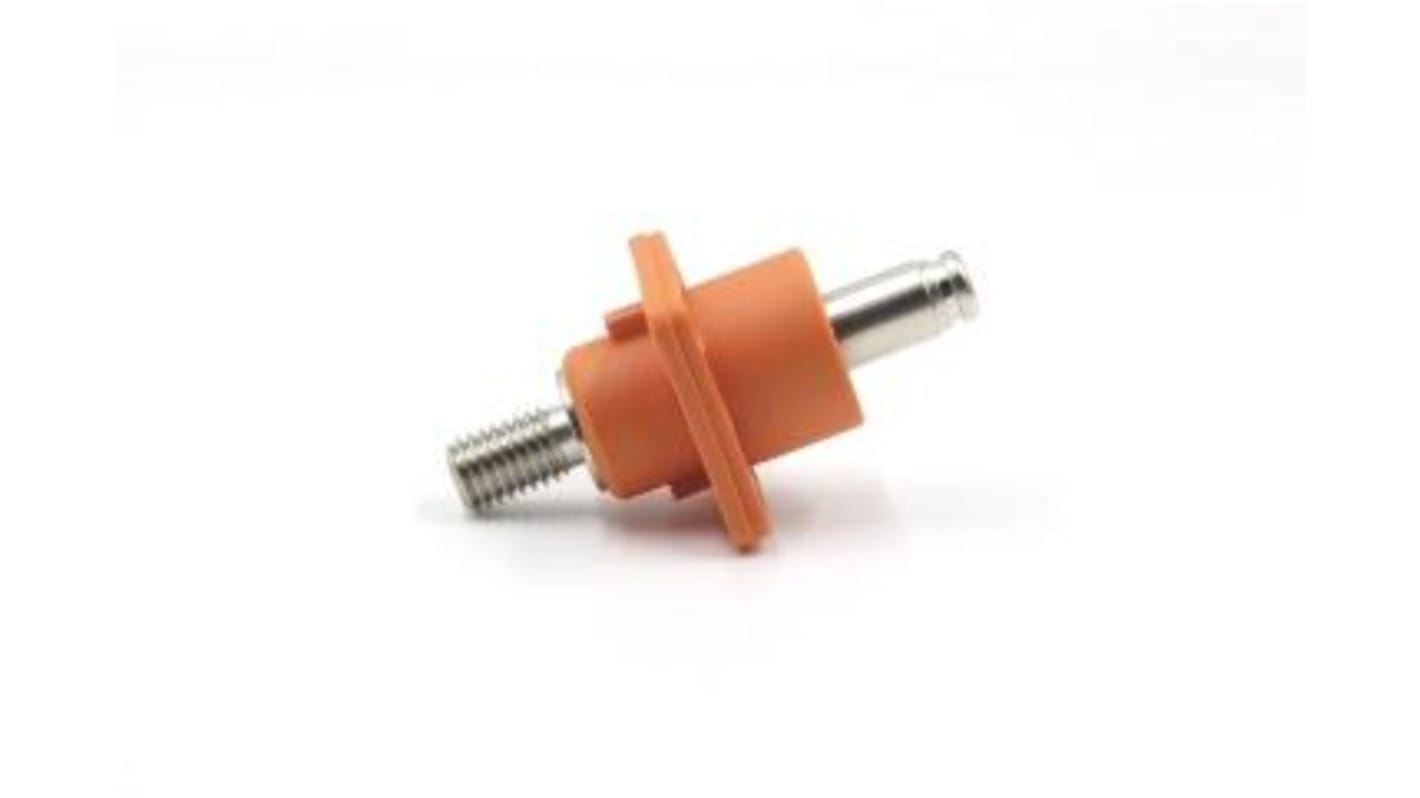

Amphenol Industrial, RL9036 Receptacle EV Connector Male, 70A
- RS庫存編號:
- 250-3787
- 製造零件編號:
- RL9036-101-F1OR
- 製造商:
- Amphenol Industrial
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 件）*
TWD330.00
(不含稅)
TWD346.50
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 317 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | TWD330.00 |
| 10 - 49 | TWD321.00 |
| 50 - 99 | TWD311.00 |
| 100 - 199 | TWD302.00 |
| 200 + | TWD295.00 |
* 參考價格
- RS庫存編號:
- 250-3787
- 製造零件編號:
- RL9036-101-F1OR
- 製造商:
- Amphenol Industrial
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Amphenol Industrial | |
| Product Type | EV Connector | |
| Series | RL9036 | |
| Connector Type | Receptacle | |
| Current | 70A | |
| Number of Rows | 1 | |
| Number of Contacts | 1 | |
| Wire Size | 10mm² | |
| Operating Voltage | 1kV | |
| Application | Electric Vehicles | |
| Connector Gender | Male | |
| Latch Type | Thumb Actuated | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Screw | |
| Contact Gender | Male | |
| Orientation | Straight | |
| Maximum Operating Temperature | 125°C | |
| Depth | 43.9mm | |
| Height | 21mm | |
| Width | 21mm | |
| Standards/Approvals | UL, RoHS | |
| Better World Product | Yes | |
| Colour | Orange | |
| Better World Claim | Renewable Energy Solution | |
| IP Rating | IP40 | |
| Mount Type | Panel | |
| Pin Diameter | 3.6mm | |
| 選取全部 | ||
|---|---|---|
品牌 Amphenol Industrial | ||
Product Type EV Connector | ||
Series RL9036 | ||
Connector Type Receptacle | ||
Current 70A | ||
Number of Rows 1 | ||
Number of Contacts 1 | ||
Wire Size 10mm² | ||
Operating Voltage 1kV | ||
Application Electric Vehicles | ||
Connector Gender Male | ||
Latch Type Thumb Actuated | ||
Minimum Operating Temperature -40°C | ||
Termination Type Screw | ||
Contact Gender Male | ||
Orientation Straight | ||
Maximum Operating Temperature 125°C | ||
Depth 43.9mm | ||
Height 21mm | ||
Width 21mm | ||
Standards/Approvals UL, RoHS | ||
Better World Product Yes | ||
Colour Orange | ||
Better World Claim Renewable Energy Solution | ||
IP Rating IP40 | ||
Mount Type Panel | ||
Pin Diameter 3.6mm | ||
- COO (Country of Origin):
- CN
The Amphenol Industrial Radlok is a 1000V low cost tool free power interconnect utilizing radsok technology. Radlok is designed for energy storage, battery and device power interconnection. Mating pins and receptacies available for bus bar and panel mount configuration with lug, thread or mating radlok pin terminations.
Rated voltage of 1000V
Rated current of 70A
IP40 mated class
Screw termination
Lower temperature is -40
Upper temperature is 125
No shielding
