Amphenol Industrial, PowerLok Receptacle EV Connector Male, 200A
- RS庫存編號:
- 239-0228
- 製造零件編號:
- PL00Y-201-10M8
- 製造商:
- Amphenol Industrial

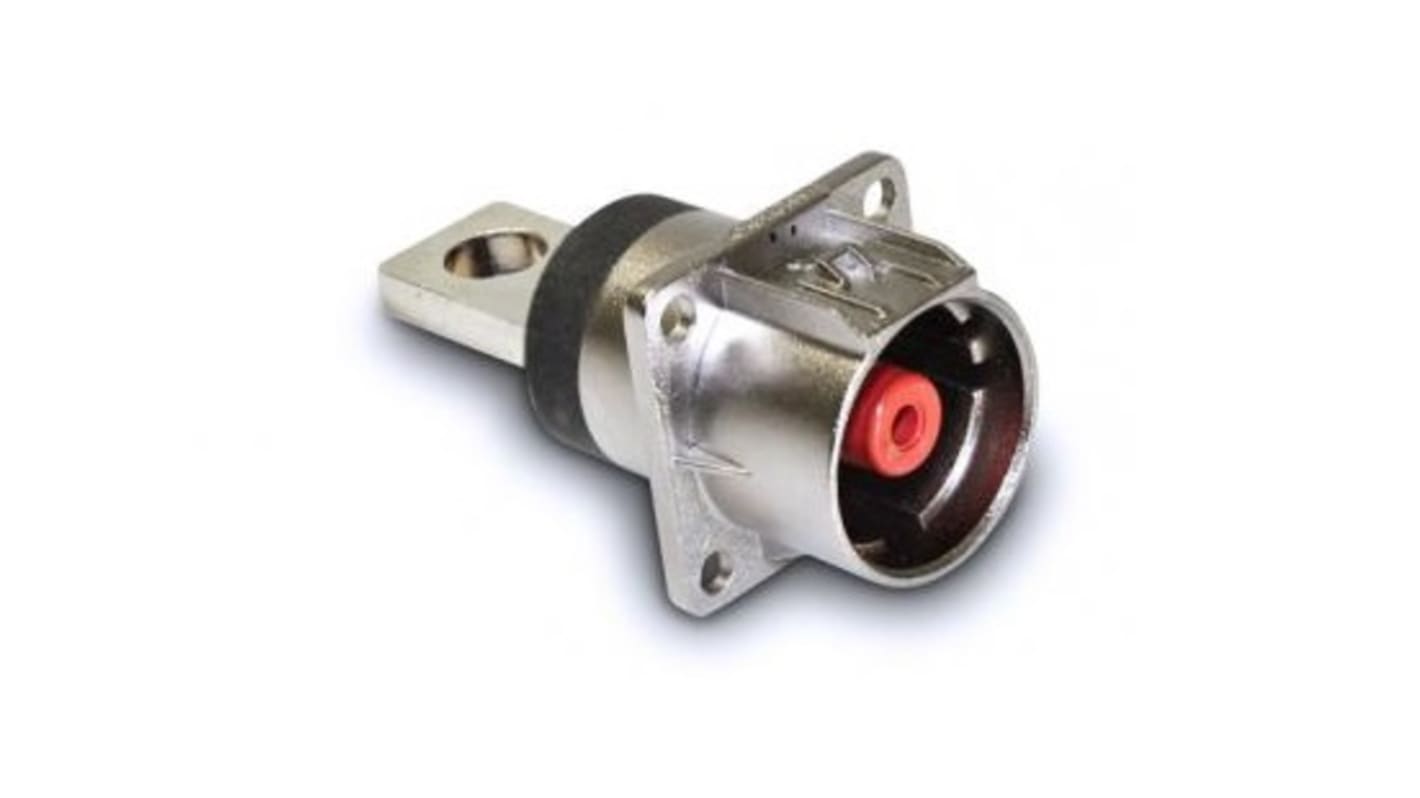

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 件）*
TWD972.00
(不含稅)
TWD1,020.60
(含稅)
庫存資訊目前無法存取 - 請稍後再回來查看
單位 | 每單位 |
|---|---|
| 1 - 4 | TWD972.00 |
| 5 + | TWD948.00 |
* 參考價格
Better World
我們的 Better World 產品系列可讓您輕鬆選擇值得信賴的環保產品。 點擊此處了解更多。
- RS庫存編號:
- 239-0228
- 製造零件編號:
- PL00Y-201-10M8
- 製造商:
- Amphenol Industrial
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Amphenol Industrial | |
| Product Type | EV Connector | |
| Series | PowerLok | |
| Current | 200A | |
| Connector Type | Receptacle | |
| Operating Voltage | 1000V | |
| Minimum Operating Temperature | -40°C | |
| Connector Gender | Male | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Mount Type | Through Hole | |
| IP Rating | IP67 | |
| Better World Claim | Renewable Energy Solution | |
| Colour | Black | |
| Better World Product | Yes | |
| Pin Diameter | 14mm | |
| For Use With | Receptacle | |
| 選取全部 | ||
|---|---|---|
品牌 Amphenol Industrial | ||
Product Type EV Connector | ||
Series PowerLok | ||
Current 200A | ||
Connector Type Receptacle | ||
Operating Voltage 1000V | ||
Minimum Operating Temperature -40°C | ||
Connector Gender Male | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Mount Type Through Hole | ||
IP Rating IP67 | ||
Better World Claim Renewable Energy Solution | ||
Colour Black | ||
Better World Product Yes | ||
Pin Diameter 14mm | ||
For Use With Receptacle | ||
The Amphenol Industrial powerlok series single way receptacle with current rating of 200 A and rated voltage of 1000 V. It is a compact, metal-shell interconnect solution made for electric and hybrid transportation technologies. Equipped with automatic secondary lock, HVIL contacts, shielding and several mechanical coding options which offers maximum safety.
Screw hole mounting
Comes in black colour
Single way male receptacle, Y-coded
Contact diameter 14 mm
High voltage interlock loop
Operating temperature of -40°C to +125°C
