Pilz 400 Series Emergency Stop Push Button, 55 mm Cutout, 1 NO
- RS庫存編號:
- 313-669
- 製造零件編號:
- 400511
- 製造商:
- Pilz
小計（1 件）*
TWD2,891.00
(不含稅)
TWD3,035.55
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 2 件從 2027年1月05日 起裝運發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD2,891.00 |
* 參考價格
- RS庫存編號:
- 313-669
- 製造零件編號:
- 400511
- 製造商:
- Pilz
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Pilz | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 55mm | |
| Contact Configuration | 1 NO | |
| Housing Material | Silver Nickel Alloy | |
| Series | 400 | |
| Illuminated | No | |
| Colour | Yellow | |
| Terminal Type | Screw | |
| Number of Auxiliary Contacts | 3 | |
| Contact Current | 1mA | |
| Depth | 41.5mm | |
| Hazardous Area Certification | EN, IEC | |
| Standards/Approvals | 2011/65/EU, TÜV, EN 60947-5-1, 2015/863/EU, cULus Listed | |
| Head Diameter | 55mm | |
| Length | 43.6mm | |
| Width | 45.3mm | |
| 選取全部 | ||
|---|---|---|
品牌 Pilz | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 55mm | ||
Contact Configuration 1 NO | ||
Housing Material Silver Nickel Alloy | ||
Series 400 | ||
Illuminated No | ||
Colour Yellow | ||
Terminal Type Screw | ||
Number of Auxiliary Contacts 3 | ||
Contact Current 1mA | ||
Depth 41.5mm | ||
Hazardous Area Certification EN, IEC | ||
Standards/Approvals 2011/65/EU, TÜV, EN 60947-5-1, 2015/863/EU, cULus Listed | ||
Head Diameter 55mm | ||
Length 43.6mm | ||
Width 45.3mm | ||
豁免
- COO (Country of Origin):
- DE

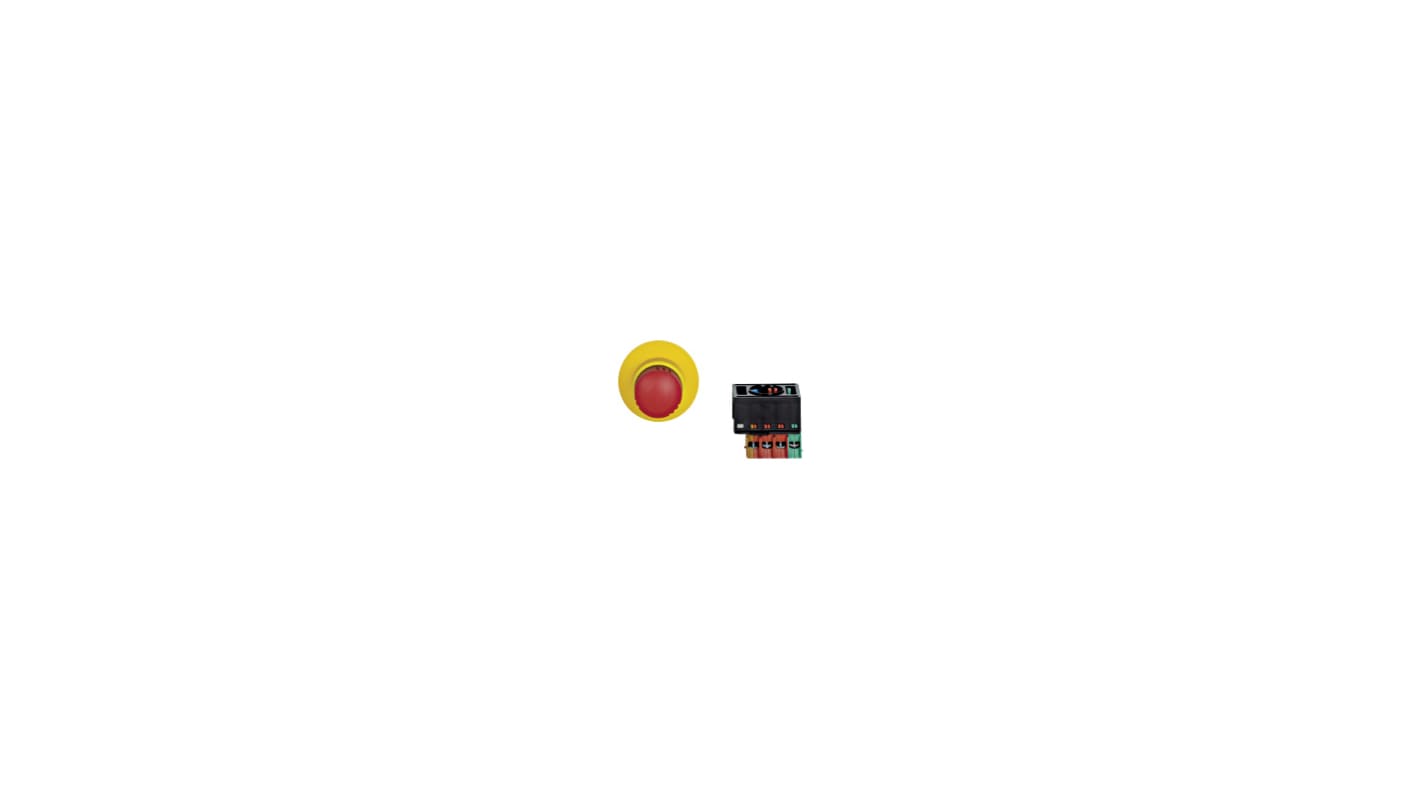

The Pilz Contact Block Set consists of an E-STOP pushbutton with a contact block featuring 2 N/C and 1 N/O terminals with screw-type connections. It includes a switch cap and complies with the EN 60947-5-1 standard. The E-STOP uses AgNi contact material and operates reliably in ambient temperatures ranging from -30 to 70 °C.
cULus listed
Minimum contact current is 1 mA
RoHS compliant
