Pilz 400 Series Illuminated Emergency Stop Push Button, 55 mm Cutout, DPST
- RS庫存編號:
- 313-641
- 製造零件編號:
- 400436
- 製造商:
- Pilz
小計（1 件）*
TWD5,295.00
(不含稅)
TWD5,559.75
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 2 件準備從其他地點送貨
- 加上 4 件從 2026年10月27日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD5,295.00 |
* 參考價格
- RS庫存編號:
- 313-641
- 製造零件編號:
- 400436
- 製造商:
- Pilz
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Pilz | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 55mm | |
| Contact Configuration | DPST | |
| Housing Material | Silver Nickel Alloy | |
| Series | 400 | |
| Illuminated | Yes | |
| Colour | Yellow | |
| Terminal Type | Screw | |
| Contact Current | 1mA | |
| Contact AC Voltage | 12V ac | |
| Number of Auxiliary Contacts | 2 | |
| Contact DC Voltage | 12V dc | |
| Depth | 100mm | |
| Head Diameter | 55mm | |
| Hazardous Area Certification | EN60947-5-1, CE | |
| Standards/Approvals | EN 60947-5-1, CE, 2015/863/EU, 2011/65/EU | |
| Width | 55mm | |
| 選取全部 | ||
|---|---|---|
品牌 Pilz | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 55mm | ||
Contact Configuration DPST | ||
Housing Material Silver Nickel Alloy | ||
Series 400 | ||
Illuminated Yes | ||
Colour Yellow | ||
Terminal Type Screw | ||
Contact Current 1mA | ||
Contact AC Voltage 12V ac | ||
Number of Auxiliary Contacts 2 | ||
Contact DC Voltage 12V dc | ||
Depth 100mm | ||
Head Diameter 55mm | ||
Hazardous Area Certification EN60947-5-1, CE | ||
Standards/Approvals EN 60947-5-1, CE, 2015/863/EU, 2011/65/EU | ||
Width 55mm | ||
豁免
- COO (Country of Origin):
- DE

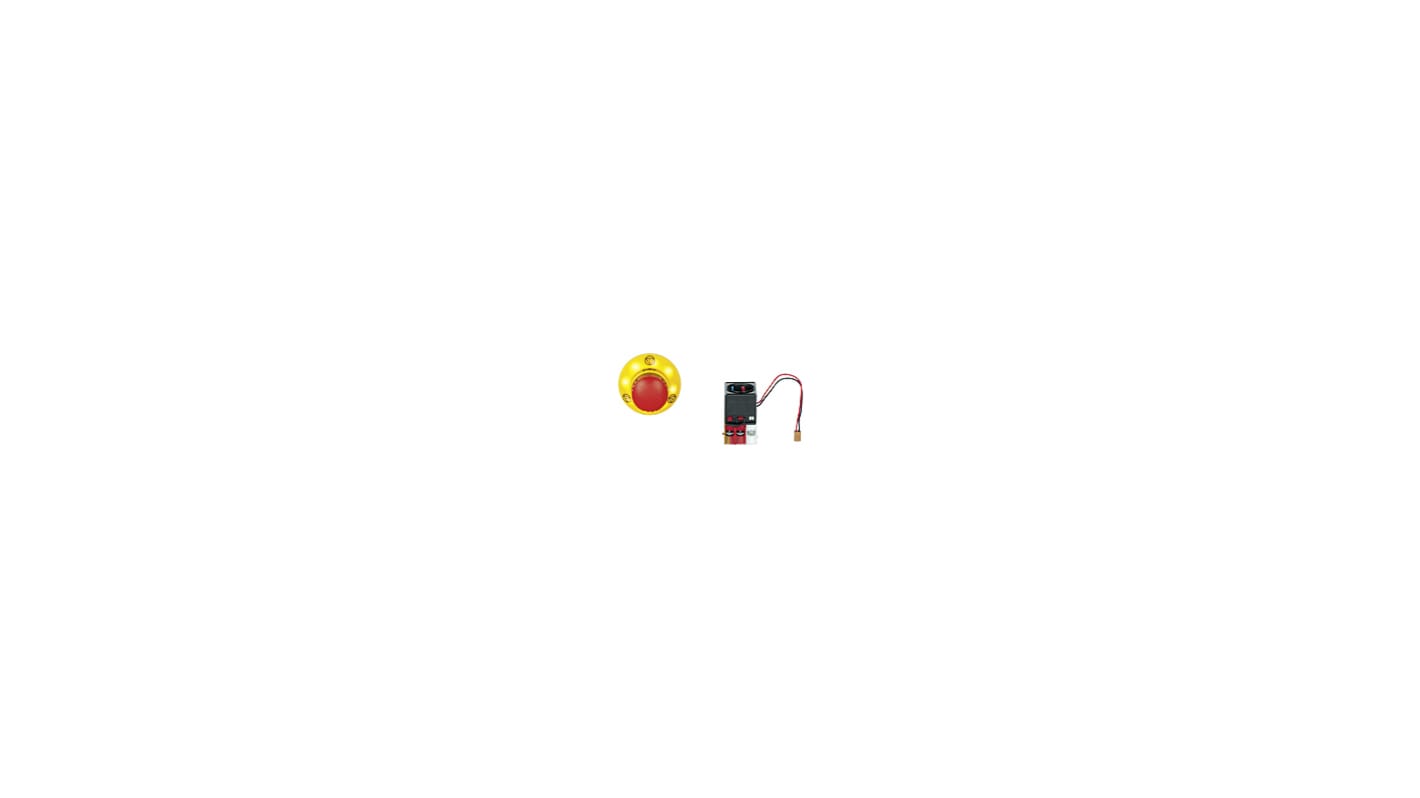

The Pilz Contact Block Set consists of an illuminated E-STOP pushbutton featuring an E-STOP symbol and logo, along with a contact block with monitoring, 2 N/C contacts, and screw-type terminals. It includes a switch cap and complies with the EN 60947-5-1 standard. The E-STOP uses AgNi contact material and is designed to operate in ambient temperatures ranging from -25 to 55 °C.
CE listed
Minimum contact current is 1 mA
RoHS compliant
