Pilz 400 Series Turn to Release Illuminated Emergency Stop Push Button
- RS庫存編號:
- 313-653
- 製造零件編號:
- 400460
- 製造商:
- Pilz
暫時無法供應
我們不知道此物品是否會到貨，因為製造商正在對其逐步停產。
- RS庫存編號:
- 313-653
- 製造零件編號:
- 400460
- 製造商:
- Pilz
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Pilz | |
| Product Type | Emergency Stop Push Button | |
| Push Button Actuation | Turn to Release | |
| Housing Material | Silver Nickel Alloy | |
| Illuminated | Yes | |
| Series | 400 | |
| Colour | Red, Yellow | |
| Terminal Type | Spring Loaded | |
| Contact DC Voltage | 24V dc | |
| Contact Current | 1A | |
| Number of Auxiliary Contacts | 2 | |
| Depth | 86.4mm | |
| Length | 65mm | |
| Standards/Approvals | EN 60947-5-5, UKCA, 2015/863/EU, CE, 2011/65/EU, TÜV, EN 60947-5-1 | |
| Hazardous Area Certification | EN, IEC | |
| Width | 65mm | |
| 選取全部 | ||
|---|---|---|
品牌 Pilz | ||
Product Type Emergency Stop Push Button | ||
Push Button Actuation Turn to Release | ||
Housing Material Silver Nickel Alloy | ||
Illuminated Yes | ||
Series 400 | ||
Colour Red, Yellow | ||
Terminal Type Spring Loaded | ||
Contact DC Voltage 24V dc | ||
Contact Current 1A | ||
Number of Auxiliary Contacts 2 | ||
Depth 86.4mm | ||
Length 65mm | ||
Standards/Approvals EN 60947-5-5, UKCA, 2015/863/EU, CE, 2011/65/EU, TÜV, EN 60947-5-1 | ||
Hazardous Area Certification EN, IEC | ||
Width 65mm | ||
豁免
- COO (Country of Origin):
- DE

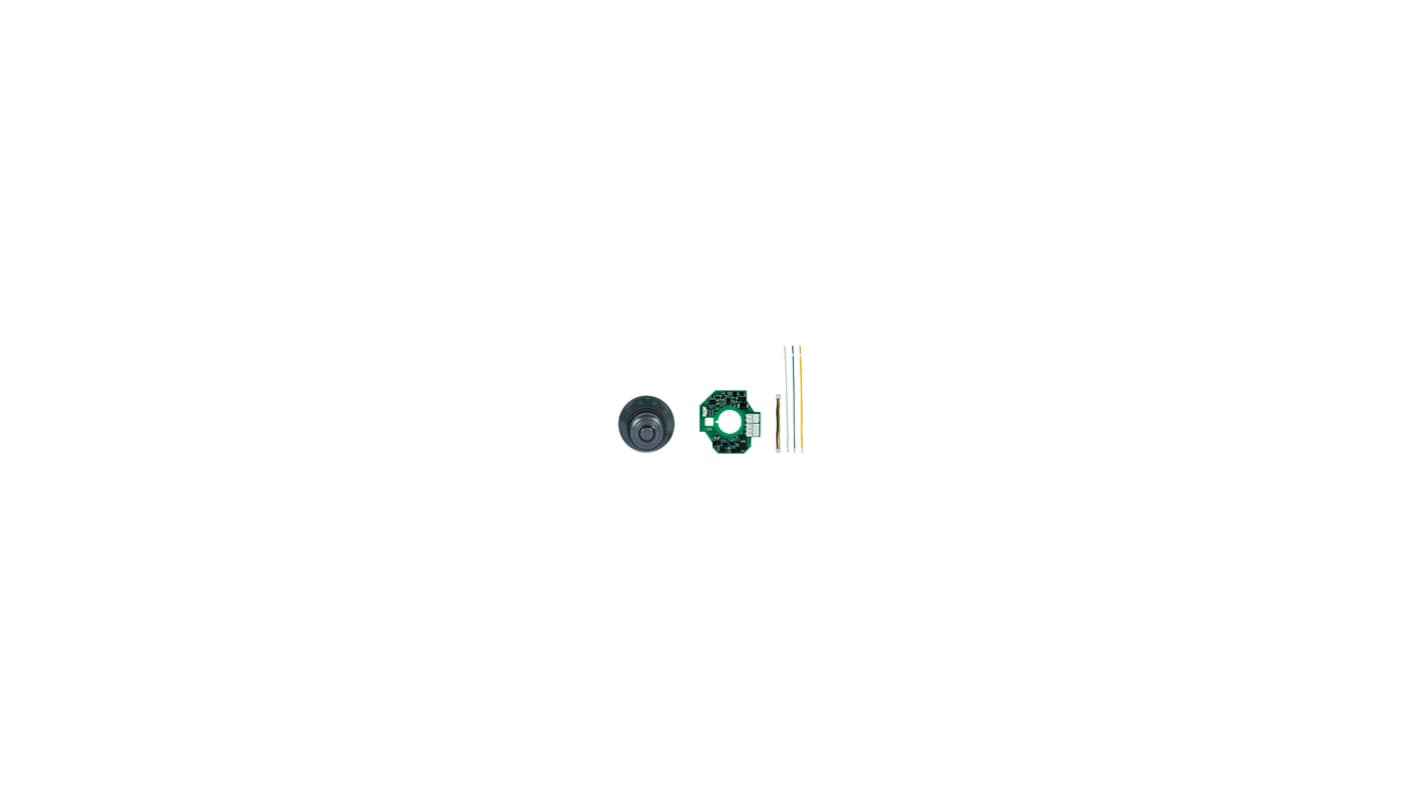

The Pilz Actuator set consists of an E-STOP pushbutton with an activatable or deactivatable flashing function, without a logo or E-STOP symbol. It includes a contact block with dropout protection in compliance with EN 60947-5-1 and EN 60947-5-5, along with an LED safety module PCB. The setup features 2 N/C contacts and utilizes quick-connect technology.
CE listed
LED lamp
Spring loaded terminal
RoHS compliant
