Festo, 300kg 400 mm, 8022576 400mm/s
- RS庫存編號:
- 202-9670
- 製造零件編號:
- ESBF-BS-40-400-5P
- 製造商:
- Festo
小計（1 件）*
TWD46,924.00
(不含稅)
TWD49,270.20
(含稅)
訂單超過 $1,300.00 免費送貨
製造商存貨
- 準備從 2026年5月26日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD46,924.00 |
* 參考價格
- RS庫存編號:
- 202-9670
- 製造零件編號:
- ESBF-BS-40-400-5P
- 製造商:
- Festo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Festo | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 400mm | |
| Maximum Load | 300kg | |
| Maximum Speed | 400mm/s | |
| Series | ESBF | |
| Motor Technology | Stepper Motor, Servo Motor | |
| Duty Cycle | 100% | |
| Maximum Force | 130N | |
| IP Rating | IP40 | |
| Overall Length Closed | 40mm | |
| Spindle Type | Ball Screw | |
| Piston Rod Thread | M12 x 1.25 | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| 選取全部 | ||
|---|---|---|
品牌 Festo | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 400mm | ||
Maximum Load 300kg | ||
Maximum Speed 400mm/s | ||
Series ESBF | ||
Motor Technology Stepper Motor, Servo Motor | ||
Duty Cycle 100% | ||
Maximum Force 130N | ||
IP Rating IP40 | ||
Overall Length Closed 40mm | ||
Spindle Type Ball Screw | ||
Piston Rod Thread M12 x 1.25 | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE

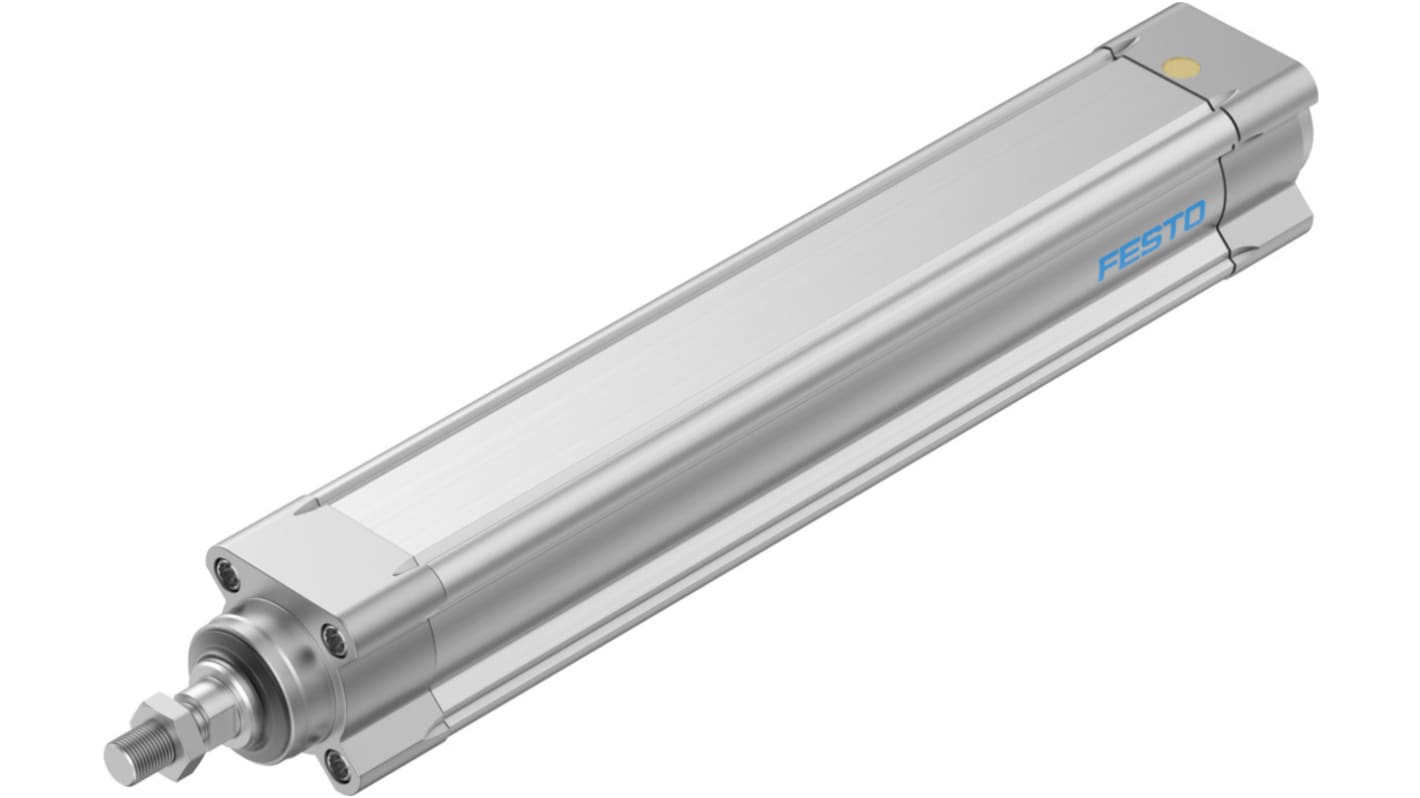

Festo ESBF Series Electric Linear Actuator, IP40, 100% Duty Cycle - ESBF-BS-40-400-5P, Numeric Part Number:8022576
This electric linear actuator provides precision motion control for various applications and is a critical element in automation systems, offering efficient actuation solutions. Its robust build and high-performance features make it suitable for use in the electronics and mechanical sectors, thereby enhancing productivity and dependability.
Features & Benefits
• Maximum stroke length of 400mm
• High repetition accuracy of ±0.01mm
• Versatile due to optional mounting positions
• Stepper motor design ensures precise motion control
• Corrosion-resistant materials enhance durability
• Ball screw mechanism enables efficient power transmission
Applications
• Ideal for industrial automation requiring precise positioning
• Suitable for assembly lines with a need for consistent actuation
• Used in robotics for reliable movement
• Applied in machine tools for effective part manipulation
• Employed in packaging machines for efficient handling tasks
What steps should be followed for installation?
Secure the actuator using the female threads and ensure proper alignment following the technical guidelines.
Can it operate under varying environmental conditions?
Yes, it functions effectively within a temperature range of 0 to 60°C and can handle 0 to 95% relative humidity.
How is the actuator's position detected?
Position detection is managed through a proximity switch, allowing accurate feedback during operation.
What maintenance is required to ensure optimal performance?
Regular checks and lubrication of the moving parts are recommended to maintain performance and extend its operational life.
